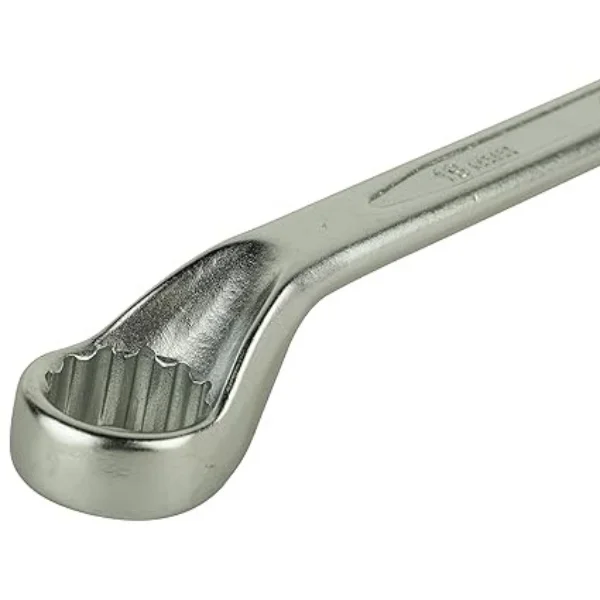

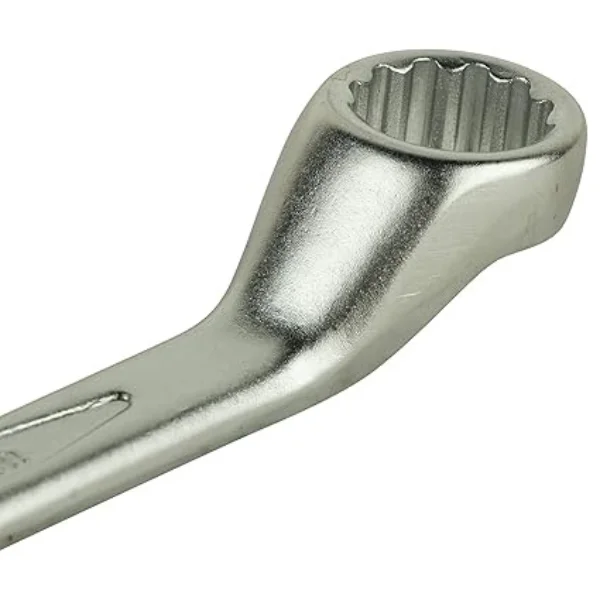

STANLEY 70-387E SHAL Offset Bi-HX Ring CRV Spanner 18x19mm - Pan India Supply

STANLEY 70-387E Application Context & Use Cases

This 18x19mm offset ring spanner is typically deployed in:

• Automotive service workshops (suspension, engine mounting, gearbox assemblies)
• Industrial plant maintenance
• Fabrication and structural assembly
• EPC mechanical installation sites
• Institutional workshop toolkits
• Heavy equipment service bays

The offset ring geometry allows access where flat spanners cannot operate effectively due to vertical obstruction.
Industrial Maintenance Context
In plant environments, 18mm and 19mm fasteners are commonly used on:

• Pump housings
• Motor base frames
• Compressor brackets
• Structural supports
• Equipment panel mounting bolts

The closed-ring Bi-HX profile reduces slippage under high torque conditions compared to open-ended tools.

Selection Guidance (How to Choose Correctly)

Before ordering, confirm:

1. Fastener head size is exactly 18mm or 19mm.
2. Application requires ring-end torque.
3. Access constraints justify offset design.
4. Fastener type is hexagonal (not spline or Torx).
5. Clearance allows ring seating depth.

When Offset Is Required
Offset ring spanners are preferred when:

• Fastener is positioned near a surface plane.
• Nut projection height is minimal.
• Obstruction prevents flat-plane rotation.

If the bolt head is fully exposed with lateral clearance, a combination spanner may suffice.

Capacity / Calculation Example

Torque Application Logic
For M12 and M14 fasteners (commonly paired with 18mm/19mm heads):

• Recommended torque for M12 Grade 8.8: approx. 80–100 Nm
• Recommended torque for M14 Grade 8.8: approx. 130–150 Nm

The closed Bi-HX ring distributes force evenly across the fastener flats, reducing rounding risk during torque application.
When applying torque:
Torque (Nm) = Force (N) × Lever Arm Length (m)
Example:
If 250N force is applied on a 0.25m lever:
250 × 0.25 = 62.5 Nm
This demonstrates why correct spanner engagement is critical for controlled tightening.

Failure Conditions & Misuse Risks

Improper use can lead to:

• Fastener rounding
• Tool deformation
• Personal injury due to slippage
• Micro-cracking from overloading

Avoid:

• Hammering the spanner
• Using extension pipes for leverage
• Using on damaged fasteners
• Using on spline or square heads

Ring spanners are not impact tools.

Who Should NOT Buy This

This model is not suitable for:

• Adjustable tool requirements
• Impact wrench applications
• Non-metric fasteners
• Torx or spline heads
• Precision torque-critical aerospace environments requiring calibrated torque tools

For adjustable or impact-driven applications, alternative tool types are recommended.

Material / Compatibility Table

Operational Handling & Installation Considerations

• Ensure full ring seating before applying torque.
• Maintain perpendicular alignment.
• Avoid side loading.
• Inspect tool before use.
• Clean oil residue from contact surface.

Storage:

• Dry environment
• Avoid chemical exposure
• Do not mix with damaged tools

Commercial Clarity

Lead Time

• Ready stock subject to prior sale.
• Same-day or next-working-day dispatch for confirmed orders.

Dispatch Capability

• Pan India shipping.
• Industrial logistics partners.
• Bulk dispatch supported.

MOQ

• No rigid MOQ.
• Bulk pricing available on higher quantities.

Customization

• Standard STANLEY model only.
• No modification or rebranding.

Compliance

• GST invoice provided.
• Original branded product.
• Model code verification before dispatch.

Tender Compatibility

• Suitable for institutional and industrial procurement.
• Documentation support available upon request.

Procurement Process

To process your enquiry efficiently, provide:

• Required quantity
• Delivery location (city & state)
• Required-by date
• Company name & GST number
• Contact details

RFQ confirmation includes:

• Stock availability
• Dispatch timeline
• Freight terms

Bulk and repeat procurement accounts supported.

Comparison Table (Common Alternatives)

For repeated industrial use, fixed-size ring spanners provide greater reliability.

Selection Checklist (Decision Validation)

Before confirming order:

• Confirm fastener size: 18mm / 19mm
• Confirm hex profile
• Confirm offset access requirement
• Confirm non-impact application
• Confirm quantity requirement
• Confirm delivery location
• Confirm dispatch urgency

High-Intent FAQs

1. Is this original STANLEY 70-387E model?

Yes. Model code verification is conducted before dispatch.

2. Is stock available for immediate dispatch?

Stock is maintained. Availability confirmed at enquiry stage.

3. Can bulk quantities be supplied?

Yes. Bulk industrial orders are supported subject to availability.

4. Do you provide GST invoice?

Yes. GST-compliant billing is provided.

5. Is this suitable for impact use?

No. This is a manual ring spanner.

6. What if incorrect size is ordered?

Return eligibility depends on condition and policy confirmation at dispatch.

7. Can this be supplied Pan India?

Yes. Dispatch across India via industrial logistics channels.
