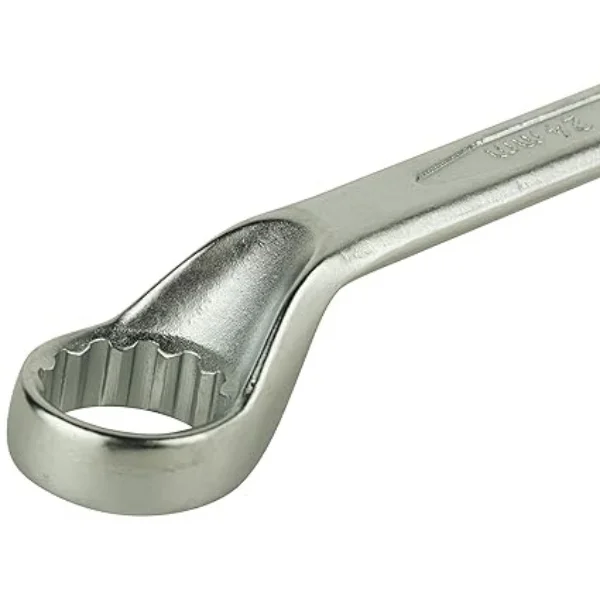

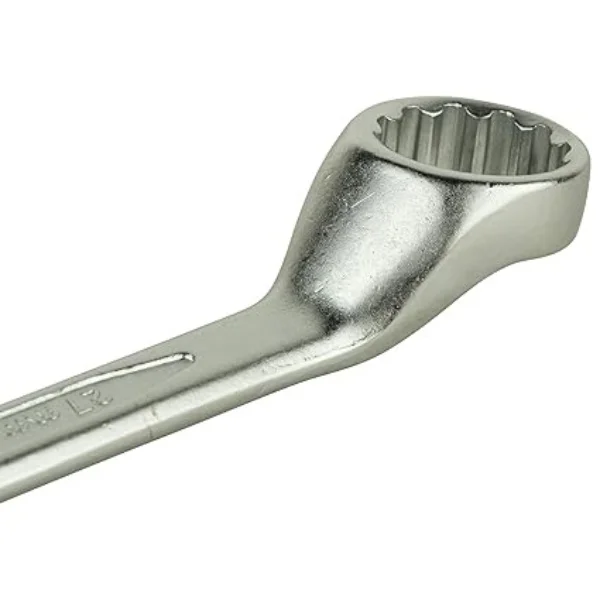

STANLEY 70-390E Shallow Offset Bi-Hex Ring CR-V Spanner 24x27mm - Pan India Industrial Supplier

STANLEY 70-390E Application Context & Use Cases

Industrial Usage Segments
The 24x27mm dual-size configuration is typically deployed in:

• Heavy machinery maintenance
• Structural fabrication yards
• Infrastructure equipment servicing
• Steel plant and refinery maintenance
• Industrial pump and motor installations
• Large bolt assembly and disassembly tasks

Why Shallow Offset + Bi-Hex Matters
Shallow Offset Function
The shallow offset ring geometry provides knuckle clearance over protruding bolt heads while maintaining surface contact stability.
Bi-Hex Engagement
Bi-hex (12-point) ring configuration enables:

• Faster repositioning in confined spaces
• Engagement at 30° indexing intervals
• Reduced re-seating effort compared to hex-only profile

This model is selected where both accessibility and speed of engagement influence maintenance time.

Selection Guidance – How to Choose Correctly

Confirm Fastener Size
Verify:

• Nut/bolt head across flats = 24mm or 27mm
• Metric system requirement

Do not assume based on bolt diameter alone.

Evaluate Access Constraints
If working in:

• Deep recesses → consider deep offset models
• Open access assemblies → straight ring may suffice

The 70-390E is suitable for moderate obstruction, not deep recessed applications.

Torque Requirement Validation
For high-torque industrial fastening:

• Ensure spanner cross-section matches torque demand
• Confirm no requirement for impact tool (this is manual application tool)

Capacity / Calculation Example

Torque Transmission Logic (Practical Example)
If tightening a structural bolt requiring approx. 350–400 Nm torque:
Torque = Force × Lever Length
If spanner length ≈ 300 mm (0.3 m):
Required Force ≈ 400 Nm ÷ 0.3 m = ~1333 N
Equivalent ≈ 136 kgf force
This indicates:

• Tool must withstand high manual load
• Operator must ensure stable stance
• Extension pipes should not be used unless approved

CR-V construction supports high manual torque, but misuse causes distortion.

Failure Conditions & Misuse Risks

Common misuse scenarios:

• Using as impact substitute
• Hammer striking on ring body
• Applying cheater pipe without load assessment
• Using incorrect size causing rounding
• Engaging worn fasteners

Potential outcomes:

• Ring deformation
• Fastener rounding
• Tool slip injury
• Micro-cracking in alloy

This tool is for controlled manual torque only.

 Who Should NOT Buy This

This model is not suitable for:

• Impact wrench applications
• Non-metric fasteners
• Recessed deep bolt access
• Light DIY domestic usage
• Applications requiring insulated tools

Industrial buyers requiring insulated or impact-grade tools should select appropriate alternatives.

Material & Compatibility Table

Material Compatibility

Environmental Compatibility

Operational Handling & Installation Considerations

• Ensure full ring seating before applying force
• Pull rather than push where possible for safety
• Maintain perpendicular alignment to bolt axis
• Inspect ring edges periodically
• Store in dry tool control system

In industrial environments, spanners must be logged under tool accountability systems.

Commercial Clarity

Lead Time
Stock-supported dispatch for standard quantities.
Bulk orders confirmed against availability at time of enquiry.
Dispatch Capability
Pan-India shipping via insured logistics partners.
Direct dispatch to plant, warehouse, or project site.
MOQ
No strict MOQ for standard procurement.
Bulk quantity pricing applicable.
Customization
No modification or customization available on branded product.
Compliance / Certification

• Supplied as original branded product
• GST-compliant invoice issued
• Batch traceability based on packaging

Tender Compatibility
Can be supplied under:

• Industrial procurement contracts
• Project tool supply packages
• Government and PSU tenders (documentation provided upon request)

Procurement Process – How to Enquire

To issue accurate commercial quotation, provide:

1. Required quantity
2. Delivery location (city & state)
3. GST number (if registered)
4. Required dispatch timeline
5. Whether part of tool-kit bulk order

Quotation includes:

• Unit rate
• GST breakup
• Dispatch schedule
• Freight terms

Bulk enquiries prioritized for structured response.

Comparison Table – Common Alternatives

The 70-390E is selected where repositioning flexibility improves productivity without sacrificing engagement accuracy.

Selection Checklist (Decision Validation)

Before confirming order, validate:

•  Fastener size confirmed 24mm / 27mm
•  Metric system verified
•  Manual torque application only
•  Access clearance compatible with shallow offset
•  Bulk quantity requirement defined
•  Delivery location confirmed
•  GST details available

If all above conditions align, this model is technically appropriate.

High-Intent FAQs

1. Is this original STANLEY product?

Yes. Supplied as original branded product with manufacturer packaging.

2. Is 70-390E bi-hex or hex?

This model features bi-hex (12-point) ring configuration.

3. Can it handle heavy industrial torque?

Yes, within manual torque limits appropriate for CR-V ring spanners. Not for impact use.

4. Is bulk supply available across India?

Yes. Pan-India dispatch capability with commercial invoicing.

5. Does it come with certification?

Supplied with standard manufacturer packaging and GST invoice. Additional compliance documentation available on request.

6. What is typical dispatch timeline?

Stock orders are processed upon confirmation. Bulk quantities subject to availability confirmation.

7. Is credit available?

Subject to company approval and prior procurement history.
