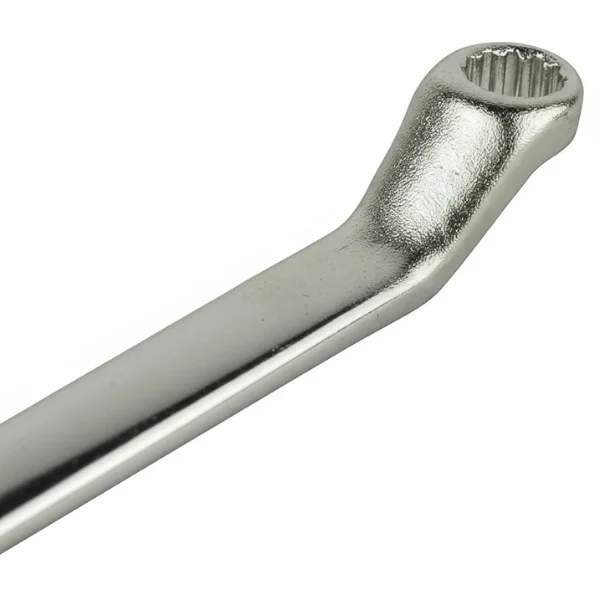

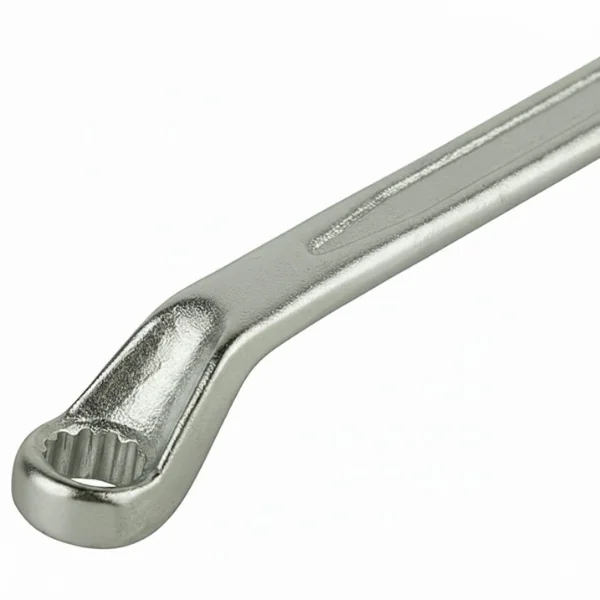

STANLEY 70-389E Shallow Offset Bi-Hex Ring CRV Spanner 21x23mm - Pan India

STANLEY 70-389E Application Context & Use Cases

This size combination (21x23mm) is commonly used in:
Industrial Maintenance

• Equipment base frame bolts
• Structural fasteners
• Pump and motor mounting assemblies

Automotive & Commercial Vehicle Workshops

• Suspension assemblies
• Axle housing bolts
• Heavy vehicle engine fittings

Machinery Installation & Shutdown Work

• Foundation bolt tightening
• Flange assembly
• Gearbox mounting

Fabrication & Structural Projects

• High-strength metric fasteners
• Steel structure erection

The shallow offset design allows clearance over protruding studs while maintaining ring engagement. The bi-hex profile enables engagement at 30° indexing positions, reducing repositioning in confined spaces.

Selection Guidance – How to Choose Correctly

Before selecting 21x23mm:

1. Confirm fastener head size using calibrated vernier or gauge.
2. Ensure fastener is metric (not AF or inch series).
3. Verify required torque range.
4. Confirm clearance conditions (offset required or not).
5. Identify whether ring-only access is necessary (no open-end clearance).

When 21x23mm is Correct

• Metric bolts labeled M14–M16 structural class
• Equipment with dual bolt size assemblies
• Maintenance kits requiring compact tool sets

If the bolt head dimension differs even by 1mm, improper seating can cause rounding.

Capacity / Real-World Torque Example

Torque Handling Logic
Chrome Vanadium spanners of this size are typically used for medium to high torque industrial fastening.
Example:

• M14 Bolt (Grade 8.8) typical tightening torque ≈ 135 Nm
• M16 Bolt (Grade 8.8) typical tightening torque ≈ 210 Nm

The ring profile distributes torque across multiple contact points, reducing stress concentration compared to open-end spanners.
Use with controlled manual leverage only. Avoid pipe extensions for torque amplification unless structurally evaluated.

Failure Conditions & Misuse Risks

Improper use leads to:

• Fastener rounding (wrong size selection)
• Ring cracking (impact misuse)
• Chrome flaking (chemical exposure)
• Tool bending (excessive leverage extension)

Not designed for:

• Impact wrench hammering
• Pipe extension torque multiplication
• Rusted, seized bolts without penetration oil

For seized bolts, pre-treatment is required.

Who Should NOT Buy This

Do not purchase this model if:

• You require inch (AF) size tools
• You need impact-grade spanners
• You require deep offset profile
• You require single-ended ring spanner
• You need insulated electrical tools

This is a standard industrial CRV ring spanner for manual torque applications.

Material & Compatibility Table

Material Compatibility

Environment Compatibility

Operational Handling & Installation Considerations

• Always clean bolt head before engagement.
• Ensure full ring seating before applying torque.
• Apply steady manual force.
• Store in dry tool cabinet.
• Avoid dropping on concrete repeatedly.

For high-volume assembly, periodic inspection for wear is recommended.

Commercial Clarity

Lead Time

• Ready stock subject to availability confirmation.
• Same-day dispatch for confirmed orders received within operational hours.

Dispatch Capability

• Pan-India shipping via surface and air cargo.
• Bulk and carton dispatch supported.

MOQ

• No mandatory MOQ for standard orders.
• Bulk quantity pricing available.

Customization

• No customization for branded SKU.
• Bulk toolkit supply possible as project requirement.

Compliance

• GST-compliant invoice provided.
• Supplied as genuine branded product.

Tender Compatibility

• Can be supplied under institutional or industrial tenders.
• Technical specification sheet available upon request.

Procurement Process – How to Enquire

To process quickly, provide:

1. Required quantity
2. Delivery location (City, State, PIN)
3. Required dispatch timeline
4. GST details
5. Company name and contact person

Enquiry → Quantity confirmation → Dispatch commitment → Formal quotation → Order confirmation → Shipment tracking.
Fast fulfilment requires complete order information at initial enquiry.

Comparison Table

STANLEY 70-389E vs Common Alternatives

For high-torque precision fastening, ring profile provides better engagement.

Selection Checklist

Before finalizing purchase:

• Fastener confirmed as 21mm or 23mm metric
• Offset profile required
• Manual torque application intended
• No impact use planned
• Quantity confirmed
• Delivery timeline defined
• GST details ready

High-Intent FAQs

1. Is STANLEY 70-389E suitable for heavy industrial torque?

Yes, for manual torque applications within standard metric fastening ranges. Not for impact usage.

2. Is this tool original branded supply?

Supplied as genuine branded product with GST-compliant billing.

3. What is the difference between bi-hex and hex ring?

Bi-hex provides 12-point engagement allowing better indexing in restricted clearance.

4. Can this be used for seized bolts?

Not recommended without proper pre-treatment. Excess force may damage tool or fastener.

5. Is bulk supply available for projects?

Yes, bulk quantities can be supplied subject to stock confirmation.

6. Do you dispatch across India?

Yes, Pan-India dispatch capability with structured logistics support.
