Pilz 774610 PNOZ XV3.1 Safety Relay 24-240VAC/DC 3NO 1NC 2NO (Timed) Supplier

This relay is typically selected for applications requiring monitored safety circuits combined with controlled delay outputs, especially where machinery needs staggered shutdown or safe restart timing.

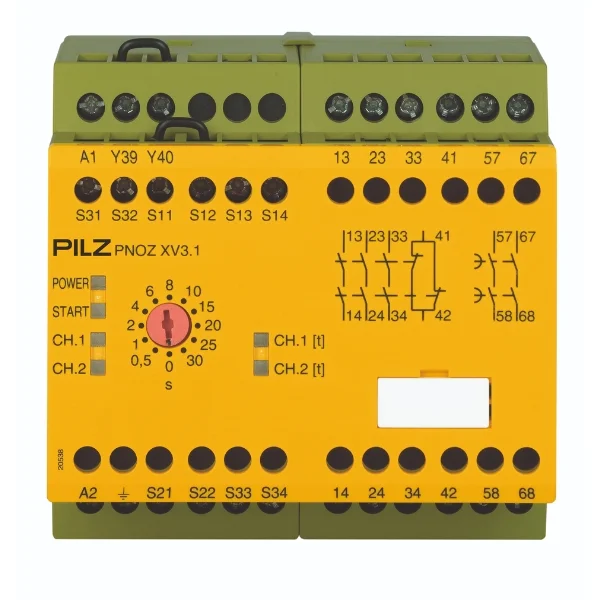

What is Pilz 774610 PNOZ XV3.1 Safety Relay

Pilz 774610 PNOZ XV3.1 Safety Relay is a configurable safety control device designed to monitor safety circuits and provide controlled switching outputs, including timed contacts. It is used in industrial automation systems to ensure safe shutdown sequences, machine guarding, and controlled restart operations under defined safety logic.

This relay belongs to the PNOZ X series, known for handling complex safety logic in conventional relay-based architectures. The timed output configuration allows delayed switching after safety conditions are met or removed.

Unlike standard safety relays that operate instantly, the XV3.1 variant supports applications where machinery cannot stop abruptly or requires controlled sequencing. It integrates monitoring of input devices such as emergency stop buttons, safety gates, and interlock switches, ensuring compliance with safety control logic without requiring programmable safety controllers.

Applications of Pilz 774610 PNOZ XV3.1 Safety Relay

• Conveyor Shutdown Sequencing
Used where conveyors must stop in sequence rather than instantly to prevent material pile-up or mechanical stress.
• Packaging Machine Safety Control
Ensures delayed stopping of sealing or cutting units to complete in-process cycles safely.
• Hydraulic Press Systems
Allows controlled pressure release and delayed disengagement of actuators after emergency stops.
• Material Handling Systems
Provides staggered shutdown across multi-zone systems to maintain system stability.
• Process Plant Interlocking
Used in chemical or process industries where abrupt shutdown could create unsafe pressure or flow conditions.
• Automated Assembly Lines
Maintains synchronized stopping of robotic or mechanical units to avoid collision or part damage.
• Fan and Ventilation Systems
Ensures continued airflow for a short duration after shutdown to remove residual heat or fumes.

Industries Using Pilz 774610 PNOZ XV3.1 Safety Relay

This relay is typically selected in environments where process continuity and safe shutdown timing are equally critical:
• Automotive component manufacturing
• Food and packaging lines
• Steel and metal processing plants
• Pharmaceutical production facilities
• Chemical processing units
• Warehousing and logistics automation
• Power generation and auxiliary systems
Each of these sectors requires safety systems that not only stop equipment but do so in a controlled and predictable manner.

Operational Considerations

When integrating the Pilz 774610 PNOZ XV3.1 Safety Relay, the following factors influence performance:
• Load Type Compatibility
Suitable for controlling contactors, actuators, and control circuits rather than direct high-load switching.
• Timing Requirements
The delay function must align with actual process needs—over-delay can create safety risks, while under-delay can damage equipment.
• Control Panel Integration
Requires proper wiring with safety-rated components and adherence to control panel design standards.
• Environmental Conditions
Stable operation depends on installation within specified temperature and enclosure conditions.
• System Redundancy
Often used alongside other safety devices such as safety PLCs or additional relays in layered safety systems.

Customization Options

As Indus Megamart operates as a supplier and distributor, product-level customization is not offered. However, procurement teams can configure the relay through:
• External wiring logic
• Selection of compatible input devices
• Integration with different control architectures
• Use of auxiliary contactors or expansion modules
Configuration flexibility is achieved at the system level rather than through product modification.

Product Supply & Distribution Capability

Indus Megamart supports industrial buyers with structured sourcing and supply of Pilz safety relays:
• Verified sourcing from established supply channels
• Availability across multiple Pilz product variants
• Coordination for bulk and project-based requirements
• Support for replacement and maintenance procurement
The company operates strictly as a supplier and distributor, ensuring availability without implying manufacturing involvement.

Supply Across India

Indus Megamart ensures pan-India supply coverage, supporting:
• Metro cities (Delhi, Mumbai, Pune, Chennai, Bengaluru)
• Industrial clusters (Gujarat, Maharashtra, Tamil Nadu)
• Tier-2 and project locations
Dispatch is managed through logistics partners to ensure timely delivery aligned with project schedules and maintenance shutdowns.

Export Capability

For international procurement requirements, Indus Megamart can support export supply based on:
• Product availability
• Documentation requirements
• Destination compliance
Export coordination is handled case-by-case depending on project scope and order volume.

How to Choose the Right Pilz 774610 PNOZ XV3.1 Safety Relay

When evaluating this relay, buyers should assess:
• Whether the application requires timed safety outputs
• Input device compatibility (E-stop, gate switches, sensors)
• Voltage compatibility with existing control systems
• Required number of safety contacts
• Reset logic (manual vs automatic)
• Integration with existing safety architecture
For broader guidance, refer to internal resources such as the Safety Relay Selection Guide and Safety System Design Practices.

Comparison Table

The XV3.1 model is often compared with other PNOZ variants based on functionality:

This makes the XV3.1 suitable for systems needing more control than basic relays but without the complexity of programmable safety systems.

Typical Use Case Scenarios

1. Multi-Zone Conveyor Systems
Sequential shutdown ensures material flow is managed without accumulation.
2. Thermal Processing Equipment
Delayed shutdown maintains cooling cycles to prevent overheating.
3. Robotic Handling Cells
Ensures robots stop in a controlled manner, avoiding abrupt positioning errors.
4. Industrial Ventilation Systems
Allows fans to run briefly after shutdown to clear hazardous gases.

Procurement Process

To procure the Pilz 774610 PNOZ XV3.1 Safety Relay, buyers can follow a structured approach:

1. Define application requirements
2. Confirm relay configuration suitability
3. Request quotation
4. Validate delivery timelines
5. Place order

For enquiries, visit the official contact page:
https://www.indusmegamart.com/contact-us
You may also review company background here:
https://www.indusmegamart.com/about-us

Common Buyer Concerns Before Ordering

• Whether the timing function aligns with process requirements
• Compatibility with existing safety circuits
• Availability for urgent replacement
• Long-term product availability
• Integration with legacy control panels
Indus Megamart typically assists buyers in addressing these concerns during pre-procurement discussions.

Frequently Asked Questions

What makes the Pilz 774610 PNOZ XV3.1 different from standard safety relays?
The key difference is the inclusion of timed outputs. While standard safety relays switch immediately, this model allows delayed activation or deactivation of outputs, making it suitable for controlled shutdown processes where timing is critical.
Can this relay be used without a safety PLC?
Yes, it is designed for relay-based safety systems and does not require programming. It is commonly used in systems where safety logic is implemented through wiring rather than software.
Is the timing adjustable in the Pilz 774610 PNOZ XV3.1?
Timing functionality typically depends on configuration and model capabilities. For precise adjustment ranges and methods, it is recommended to confirm during technical evaluation or refer to product documentation.
Where is this relay commonly installed?
It is typically installed inside control panels on DIN rails, alongside contactors, power supplies, and other control components.
How does it support machine safety compliance?
It ensures that safety circuits are monitored and that outputs respond according to defined logic, including delayed shutdown where required, helping align with safety system design principles.
Is it suitable for retrofit projects?
Yes, it is often used in retrofit applications where older systems require improved safety control without transitioning to programmable safety controllers.
What factors affect relay selection in safety systems?
Key factors include input device type, required output contacts, timing requirements, voltage compatibility, and integration with existing control systems.
Can Indus Megamart support bulk orders?
Yes, Indus Megamart supports both project-based procurement and bulk supply requirements across industrial sectors.
