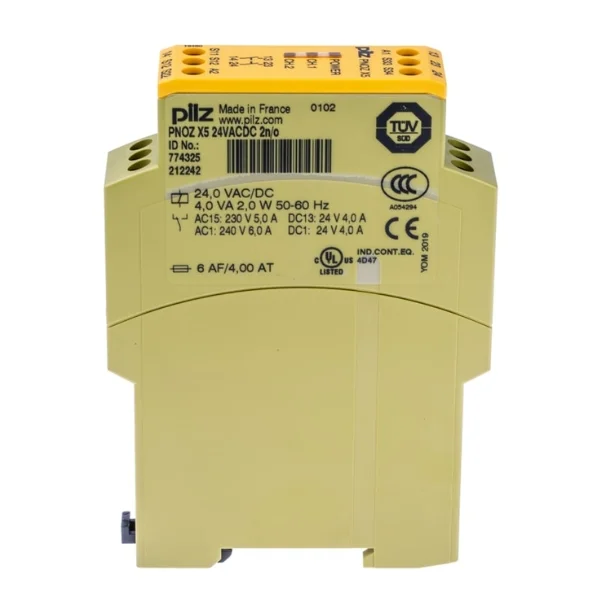

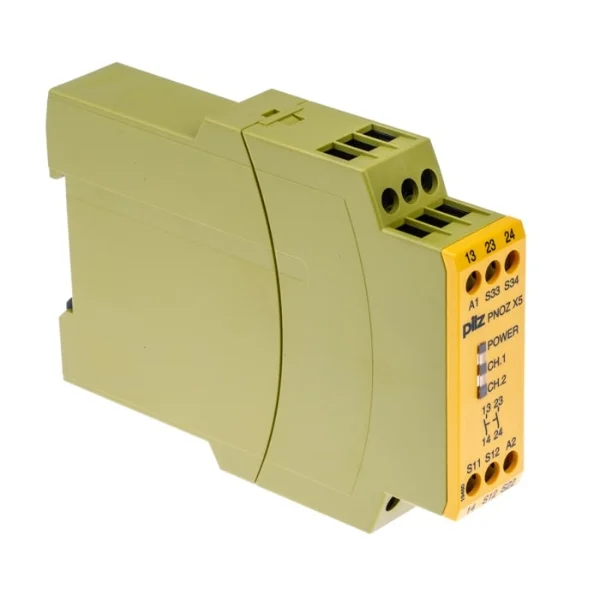

Pilz 774325 PNOZ X5 Safety Relay 24VAC/DC 2NO Supplier

Indus Megamart supplies this relay to automation integrators, plant engineers, and OEM contractors across India, supporting consistent availability for maintenance and new project requirements. The relay is typically deployed in manufacturing lines, packaging systems, and machine safety retrofits where dependable safety switching is critical.

What is Pilz 774325 PNOZ X5 Safety Relay 24VAC/DC 2NO

Pilz 774325 PNOZ X5 Safety Relay 24VAC/DC 2NO is a safety monitoring relay designed to evaluate input signals from safety devices such as emergency stops and safety gates, and control safe outputs through two normally open contacts. It is used to ensure machines operate only under safe conditions.

This relay belongs to the PNOZ X series, commonly applied in conventional safety circuits where structured and deterministic safety logic is required without programmable safety controllers.

The unit monitors input devices such as:

• Emergency stop pushbuttons
• Safety limit switches
• Two-hand control systems

When a safe condition is verified, the relay energizes its output contacts. If a fault or unsafe condition is detected, it immediately de-energizes outputs, bringing machinery to a safe state.

The 24VAC/DC flexibility allows integration into mixed control panels where AC and DC auxiliary supplies may vary depending on the installation.

Applications of Pilz 774325 PNOZ X5 Safety Relay 24VAC/DC 2NO

• Conveyor Line Emergency Stop Systems
  Used in material handling lines where multiple emergency stop stations must reliably shut down conveyor drives.
• Machine Guard Monitoring
  Installed in machines with safety doors or interlocks to ensure operation only when guards are closed.
• Textile Machinery Safety Circuits
  Protects operators in high-speed spindle or loom systems by ensuring immediate shutdown on unsafe input signals.
• Packaging Line Safety Integration
  Works alongside PLC systems to isolate safety functions from standard control logic.
• Small Press Machines and Workshop Equipment
  Suitable for compact machines where simple safety relay architecture is preferred over safety PLCs.
• Retrofit Projects in Legacy Plants
  Used when upgrading older machines with modern safety compliance requirements without redesigning full control systems.

Industries Using Pilz 774325 PNOZ X5 Safety Relay

The relay is used across industries where machine-level safety is critical:

• Light engineering workshops
• Packaging and processing units
• Textile and spinning mills
• Food handling equipment (non-hygiene critical zones)
• Warehousing and conveyor systems
• Assembly line automation

Compared to higher-end safety controllers, this relay is often selected in industries where fixed-function safety logic is sufficient.

Operational Considerations

When integrating the Pilz 774325 PNOZ X5 Safety Relay, the following aspects should be evaluated:

• Control Panel Compatibility
  Ensure space availability on DIN rail and compatibility with existing terminal layouts.
• Input Device Configuration
  The relay is typically used in dual-channel safety circuits to detect faults like short circuits or cross faults.
• Power Supply Stability
  24VAC/DC input flexibility is useful, but voltage stability is important for consistent relay operation.
• Environmental Conditions
  Suitable for standard industrial environments; additional enclosure protection may be required in dusty or high-moisture areas.
• Integration with Control Systems
  Works independently of PLCs, ensuring safety circuits remain functional even if control logic fails.

Customization Options

As a standard safety relay, the Pilz 774325 PNOZ X5 is not customized at the product level. However, system-level configuration flexibility exists:

• Wiring logic (manual reset / auto reset)
• Integration with different safety devices
• Panel-level adaptation for specific machine layouts
• Combination with other safety relays or expansion modules

Indus Megamart supports selection guidance based on application requirements rather than modifying the product itself.

Product Supply & Distribution Capability

Indus Megamart operates as a supplier and distributor of industrial automation components, including Pilz safety relays.
Supply capabilities include:

• Sourcing genuine Pilz components
• Supporting bulk and project-based procurement
• Coordinating dispatch based on urgency
• Assisting with product identification for replacement or upgrade

More about the company’s operational approach can be understood here:
https://www.indusmegamart.com/about-us

Supply Across India

Indus Megamart supplies the Pilz 774325 PNOZ X5 Safety Relay across:

• Tier 1 industrial cities (Delhi NCR, Mumbai, Pune, Chennai, Bangalore)
• Tier 2 manufacturing hubs
• Remote plant locations via logistics partners

Dispatch timelines depend on stock availability and order size, with support for both planned procurement and urgent replacement needs.

Export Capability

For international buyers and EPC contractors handling overseas projects, Indus Megamart can support export supply based on order volume and documentation requirements.
Export coordination typically includes:

• Commercial documentation
• Packing suitable for international transit
• Coordination with freight partners

How to Choose the Right Pilz 774325 PNOZ X5 Safety Relay

When evaluating this relay, buyers should consider:

• Required number of safety outputs (2NO suitability)
• Type of safety device (E-stop, guard switch, etc.)
• Reset logic requirements (manual vs automatic)
• Compatibility with existing safety architecture
• Panel space and wiring complexity
• Whether a fixed-function relay is sufficient or a safety controller is needed

For broader selection logic, refer to internal guides such as:

• Safety relay selection guide
• Comparison of PNOZ X vs PNOZ S series

Comparison Table

Below is a functional comparison to help differentiate this relay within similar categories:

Typical Use Case Scenarios

• Standalone Conveyor Safety Loop
  Relay monitors emergency stops across a short conveyor segment.
• Machine Tool Guard Interlock
  Ensures machine cannot start unless safety doors are closed.
• Panel Retrofit in Existing Plant
  Used to replace older safety relays with minimal wiring changes.
• Small Automation Cell Safety Circuit
  Integrated into compact automation setups where PLC safety is not required.

Procurement Process

To procure the Pilz 774325 PNOZ X5 Safety Relay:

1. Share application details or part number
2. Confirm availability and pricing
3. Receive technical confirmation if required
4. Place order and schedule dispatch

For enquiries, visit:
https://www.indusmegamart.com/contact-us

Common Buyer Concerns Before Ordering

• Whether 2NO outputs are sufficient for the application
• Compatibility with existing safety circuits
• Availability of stock for urgent replacement
• Differences between PNOZ X and newer safety series
• Integration complexity in existing panels

Indus Megamart assists in addressing these concerns through pre-sales coordination.

FAQ Section

What does Pilz 774325 PNOZ X5 Safety Relay do?
It monitors safety input devices such as emergency stops and safety switches, and controls output contacts to ensure machinery only operates under safe conditions. If a fault or unsafe signal is detected, it disconnects outputs to stop the machine.
Can Pilz 774325 PNOZ X5 be used with both AC and DC supply?
Yes, this relay supports 24VAC/DC input, making it suitable for panels where control voltage may vary. This flexibility simplifies integration into mixed-voltage environments without needing additional converters.
Is this relay suitable for large automation systems?
It is typically used in small to medium safety circuits. For large or complex systems requiring multiple safety zones or programmable logic, a safety PLC or modular safety system may be more appropriate.
What type of outputs does this relay provide?
The relay provides two normally open (2NO) safety contacts. These are used to control downstream devices such as contactors or motor drives in a safe manner.
How is Pilz PNOZ X5 different from PNOZ S series?
PNOZ X5 is part of a conventional relay series with fixed logic, while the PNOZ S series offers more compact designs and additional configuration flexibility. Selection depends on panel design and safety requirements.
Does this relay require programming?
No, it operates using fixed internal logic. Configuration is achieved through wiring rather than software programming, making it suitable for straightforward safety applications.
Can it be used in retrofit safety upgrades?
Yes, it is commonly used in retrofit projects where older safety relays need replacement without redesigning the entire control system.
