Pilz 787086 PNOZ X11P C Safety Relay 230-240VAC 7NO 1NC 2SO Supplier

As a supplier and distributor, Indus Megamart supports procurement teams with sourcing reliability, application guidance, and pan-India dispatch for ongoing maintenance and project-based requirements.

What is Pilz 787086 PNOZ X11P C Safety Relay 230–240VAC 7NO 1NC 2SO

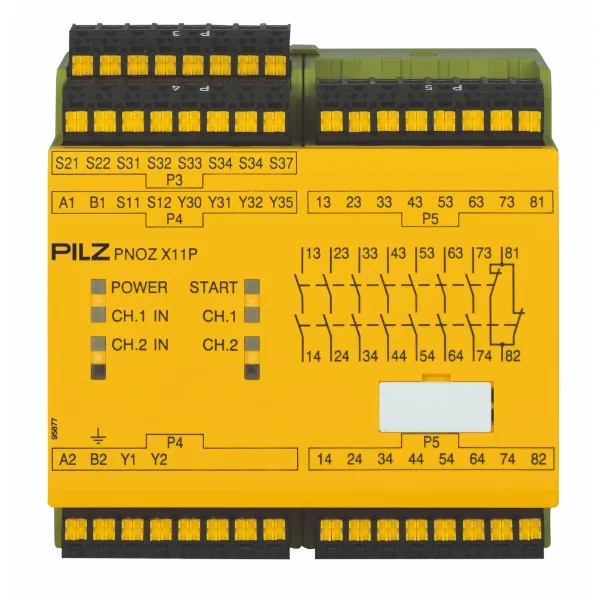

Pilz 787086 PNOZ X11P C Safety Relay 230–240VAC 7NO 1NC 2SO is a safety control relay designed to monitor safety circuits and ensure safe machine shutdown when faults or unsafe conditions occur. It provides multiple safety outputs and signaling contacts, making it suitable for complex safety interlocking and monitoring applications.

The PNOZ X11P C belongs to the PNOZ X series, typically used in applications where multiple safety outputs are required for distributed control logic. With a configuration that includes several normally open (NO), normally closed (NC), and signaling outputs (SO), this relay supports multi-channel safety architectures.

It is commonly integrated with:

• Emergency stop circuits
• Safety gate monitoring
• Two-hand control systems
• Safety light curtains

The 230–240VAC supply variant makes it suitable for facilities operating on standard industrial AC control voltages, reducing the need for auxiliary power conversion.

Applications of Pilz 787086 PNOZ X11P C Safety Relay

1. Packaging Line Interlocking Systems
   Used to monitor access doors and emergency stops across multi-station packaging machines where multiple outputs are needed to isolate different zones.
2. Material Handling Conveyor Networks
   Ensures safe shutdown across long conveyor systems where multiple contact outputs control segmented motor drives and safety circuits.
3. Automated Assembly Cells
   Supports safety circuits involving robotic cells, where door monitoring and emergency stop functions require multiple safety outputs.
4. Printing and Paper Processing Machines
   Used in high-speed machinery where quick response and distributed safety contacts are needed to stop rollers and feeders.
5. Chemical Processing Equipment Safety Loops
   Applied in control panels monitoring operator access points and emergency stop chains in process environments.
6. Machine Tool Safety Systems
   Integrated into CNC and heavy machinery for spindle shutdown and operator protection circuits.

Industries Using Pilz 787086 PNOZ X11P C Safety Relay

The relay is widely deployed in industries where safety compliance and operational continuity are critical:

• Automotive manufacturing and assembly
• FMCG and packaging plants
• Material handling and warehousing automation
• Printing and paper industries
• Chemical and process industries
• Engineering workshops and machine tool manufacturing

Each of these environments benefits from the relay’s ability to handle multiple safety outputs within a single unit, reducing panel complexity.

Operational Considerations

When deploying the Pilz 787086 PNOZ X11P C Safety Relay, consider the following:

• Control Voltage Compatibility
  Ensure the 230–240VAC supply matches the control panel architecture.
• Load Distribution Across Outputs
  With multiple NO contacts, outputs are often distributed across different safety loops or control relays.
• Panel Space Optimization
  Multi-output relays like this reduce the need for multiple smaller relays but require structured wiring.
• Integration with Safety Devices
  Compatible with emergency stop pushbuttons, interlock switches, and safety sensors.
• Environmental Conditions
  Suitable for standard industrial control panels; additional protection may be needed in high-dust or high-humidity environments.

Customization Options

As Indus Megamart operates as a supplier and distributor, this product is supplied in standard OEM configuration.
However, project-level flexibility may include:

• Selection of alternative voltage variants
• Integration with compatible Pilz modules
• Panel-level configuration support

Customization at the component level is not applicable, but system-level adaptation is achievable.

Product Supply & Distribution Capability

Indus Megamart supports procurement and supply of Pilz safety relays through:

• Verified sourcing channels
• Batch supply for project requirements
• Support for repeat orders in maintenance cycles
• Coordination for urgent industrial requirements

The company focuses on ensuring availability continuity rather than one-time transactional supply.

Supply Across India

Indus Megamart offers pan-India supply coverage, supporting:

• Metro industrial clusters (Delhi NCR, Mumbai, Pune, Chennai, Bengaluru)
• Tier-2 industrial zones
• Remote project sites

Dispatch logistics are aligned with project timelines, ensuring timely delivery for both maintenance shutdowns and new installations.

Export Capability

For clients operating outside India, Indus Megamart can support export-oriented supply requirements based on project scope and documentation needs. Coordination includes packaging, documentation, and logistics alignment with international procurement teams.

How to Choose the Right Pilz 787086 PNOZ X11P C Safety Relay

When evaluating this relay, buyers typically consider:

• Number of Safety Outputs Required
  This model is suitable where multiple output contacts are needed.
• Voltage Compatibility
  Ensure alignment with 230–240VAC systems.
• Application Complexity
  Suitable for multi-zone safety systems rather than simple single-loop circuits.
• Integration with Existing Safety Architecture
  Confirm compatibility with existing Pilz or third-party safety components.
• Panel Wiring Complexity
  Multi-contact relays require structured wiring planning.

For deeper evaluation, refer to internal guides such as Safety Relay Selection Guide and Safety Circuit Design Considerations.

Comparison Table

For procurement clarity, comparing similar configurations helps define suitability:

The X11P C is generally chosen when output density and control segmentation are priorities.

Typical Use Case Scenarios

1. Multi-Zone Conveyor Safety System
   A large conveyor network requires segmented shutdown capability. The relay distributes outputs to different motor zones.
2. Robotic Cell Access Control
   Multiple access gates are monitored, with separate outputs controlling robot stop functions and alarms.
3. Packaging Machine Safety Integration
   One relay handles emergency stops, door interlocks, and signal outputs for operator alerts.
4. Centralized Safety Control Panel
   Used in panels where multiple safety loops converge into a single control architecture.

Procurement Process

To initiate procurement for Pilz 787086 PNOZ X11P C Safety Relay 230–240VAC 7NO 1NC 2SO:

1. Share your application or BOQ
2. Confirm voltage and output requirements
3. Discuss delivery timelines
4. Receive quotation and supply schedule

For direct enquiries, visit:
Contact Page: https://www.indusmegamart.com/contact-us
Learn more about the company: https://www.indusmegamart.com/about-us

Common Buyer Concerns Before Ordering

• Whether the relay supports required safety architecture
• Compatibility with existing Pilz systems
• Availability for urgent replacement
• Wiring complexity for multiple outputs
• Lifecycle availability for long-term projects

Indus Megamart addresses these concerns through sourcing reliability and technical alignment during enquiry.

Frequently Asked Questions (FAQs)

What safety functions can the Pilz 787086 PNOZ X11P C support?
It is typically used for emergency stop monitoring, safety gate supervision, and multi-channel safety circuits. Its multiple outputs allow it to control several safety zones simultaneously, making it suitable for complex industrial systems.
Is this relay suitable for large machines with multiple safety zones?
Yes, the high number of output contacts makes it suitable for distributed safety control. It is often selected for machines or systems where multiple shutdown paths or safety loops must be managed independently.
How does it differ from smaller safety relays?
Smaller relays typically have fewer outputs and are used in simple circuits. The PNOZ X11P C is designed for applications requiring higher output density and more complex safety logic distribution.
Can it be used with modern automation systems?
Yes, it can be integrated into control panels alongside PLCs and safety controllers. It operates as a hardwired safety component, complementing programmable systems.
What should be checked before installation?
Verify supply voltage compatibility, wiring configuration, and output load requirements. It is also important to ensure proper integration with safety devices such as emergency stops and interlock switches.
Is it suitable for retrofit projects?
Yes, it is often used in retrofits where older safety systems are upgraded to support more outputs or improved safety segmentation.
How is maintenance handled?
Safety relays typically require minimal maintenance but should be periodically checked for wiring integrity and correct operation within the safety circuit.
