STANLEY 70-392E SHAL Offset Bi-Hex Ring CRV Spanner 30x32mm - Industrial Supply

STANLEY 70-392E Application Context & Use Cases

The 30x32mm size range is typically deployed in heavy fastening assemblies where standard combination spanners are inadequate due to torque load or restricted access.
Typical Industrial Applications

• Structural steel erection
• Infrastructure bridge bolting
• Heavy machinery installation
• Diesel engine overhaul
• Mining equipment maintenance
• Large flange and coupling assemblies
• EPC shutdown maintenance work

Why Offset + Bi-Hex Matters
Offset Geometry

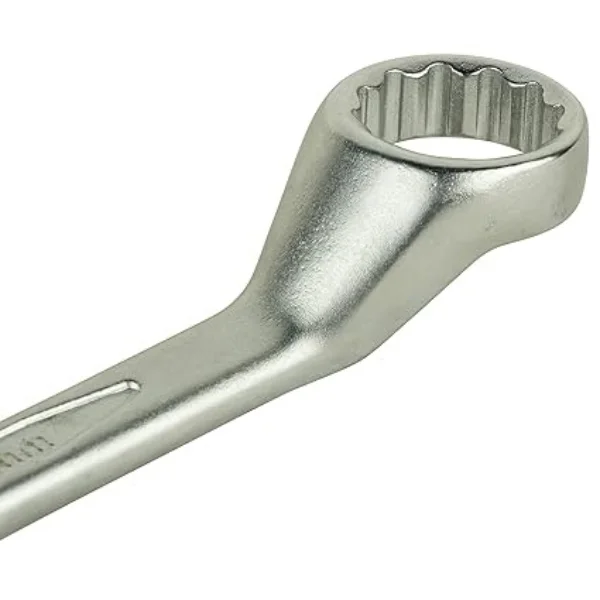

The offset head design allows clearance over protruding studs and adjacent components, reducing the need for deep sockets in constrained areas.
Bi-Hex Ring Profile

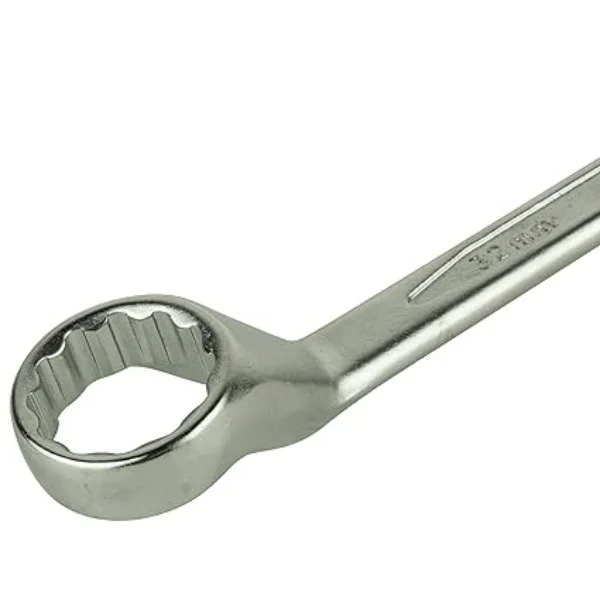

The 12-point (bi-hex) configuration allows engagement at 30° increments, improving repositioning speed in limited swing radius conditions without compromising grip.
This model is not intended for light-duty or household fastening.

Selection Guidance – How to Choose Correctly

Before procurement, confirm:

1. Exact fastener head size (measure across flats, not corners).
2. Required torque range of the assembly.
3. Access clearance around bolt head.
4. Whether hex or bi-hex engagement is acceptable for the joint.
5. Whether spanner length provides adequate leverage without pipe extension.

When 30x32mm is Correct

• Fasteners specified as M20–M22 heavy-duty structural bolts (verify head dimension).
• Equipment flange bolts with 30mm or 32mm hex heads.
• OEM manuals specifying 30mm or 32mm tightening tools.

Do not substitute with adjustable spanners for precision assemblies.

Capacity / Calculation Example

Practical Torque Logic
Assume:

• Bolt size: M20 structural bolt
• Recommended tightening torque: approx. 450–600 Nm (verify per grade)

Torque generated = Force × Lever Length
If:

• Spanner effective length ≈ 350 mm (0.35 m)
• Applied force = 1500 N

Torque ≈ 0.35 × 1500 = 525 Nm
This falls within typical heavy structural bolt torque ranges.
Important:
Always follow manufacturer torque specification for the bolt grade. The spanner transmits torque; it does not define safe torque limits.
Avoid using extension pipes unless tool rating and job specification permit.

Failure Conditions & Misuse Risks

Failure typically results from misuse rather than material defect.
Common Misuse Conditions

• Using incorrect size (e.g., 29mm on 30mm bolt)
• Using worn fasteners
• Applying impact hammering (not impact rated)
• Adding unauthorized extension pipes
• Engaging partially seated ring
• Using on rounded bolt heads

Possible Outcomes

• Fastener rounding
• Ring deformation
• Operator injury due to slip
• Surface plating damage

Bi-hex profile should be fully seated before load application.

Who Should NOT Buy This

This spanner is not suitable for:

• DIY or light workshop users
• Applications requiring impact tools
• Fasteners below 30mm
• Applications requiring torque wrench measurement
• Situations where socket wrench access is easier

If precise torque measurement is mandatory, use calibrated torque equipment.

Material & Compatibility Table

Fastener Compatibility

Environmental Suitability

Operational Handling & Installation Considerations

• Ensure full seating of ring before applying load.
• Apply steady, controlled force.
• Avoid jerking motion.
• Clean bolt head before engagement.
• Do not use as hammer substitute.
• Store in dry, non-corrosive environment.

Routine inspection recommended for:

• Ring wear
• Plating damage
• Edge deformation

Commercial Clarity

Lead Time
Stock-dependent. Typical dispatch within 24–72 working hours for available inventory.
Dispatch Capability
Pan India shipment via registered logistics partners. Bulk dispatch supported.
MOQ
Single unit supply available. Bulk procurement supported for industrial orders.
Customization
No dimensional customization. Standard STANLEY manufacturer specification only.
Compliance & Certification

• Genuine STANLEY product supply
• GST-compliant invoicing
• Manufacturer specification documentation available
• Suitable for tender submission (subject to tender terms)

Tender Compatibility
Model code clarity and manufacturer traceability supported for government and EPC tenders.

Procurement Process – How to Enquire

To process quotation efficiently, provide:

• Company name
• GST number
• Required quantity
• Delivery location
• Required delivery timeline
• Tender reference (if applicable)

RFQ evaluation includes:

• Stock validation
• Lead time confirmation
• Commercial quotation issuance
• Dispatch confirmation after PO

This is a B2B supply channel. Retail cart-based processing is not primary mode.

Comparison Table STANLEY 70-392E Ring CRV Spanner 30x32mm

Offset bi-hex design is preferred in heavy, access-restricted assemblies.

Selection Checklist – Decision Validation

Before placing PO, confirm:

• Fastener head measured at 30mm or 32mm across flats
• Application requires ring-type closed engagement
• Offset required for clearance
• Torque range within manual spanner capability
• Industrial usage confirmed
• Tender/PO documentation prepared

High-Intent FAQs

1. Is this a genuine STANLEY product?

Yes. Supplied as original STANLEY model 70-392E with manufacturer identification.

2. Can this be used for structural steel bolting?

Yes, if bolt head dimension matches 30mm or 32mm and torque requirement is within manual application limits.

3. Is it impact rated?

No. This is a manual spanner. Do not use with impact hammering.

4. Can bulk orders be supplied Pan India?

Yes. Bulk procurement with GST invoice and organized dispatch is supported.

5. Does this replace a torque wrench?

No. It transmits torque but does not measure it.

6. What is the difference between bi-hex and hex ring?

Bi-hex allows 30° indexing for easier repositioning while maintaining grip.

7. Is documentation available for tenders?

Specification details and commercial documents can be provided upon request.
