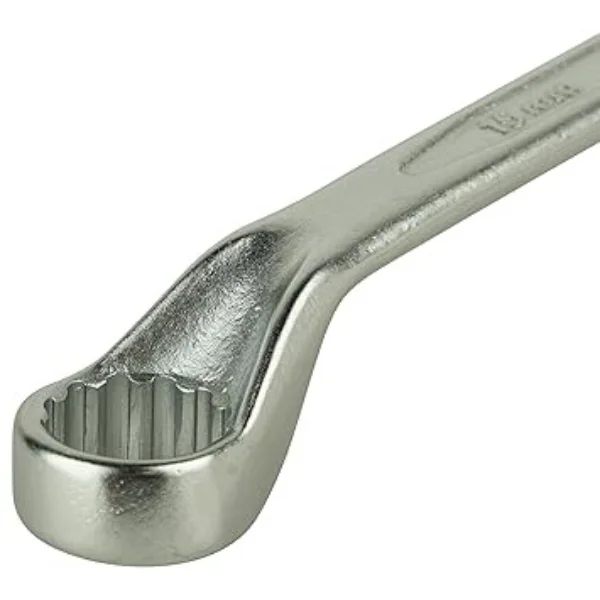

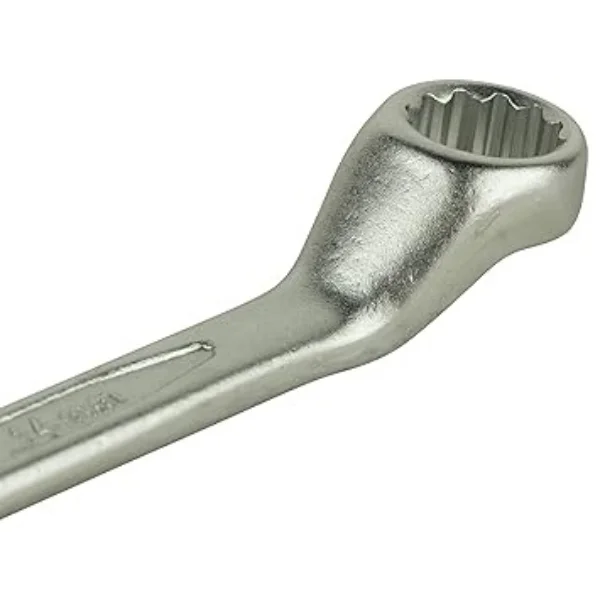

STANLEY 70-385E Shallow Offset Bi-Hex Ring CRV Spanner 14x15mm - Pan India Supplier

STANLEY 70-385E Application Context & Use Cases

The 14x15mm shallow offset configuration is selected when standard flat ring spanners cannot achieve adequate engagement due to component clearance restrictions.
Typical Industrial Applications

• Automotive engine and transmission assemblies
• Industrial machinery maintenance
• Plant utility equipment servicing
• Fasteners positioned near casings or structural frames
• Assembly line torque finishing

Why Shallow Offset Matters
Functional Advantage of Shallow Offset Geometry
Shallow offset design provides:

• Improved knuckle clearance
• Controlled angular approach
• Reduced rounding risk on partially exposed fasteners
• Better seating in recessed bolt heads

Compared to straight ring spanners, shallow offset enables access without increasing handle length or compromising torque alignment.

Selection Guidance – How to Choose Correctly
Incorrect spanner selection results in:

• Fastener rounding
• Slippage under torque
• Reduced tool life

Size Validation
Confirm fastener head dimension using calibrated vernier or gauge before selecting 14mm or 15mm side.
Ring Type Validation
Bi-hex (12-point) configuration is preferred when:

• Frequent repositioning is required
• Access angle is limited
• Fine engagement adjustment is necessary

Do not select if application demands 6-point heavy torque under extreme load.
Offset Validation
Choose shallow offset when:

• Fastener is slightly recessed
• Adjacent surface restricts flat tool placement
• Vertical clearance exists but side clearance is limited

---

Capacity & Torque Logic Example
Practical Torque Application Scenario
For a typical M8 or M10 fastener in automotive applications (depending on head size):

• Recommended torque range: 25–50 Nm (application dependent)
• CRV construction ensures deformation resistance within normal industrial torque loads.

Example:
If tightening a 14mm hex bolt requiring 40 Nm torque:

• Ensure full ring seating
• Maintain perpendicular handle alignment
• Avoid extension bars unless specified

Torque transfer efficiency depends on:

• Proper ring engagement
• Zero debris in fastener head
• Correct tool alignment

---

Failure Conditions & Misuse Risks

Improper use may result in:

• Ring distortion
• Chrome surface cracking
• Fastener edge rounding
• Tool slip injuries

Misuse Scenarios

• Using hammer impact
• Applying cheater bars beyond design load
• Using on worn or rounded bolts
• Applying on non-hex profiles

This model is not intended for impact loading.

Who Should NOT Buy This

This model may not be suitable if:

• You require deep offset clearance
• You need ratcheting functionality
• Application involves high-impact industrial torque
• Fasteners are non-standard metric
• You require insulated tools for electrical work

Procurement teams should validate operational environment before selection.

Material & Compatibility Table
Material Suitability

Environment Compatibility

Operational Handling & Installation Considerations
Correct Engagement Procedure

1. Clean bolt head
2. Align ring fully over hex
3. Apply steady torque
4. Avoid angular twisting

Storage Recommendations

• Store in dry tool cabinet
• Avoid acid exposure
• Maintain corrosion protection

Proper storage extends chrome finish integrity.

Commercial Clarity
We supply exact model STANLEY 70-385E with structured procurement support.
Lead Time

• Standard dispatch: 2–5 working days (subject to stock confirmation)

Dispatch Capability

• Pan-India dispatch
• Industrial packaging
• Bulk shipment supported

MOQ

• No mandatory MOQ for standard procurement
• Bulk pricing available for volume requirements

Customization Availability

• No modification to original STANLEY specification
• Only original manufacturer configuration supplied

Compliance / Certification

• GST-compliant invoicing
• Brand-authentic supply
• Model reference confirmed on invoice

Tender Compatibility

• Suitable for brand-specified tenders requiring STANLEY 70-385E
• Documentation support available upon request

Procurement Process
To process enquiry efficiently, provide:

• Company Name
• GSTIN (if applicable)
• Required Quantity
• Delivery Location
• Required Delivery Timeline
• Purchase Order (if available)

Process Flow

1. Submit RFQ
2. Model confirmation
3. Commercial quotation
4. Order confirmation
5. Dispatch with tax invoice

Comparison Table – Common Alternatives

Shallow offset is preferred when clearance is the limiting factor.

Selection Checklist (Decision Validation)
Before placing order, confirm:

• Exact model number: 70-385E
• Required size: 14x15mm
• Bi-hex ring configuration required
• Shallow offset clearance necessary
• Application within manual torque limits
• Quantity aligned with toolkit or maintenance plan
• GST billing required

If all are confirmed, this model is appropriate.

High-Intent FAQs

1. Is this the genuine STANLEY 70-385E model?

Yes. The supplied product corresponds exactly to model reference 70-385E.

2. Can this be used for heavy industrial torque?

It is designed for manual torque applications. Not suitable for impact tools.

3. Is bulk procurement supported?

Yes. Bulk quantities can be supplied subject to stock confirmation.

4. Do you supply across India?

Yes. Dispatch support available Pan-India.

5. Is GST invoice provided?

Yes. GST-compliant invoice issued with dispatch.

6. Can this replace a 6-point ring spanner?

Bi-hex design differs from 6-point heavy-duty use. Validate torque requirements before substitution.

7. What if I require other STANLEY ring spanner sizes?

Multiple sizes can be supplied under structured procurement.
