Pilz PNOZ X2.5P Safety Relay 24VDC (777308) Supplier

With a strong Pan India supply network, the company ensures availability for both new installations and retrofit projects where safety compliance and operational continuity are critical.

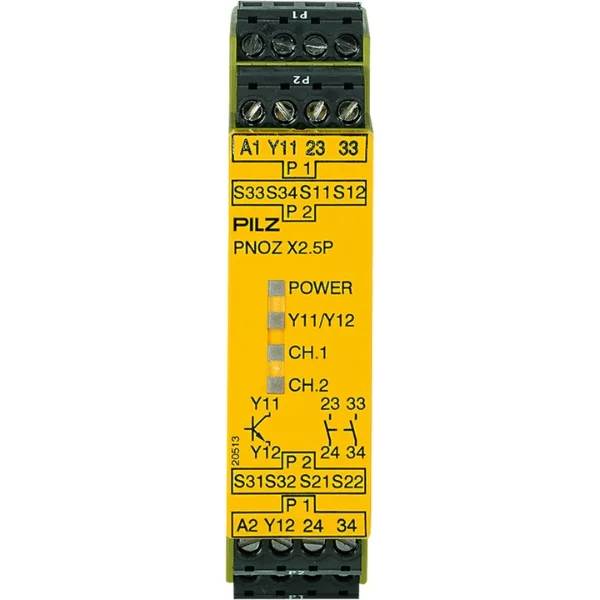

What is Pilz PNOZ X2.5P Safety Relay 24VDC (777308)

Pilz PNOZ X2.5P Safety Relay 24VDC (777308) is a safety monitoring relay designed to supervise emergency stop circuits and safety-related control functions in industrial machines. It ensures safe shutdown by monitoring input signals and controlling output contacts based on predefined safety logic, helping maintain compliance with machine safety requirements.

In practical plant conditions, safety relays like the Pilz PNOZ X2.5P are used to create a reliable interface between safety devices and machine control systems. These relays monitor signals from emergency stop buttons, safety gates, and interlock switches.

When a fault or unsafe condition is detected, the relay interrupts the control circuit, preventing hazardous motion. The “P” series typically indicates plug-in terminal configurations, making installation and replacement more manageable in control panels where maintenance access matters.

Unlike standard relays, safety relays are designed with redundancy and monitoring logic to detect internal failures, making them suitable for safety-critical applications.

Applications of Pilz PNOZ X2.5P Safety Relay 24VDC (777308)

• Emergency Stop Monitoring in Conveyor Systems
Used in logistics and material handling lines to ensure conveyors stop immediately when an emergency stop is activated.
• Safety Gate Interlocking in Robotic Cells
Ensures robotic arms or automated stations halt when protective doors are opened.
• Packaging Machinery Safety Circuits
Integrated into high-speed packaging lines where operator access requires reliable shutdown mechanisms.
• Textile Machinery Operator Protection
Applied in spinning and weaving machines to prevent accidental startup during maintenance.
• Process Plant Equipment Isolation
Used in pumps and agitators where access panels must disable operation when opened.
• Automotive Assembly Stations
Ensures safe stopping of welding or assembly equipment when safety devices are triggered.

Industries Using Pilz PNOZ X2.5P Safety Relay 24VDC (777308)

This safety relay is commonly deployed across:
• Automotive component manufacturing
• FMCG and packaging industries
• Textile and fabric processing units
• Food processing plants
• Logistics and warehouse automation
• Machinery OEMs and panel builders
Each of these industries relies on consistent safety circuit performance, especially in environments where human-machine interaction is frequent.

Operational Considerations

When integrating the Pilz PNOZ X2.5P Safety Relay 24VDC (777308), engineers typically evaluate:
• Control Panel Layout
Space availability and accessibility for plug-in terminal handling.
• Compatibility with Safety Devices
Works alongside emergency stop buttons, safety switches, and light curtains.
• Power Supply Stability
Requires a stable 24V DC input for reliable operation.
• Redundancy Requirements
Should align with machine risk assessment and safety category requirements.
• Integration with PLC Systems
Often used alongside PLC-based control systems, but operates independently for safety functions.

Customization Options

Indus Megamart does not offer product-level customization for this relay. However:
• Assistance is provided in selecting compatible relay variants
• Support is available for choosing suitable accessories
• Guidance is offered for matching application-specific safety requirements
This ensures correct product selection without altering the original manufacturer configuration.

Product Supply & Distribution Capability

Indus Megamart operates as a supplier and distributor of industrial automation components, including the Pilz PNOZ X2.5P Safety Relay 24VDC (777308).
Capabilities include:
• Sourcing from authorized channels
• Supporting bulk procurement requirements
• Handling repeat supply for OEMs and contractors
• Ensuring product availability for maintenance cycles
The company focuses on reliable sourcing rather than manufacturing, aligning with industrial procurement expectations.

Supply Across India

Indus Megamart supports Pan India delivery, including:
• NCR, Delhi, and surrounding industrial r             egions
• Maharashtra, Gujrat, Tamil Nadu, Karnataka
• Industrial clusters in Pune, Chennai, Ahmedabad, and Hyderabad
Logistics coordination ensures timely dispatch for both urgent replacements and planned installations.

Export Capability

Indus Megamart also supports export enquiries for industrial buyers outside India. Supply timelines, packaging standards, and documentation are handled based on destination requirements and order volume.

How to Choose the Right Pilz PNOZ X2.5P Safety Relay 24VDC (777308)

When evaluating this relay, procurement and engineering teams should consider:
• Required safety function (E-stop, gate monitoring, etc.)
• Input device compatibility
• Output contact requirements for control systems
• Panel space and mounting configuration
• Replacement vs new installation scenario
• Integration with existing safety architecture
For broader selection understanding, refer to internal resources such as safety relay selection guides and comparison pages.

Comparison Table

Selecting between similar safety relays requires evaluating functional compatibility rather than just part numbers.

Each variant serves a slightly different operational context.

Typical Use Case Scenarios

• Retrofit in Existing Machinery
Replacing older safety relays without redesigning the entire control panel.
• OEM Panel Assembly
Used by panel builders integrating safety circuits into new machines.
• Process Line Safety Upgrade
Adding safety compliance to legacy equipment.
• Maintenance Stocking
Kept as spare parts for quick replacement in critical production lines.

Procurement Process

To procure the Pilz PNOZ X2.5P Safety Relay 24VDC (777308):

1. Share your requirement via the contact page:
   https://www.indusmegamart.com/contact-us
2. Confirm application details (new or replacement)
3. Receive product availability and pricing details
4. Finalize order and dispatch schedule

For company background and supply capabilities, refer to:
https://www.indusmegamart.com/about-us

Common Buyer Concerns Before Ordering

• Compatibility with existing safety circuits
• Correct contact configuration selection
• Availability for urgent replacement
• Installation complexity in existing panels
• Long-term reliability in industrial environments
Addressing these early helps avoid integration delays.

FAQ Section

What safety functions does the Pilz PNOZ X2.5P support?
The relay is typically used for emergency stop monitoring and safety gate supervision. It ensures that machines stop safely when a fault or unsafe condition is detected. The exact application depends on how it is wired within the safety circuit.
Can this relay be used in retrofit projects?
Yes, it is commonly used in retrofit applications where older safety relays need replacement. Engineers must verify wiring compatibility and control logic alignment before installation to ensure proper operation.
How is it different from standard control relays?
Unlike standard relays, safety relays are designed with internal monitoring logic and redundancy. They can detect faults within the relay itself, making them suitable for safety-critical applications.
Does it require programming like a PLC?
No, safety relays like the PNOZ X2.5P operate using predefined wiring logic. They do not require programming but must be wired correctly based on the intended safety function.
Is it suitable for high-speed machinery?
Yes, it is often used in high-speed machinery where immediate shutdown is required. Its role is to ensure safe stopping when triggered by safety devices.
What should be checked before installation?
Engineers should verify supply voltage, contact configuration, compatibility with safety devices, and panel space. Proper wiring and testing are essential before commissioning.
Can it be integrated with PLC systems?
Yes, it can be used alongside PLC systems. However, safety relays typically operate independently to ensure safety functions are not compromised by control system failures.

Request a Quote for Pilz PNOZ X2.5P Safety Relay 24VDC (777308)

Indus Megamart supplies and distributes genuine industrial safety components across India. For pricing, availability, or technical clarification, submit your enquiry through the contact page.
For enquiries related to:
• Pricing and bulk orders
• Technical compatibility
• Product availability

Visit: https://www.indusmegamart.com/contact-us
