What is Pilz PNOZ 1 Safety Relay 24VAC, 3 NO / 1 NC – 775600

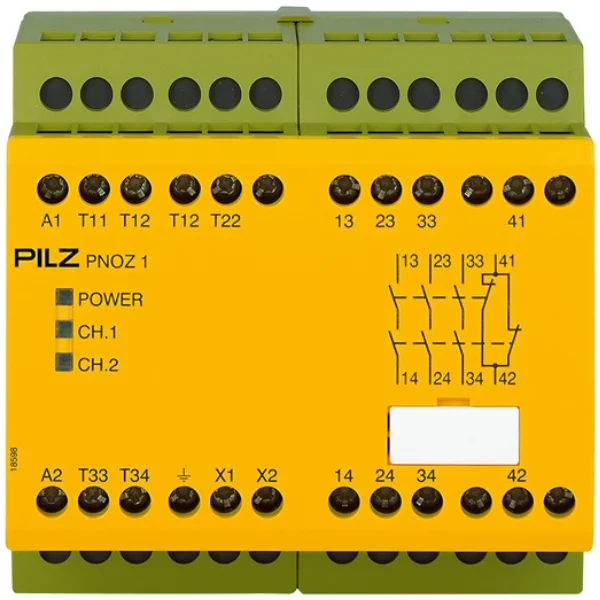

Pilz PNOZ 1 Safety Relay 24VAC, 3 NO / 1 NC – 775600 is a safety monitoring relay designed to supervise emergency stop circuits, guard switches, and safety inputs, ensuring safe machine shutdown. It provides multiple safety outputs (3 normally open and 1 normally closed) to control downstream equipment in industrial automation systems.

This relay is part of the PNOZ classic series, commonly used where discrete safety logic is required without programmable safety controllers. It acts as an interface between safety devices (such as emergency stop push buttons, safety gates, or light curtains) and machine actuators.

The configuration of 3 NO and 1 NC outputs allows flexible integration with contactors, motor starters, and PLC feedback loops. In practical plant environments, this relay is often selected for straightforward safety architectures where reliability and clarity of wiring are preferred over complex logic programming.

Applications of Pilz PNOZ 1 Safety Relay 24VAC, 3 NO / 1 NC – 775600

• Conveyor Emergency Stop Systems
In conveyor lines, unexpected jams or operator intervention requires immediate shutdown. The relay ensures that emergency stop signals interrupt power safely while maintaining restart interlocks.
• CNC Machine Guard Monitoring
Used to monitor door interlocks in CNC machining centers, preventing operation when access doors are open and ensuring controlled restart conditions.
• Packaging Line Safety Circuits
In high-speed packaging equipment, the relay helps isolate hazardous motion zones when safety gates are opened during maintenance or product changeovers.
• Material Handling Systems
In automated warehouses, the relay is integrated into safety circuits controlling lifts, shuttles, or transfer units to prevent unintended motion during human interaction.
• Press Machines and Mechanical Equipment
Supports two-channel safety circuits for presses, ensuring operator safety during manual loading or setup operations.
• HVAC Industrial Equipment Safety
Applied in large HVAC systems where maintenance access requires safe shutdown of rotating equipment or high-voltage components.
For deeper application insights, refer to the internal safety relay applications guide on your website’s resource section.

Industries Using Pilz PNOZ 1 Safety Relay 24VAC, 3 NO / 1 NC – 775600

This relay is typically deployed in industries where discrete safety control is essential:
• Automotive component manufacturing
• Food and beverage processing plants
• Pharmaceutical production units
• Logistics and warehousing automation
• Textile and printing machinery
• General industrial fabrication facilities
Each of these sectors values predictable safety response and ease of integration with existing control panels.

Operational Considerations

When deploying the Pilz PNOZ 1 Safety Relay 24VAC, 3 NO / 1 NC – 775600, several practical factors influence performance:
• Electrical Environment
Stable 24VAC supply is required. Voltage fluctuations or improper earthing can affect relay reliability.
• Wiring Architecture
Dual-channel wiring for safety inputs is often recommended for higher safety integrity.
• Integration with Contactors
The relay typically controls external contactors; correct feedback loop wiring is necessary to detect faults such as welded contacts.
• Panel Space and Layout
Installed in control panels alongside PLCs, VFDs, and protection devices. Adequate spacing and labeling improve maintainability.
• Maintenance Accessibility
Relay replacement or troubleshooting should be possible without disrupting entire control systems.

Customization Options

As a standard industrial safety component, this relay is not customized at the product level. However, system-level flexibility exists:
• Integration into custom control panels
• Selection of compatible contactors and safety devices
• Wiring configuration adjustments (manual reset, auto reset, feedback loops)
Indus Megamart supports selection and compatibility guidance rather than product modification.

Product Supply & Distribution Capability

Indus Megamart operates as a supplier and distributor of industrial automation components, including Pilz safety relays. The company focuses on:
• Sourcing genuine products through authorized channels
• Maintaining availability for repeat industrial demand
• Supporting procurement teams with product identification and equivalents
• Coordinating dispatch based on urgency and project timelines
Learn more about the company’s operational approach on the About page:
https://www.indusmegamart.com/about-us

Supply Across India

Indus Megamart supports pan-India supply for the Pilz PNOZ 1 Safety Relay 24VAC, 3 NO / 1 NC – 775600.
• Dispatch from central inventory locations
• Delivery to industrial zones, OEM facilities, and EPC project sites
• Coordination with logistics partners for time-sensitive requirements
• Support for bulk and repeat orders
This ensures consistent availability for maintenance, retrofits, and new installations.

Export Capability

For international buyers, Indus Megamart can support export supply based on order volume and documentation requirements.
• Export packaging suitable for industrial components
• Documentation support for international shipments
• Coordination with freight and logistics partners
Export feasibility depends on project scope and destination regulations.

H2: How to Choose the Right Pilz PNOZ 1 Safety Relay 24VAC, 3 NO / 1 NC – 775600

Procurement and engineering teams should evaluate:
• Voltage Compatibility
Ensure 24VAC supply aligns with control panel design.
• Output Requirements
Confirm that 3 NO and 1 NC outputs meet actuator and feedback needs.
• Safety Circuit Complexity
For simple circuits, this relay is suitable. For complex logic, consider programmable safety controllers.
• Integration with Existing Systems
Check compatibility with PLC inputs, contactors, and safety devices.
• Maintenance Strategy
Availability of replacement units and ease of troubleshooting should be considered.
For detailed selection comparisons, refer to your internal “Safety Relay Selection Guide.”

Comparison Table

Understanding where this relay fits within the PNOZ range helps in procurement decisions.

Typical Use Case Scenarios

• Retrofitting Older Machinery
Replacing outdated safety relays in legacy equipment without redesigning entire control systems.
• OEM Machine Panels
Used in standard machine builds where safety circuits are predefined and repeatable.
• Maintenance Replacement
Quick replacement in existing panels where downtime needs to be minimized.
• Standalone Safety Circuits
Ideal where PLC-based safety is not required and discrete logic is sufficient.

Procurement Process

To procure the Pilz PNOZ 1 Safety Relay 24VAC, 3 NO / 1 NC – 775600:
• Share application or part number details
• Confirm quantity and delivery location
• Discuss compatibility if replacing an existing unit
• Request quotation and lead time
Start your enquiry here:
https://www.indusmegamart.com/contact-us

Common Buyer Concerns Before Ordering

• Is this relay compatible with my existing panel wiring?
Compatibility depends on voltage, contact configuration, and wiring logic.
• Can it replace another PNOZ model?
Not always directly; output configuration and supply voltage must match.
• Availability for urgent requirements
Stock availability may vary; advance enquiry is recommended.
• Integration with PLC systems
Works as a safety interface; does not replace PLC logic.

FAQ Section

What is the main function of the Pilz PNOZ 1 Safety Relay 24VAC, 3 NO / 1 NC – 775600?
It monitors safety inputs such as emergency stop buttons or guard switches and ensures that hazardous machine movements are stopped safely. It controls output circuits to isolate power and prevent unintended restart conditions.
Where is this safety relay typically installed?
It is installed inside control panels of industrial machines, often alongside PLCs, contactors, and motor drives. It connects directly to safety input devices and output actuators.
Can this relay be used for emergency stop circuits?
Yes, it is commonly used in emergency stop applications where immediate and reliable shutdown of machinery is required, particularly in discrete safety architectures.
How does it differ from programmable safety controllers?
This relay performs fixed safety logic through wiring, whereas programmable safety controllers allow configurable logic via software. The relay is preferred for simpler applications.
What should be checked before selecting this relay?
Engineers should verify supply voltage, number of outputs, compatibility with existing safety devices, and whether the safety circuit requires additional monitoring features.
Is it suitable for retrofitting older machines?
Yes, it is often used to replace legacy safety relays in older machines where upgrading to programmable systems is not practical.
Does it require regular maintenance?
Routine inspection of wiring connections and relay operation is recommended. In critical systems, periodic testing of safety circuits ensures continued reliability.
