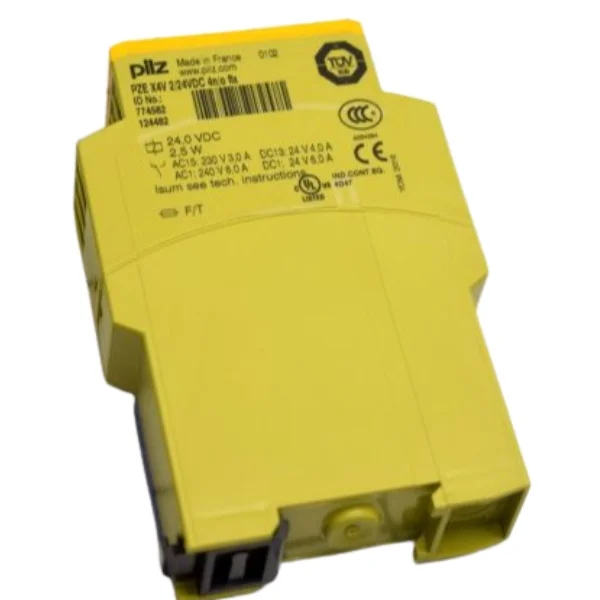

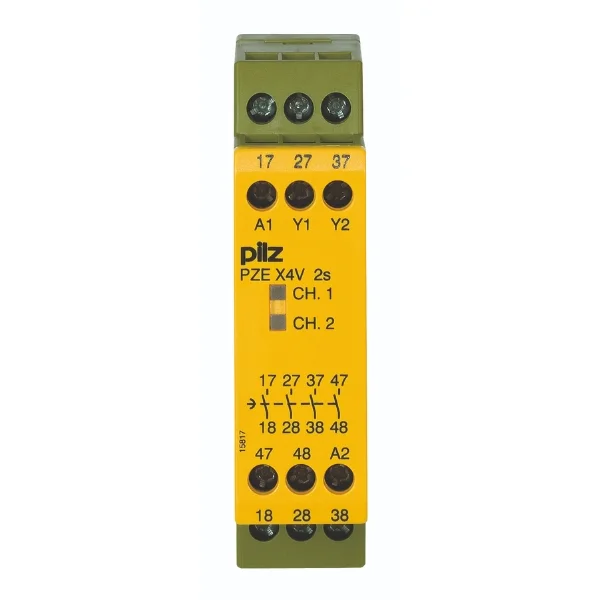

Pilz 774582 PZE X4V Safety Relay 24VDC 4NO Supplier

Industries such as packaging, material handling, automotive assembly, and process plants rely on this relay for dependable safety switching. With pan-India dispatch capability and procurement support, Indus Megamart ensures availability for maintenance replacements, new panels, and safety upgrades.

What is Pilz 774582 PZE X4V Safety Relay 24VDC 4NO

Pilz 774582 PZE X4V Safety Relay 24VDC 4NO is a safety monitoring relay designed to supervise emergency stop circuits, safety gates, and protective devices in machinery. Operating on 24VDC, it provides four normally open safety contacts for reliable shutdown of hazardous motion when a safety condition is violated.

This relay forms part of a hardwired safety architecture where electrical redundancy and forced-guided contacts are used to ensure safe machine stoppage. It is typically installed inside control panels to monitor input devices such as E-Stop buttons, interlock switches, and safety sensors.

The four NO outputs allow multiple safety contactors or control circuits to be switched simultaneously. This makes it suitable for machinery where several actuators must be de-energized during a fault or emergency condition.

Applications of Pilz 774582 PZE X4V Safety Relay 24VDC 4NO

1. Emergency Stop Monitoring in Packaging Lines
   Ensures instant shutdown of conveyors, sealers, and cutters when E-Stop is pressed.
2. Safety Gate Monitoring in Robotic Cells
   Disconnects robot drives when access doors are opened.
3. Hydraulic Press Protection Circuits
   Stops ram movement when dual-channel safety buttons are released.
4. Material Handling Conveyors
   Monitors pull-cord switches across long conveyor sections.
5. Automated Assembly Stations
   Ensures operator safety during part loading and unloading.
6. Pharmaceutical Filling Machines
   Protects operators during cleaning and maintenance access.
7. CNC and Machining Centers
   Integrates with guard switches to prevent spindle operation when guards are open.

Industries Using Pilz 774582 PZE X4V Safety Relay 24VDC 4NO

• Automotive and auto-component manufacturing
• Packaging and bottling plants
• Warehousing and conveyorized logistics hubs
• Pharmaceutical and cleanroom equipment
• Food processing machinery
• Machine tool and CNC equipment manufacturing
• Material handling system integrators

Operational Considerations

• Designed for control panel environments with stable 24VDC supply
• Compatible with dual-channel safety inputs for redundancy
• Requires correct wiring to contactors or safety relays downstream
• Must be integrated as per machine risk assessment and safety category requirement
• Works alongside safety contactors, guard switches, and E-Stop devices

Customization Options

While the relay itself is a fixed configuration product, flexibility is achieved through:

• Wiring logic for manual or auto reset
• Integration with different safety sensors and switches
• Pairing with safety contactors for higher load switching
• Use in cascaded safety architectures with additional relays

Product Supply & Distribution Capability

As a supplier and distributor, Indus Megamart sources and supplies genuine Pilz safety relays for OEMs, panel builders, and maintenance teams. Support is provided for part identification, replacement matching, and bulk procurement for projects.

Supply Across India

Indus Megamart supports dispatch of the Pilz 774582 PZE X4V Safety Relay to industrial locations across India with logistics coordination for urgent shutdown replacements and project schedules.

How to Choose the Right Pilz 774582 PZE X4V Safety Relay 24VDC 4NO

Buyer Checklist

• Confirm 24VDC control voltage availability
• Verify need for 4NO safety outputs
• Identify type of safety device being monitored
• Check panel space for DIN rail mounting
• Ensure compatibility with downstream safety contactors
• Review machine risk assessment category

Comparison Table

This table helps procurement teams compare typical relay considerations.

Typical Use Case Scenarios

1. Robotic welding cell with dual access gates
2. Long conveyor system with multiple pull-cord switches
3. Press machine with two-hand control and E-Stop integration
4. Automated palletizer with perimeter guarding

Procurement Process

For pricing, availability, and technical confirmation, buyers can connect directly through the Contact Page:
https://www.indusmegamart.com/contact-us
Company background and supply capability can be reviewed here:
https://www.indusmegamart.com/about-us

Common Buyer Concerns Before Ordering

• Compatibility with existing safety wiring
• Difference between PZE and PNOZ series
• Availability for urgent replacement
• Correct reset configuration
• Integration with contactors and PLC interlocks

FAQ SECTION

What does the Pilz 774582 PZE X4V Safety Relay monitor?
It monitors emergency stop buttons, guard switches, and other safety devices to ensure machinery stops safely when a fault or unsafe condition occurs.
Why are four NO outputs important in this relay?
Four outputs allow multiple contactors or circuits to be switched off simultaneously, which is essential in machines with several hazardous actuators.
Can this relay be used with safety PLCs?
Yes, it can work alongside safety PLC architectures as a hardwired safety layer or redundancy mechanism.
Is manual reset mandatory for this relay?
Reset configuration depends on wiring. Both manual and automatic reset logic can be implemented as per safety requirements.
Where is this relay typically installed?
It is mounted on DIN rail inside electrical control panels of machines and automation systems.
How is this different from standard control relays?
It uses forced-guided contacts and is designed specifically for safety monitoring, unlike general control relays.
What devices are connected to its inputs?
E-Stop buttons, safety gates, interlock switches, pull-cord switches, and light curtains.
