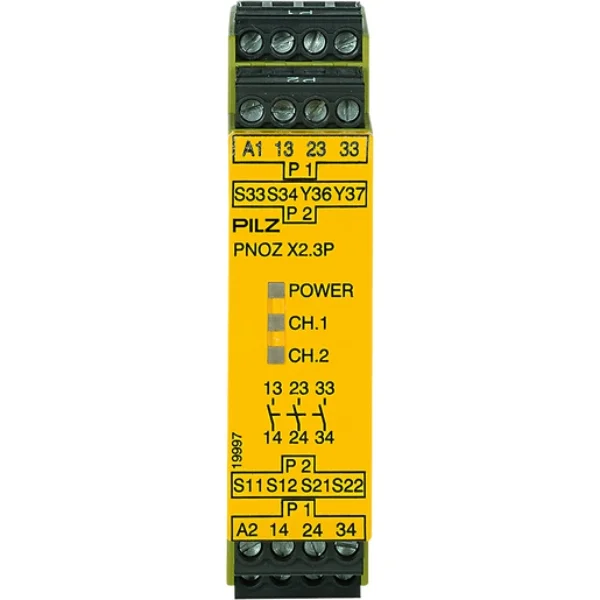

Pilz PNOZ X2.3P Safety Relay 24VAC/DC (777304) Supplier

As a supplier and distributor, Indus Megamart supports procurement teams, OEMs, and contractors with reliable sourcing, documentation assistance, and nationwide delivery for safety-critical components.

What is Pilz PNOZ X2.3P Safety Relay 24VAC/DC (777304)

Pilz PNOZ X2.3P Safety Relay 24VAC/DC (777304) is an industrial safety relay designed to monitor emergency stop circuits, safety gates, and control system interlocks. It processes input signals and ensures safe switching of outputs to prevent hazardous machine operations in case of faults or unsafe conditions.

The Pilz PNOZ X2.3P Safety Relay 24VAC/DC (777304) is part of the widely used PNOZ X series, known for its role in standalone safety applications. It is typically used in circuits where safety devices such as emergency stop buttons, safety switches, or interlock mechanisms must be continuously monitored.

In practical deployment, the relay acts as an interface between safety input devices and machine control outputs. When a fault condition is detected—such as an open safety gate or triggered emergency stop—the relay interrupts the control circuit, ensuring machinery transitions into a safe state.

This model is commonly selected where fixed-function safety logic is sufficient and integration with programmable safety systems is not required.

Applications of Pilz PNOZ X2.3P Safety Relay 24VAC/DC (777304)

• Emergency Stop Circuit Monitoring
Used in production lines to ensure machines shut down immediately when emergency stop buttons are activated, reducing operator risk.
• Safety Gate Supervision in Enclosures
Installed in machine guarding systems where access doors must be monitored before allowing machine operation.
• Packaging Equipment Safety Control
Ensures safe stoppage in case of operator intervention in automated packaging lines.
• Conveyor System Interlocking
Prevents unintended startup when maintenance personnel are present within conveyor zones.
• Press and Forming Machine Safety
Monitors dual-channel inputs in mechanical presses where operator safety depends on immediate stop response.
• Assembly Line Automation Panels
Used in control panels managing robotic or semi-automatic assembly cells requiring safety isolation.
For a broader understanding of how safety relays are used in different setups, refer to internal resources such as “Safety Relay Applications in Industrial Automation Systems.”

Industries Using Pilz PNOZ X2.3P Safety Relay 24VAC/DC (777304)

The Pilz PNOZ X2.3P Safety Relay 24VAC/DC (777304) is commonly used across industries where operator safety and machine compliance are critical:
• Automotive component manufacturing
• Food processing and packaging plants
• Material handling and logistics hubs
• Metal fabrication and press shops
• Pharmaceutical manufacturing units
• Industrial OEM machine builders
Each industry uses the relay differently based on process risk levels, safety standards, and machine configurations.

Operational Considerations

When integrating the Pilz PNOZ X2.3P Safety Relay 24VAC/DC (777304), several operational factors influence performance:
• Compatibility with input devices such as E-stop switches and safety interlocks
• Control panel design and available DIN rail space
• Required safety category or performance level
• Integration with PLC or conventional control systems
• Electrical noise conditions in industrial environments
Proper wiring and validation are critical to ensure that the relay performs as intended in safety-critical applications.

Customization Options

Since Indus Megamart operates as a supplier/distributor, product-level customization is not offered. However, procurement flexibility includes:
• Assistance in selecting compatible relay variants
• Support for identifying equivalent or alternative models
• Guidance on integration with existing safety systems
• Batch procurement for project-based requirements

Product Supply & Distribution Capability

Indus Megamart supplies the Pilz PNOZ X2.3P Safety Relay 24VAC/DC (777304) through an established sourcing and distribution network.
• Verified sourcing channels
• Support for bulk and project orders
• Coordination with OEMs and contractors
• Availability across industrial hubs
Learn more about the company’s sourcing approach on the About page:
https://www.indusmegamart.com/about-us

Supply Across India

Indus Megamart supports Pan India supply with structured logistics handling:
• Dispatch to major industrial regions including NCR, Maharashtra, गुजरात, Tamil Nadu, and Karnataka
• Coordination with project timelines
• Support for urgent replacement requirements
• Packaging suitable for industrial transit

How to Choose the Right Pilz PNOZ X2.3P Safety Relay 24VAC/DC (777304)

When evaluating this relay for procurement, buyers should consider:
• Required safety function (E-stop, gate monitoring, dual-channel logic)
• Voltage compatibility with control systems
• Number of required safety outputs
• Reset configuration (manual vs automatic)
• Compliance requirements of the plant
For comparison with similar models, refer to internal guides such as “PNOZ X Series Relay Comparison Guide.”

Comparison Table

The Pilz PNOZ X2.3P Safety Relay 24VAC/DC (777304) is often evaluated alongside other PNOZ X series relays depending on application complexity.

Selection depends on required control logic and system scale.

Typical Use Case Scenarios

• Standalone Machine Safety Panel
Used in small machines where a dedicated safety relay manages emergency stop and interlock signals.
• Retrofit Safety Upgrade
Installed in older machinery to improve safety compliance without redesigning the entire control system.
• Packaging Line Safety Integration
Acts as a safety layer between operator interface and automated equipment.
• Material Handling Safety Loop
Ensures conveyor systems remain inactive during maintenance access.

Procurement Process

To procure the Pilz PNOZ X2.3P Safety Relay 24VAC/DC (777304):

1. Share application requirements or part number
2. Confirm compatibility and availability
3. Request quotation and delivery timeline
4. Finalize order and dispatch

For enquiries, visit:
https://www.indusmegamart.com/contact-us

Common Buyer Concerns Before Ordering

• Whether the relay matches required safety category
• Compatibility with existing control panel wiring
• Availability for urgent replacement
• Differences between similar PNOZ X models
• Long-term availability for maintenance stock
Indus Megamart supports buyers with pre-purchase clarification to reduce procurement risk.

FAQ Section

What does the Pilz PNOZ X2.3P Safety Relay 24VAC/DC (777304) do?
It monitors safety input devices such as emergency stops or safety gates and ensures that machinery stops safely when a fault or unsafe condition is detected. It acts as an interface between safety inputs and control outputs.
Is Pilz PNOZ X2.3P suitable for emergency stop circuits?
Yes, it is commonly used for emergency stop applications in industrial systems. It is designed to detect signal interruptions and trigger safe shutdown of machinery.
Can this relay be used with PLC systems?
It can be used alongside PLC systems but operates independently for safety functions. It is typically used where safety logic must remain separate from standard control logic.
What is the difference between PNOZ X2.3P and other PNOZ relays?
The main differences lie in output configuration, application flexibility, and complexity. The X2.3P is generally suited for simpler safety circuits compared to higher models.
Does this relay require regular maintenance?
Safety relays typically require minimal maintenance but should be periodically checked during system inspections to ensure correct operation and wiring integrity.
How do I select the right safety relay for my application?
Selection depends on safety function requirements, input devices, output configuration, and compliance needs. Consulting with a supplier like Indus Megamart helps ensure correct selection.

Request a Quote for Pilz PNOZ X2.3P Safety Relay 24VAC/DC (777304)

Indus Megamart supplies and distributes the Pilz PNOZ X2.3P Safety Relay 24VAC/DC (777304) across India with procurement support for industrial buyers.
