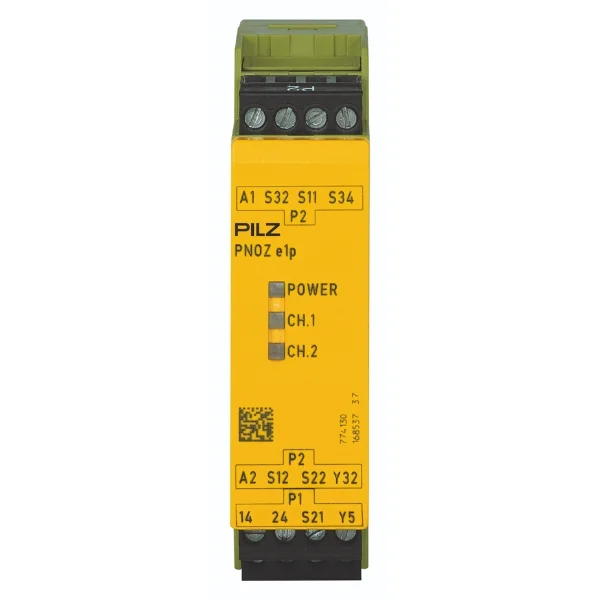

Pilz 774130 PNOZ e1p Safety Relay Supplier

As a pan-India supplier and distributor, Indus Megamart supports procurement teams, panel builders, and maintenance engineers with timely availability and sourcing support for genuine Pilz safety components.

What is Pilz 774130 PNOZ e1p Safety Relay

Pilz 774130 PNOZ e1p Safety Relay is a 24VDC safety monitoring relay designed to evaluate emergency stop circuits, safety gate switches, and interlock devices in industrial machinery. It provides positively guided safety outputs that help stop hazardous motion when a fault or unsafe condition is detected.

This safety relay belongs to the PNOZ e series, known for straightforward wiring, compact panel integration, and dependable safety monitoring. It is typically selected where a simple, hard-wired safety solution is preferred over programmable safety controllers. The relay monitors input devices such as E-stops and guard switches and, upon detecting a fault or unsafe state, de-energizes its safety contacts to isolate power to hazardous machine elements.

For panel builders and plant engineers, this relay offers a predictable, easy-to-diagnose safety architecture without the need for complex programming.

Applications of Pilz 774130 PNOZ e1p Safety Relay

1. Emergency Stop Monitoring in Conveyor Systems
   Ensures conveyors stop immediately when an E-stop is pressed anywhere along the line.
2. Safety Gate Interlocking in Robotic Cells
   Prevents robot motion when access doors or guards are opened.
3. Press and Forming Machine Safeguarding
   Monitors dual-channel safety inputs from operator protection devices.
4. Packaging Machine Safety Circuits
   Used where frequent operator access requires reliable interlock monitoring.
5. Automated Assembly Stations
   Isolates motion systems when safety light curtains or switches are triggered.
6. Material Handling Equipment
   Integrated into control panels for cranes, lifts, and transfer systems.
7. Process Plant Access Control
   Monitors safety doors in hazardous process areas.

Industries Using Pilz 774130 PNOZ e1p Safety Relay

• Automotive component manufacturing
• Food and beverage processing
• Pharmaceuticals and cleanroom production
• Warehousing and logistics automation
• Machine building and panel integration
• Metal fabrication and forming plants
• Chemical and process industries

Operational Considerations

The Pilz 774130 PNOZ e1p Safety Relay is suited for control panels where:

• Space is limited and modular relays are preferred
• Hard-wired safety logic is required instead of programmable safety PLCs
• Maintenance teams need visible, diagnosable safety architecture
• Compatibility with safety switches, E-stops, and interlocks is required
• 24VDC control supply is standard across the panel

Proper wiring practices and separation from standard control circuits are important for maintaining safety integrity.

Customization Options

This product is supplied as a standard safety relay. Customization is not applicable, but configuration flexibility is achieved through:

• Wiring logic (manual/auto reset)
• Choice of external safety devices
• Integration with contactors and drives

Product Supply & Distribution Capability

Indus Megamart sources and supplies genuine Pilz safety relays to OEMs, panel builders, contractors, and maintenance teams. With a large industrial catalog and established sourcing channels, the company supports urgent and scheduled requirements for safety components across projects.
Learn more about the company’s background on the About page:
https://www.indusmegamart.com/about-us

Supply Across India

From its operational base, Indus Megamart supports dispatch and delivery across India, including industrial hubs, project sites, and manufacturing zones. Logistics coordination ensures that safety relays reach panel builders and plant sites within project timelines.
How to Choose the Right Pilz 774130 PNOZ e1p Safety Relay
Procurement and engineering teams should verify:

• Type of safety device being monitored (E-stop, gate, interlock)
• Required number of safety outputs
• Reset logic preference
• Compatibility with existing contactors and drives
• Panel space and DIN rail availability

Required safety circuit architecture

Comparison Table

The PNOZ e1p is often evaluated against other safety relays depending on output needs and application complexity.

Typical Use Case Scenarios

1. A packaging line where operators frequently open guards for changeovers.
2. A conveyor transfer system with multiple emergency stop points.
3. A robotic welding cell with interlocked safety gates.
4. A machine retrofit project replacing outdated safety relays.

Procurement Process

To procure the Pilz 774130 PNOZ e1p Safety Relay, share your requirement with the Indus Megamart team via the Contact page:
https://www.indusmegamart.com/contact-us
Include details of your application, quantity, and delivery location for faster processing.

Common Buyer Concerns Before Ordering

• Verifying genuine Pilz product supply
• Compatibility with existing safety devices
• Delivery timelines for shutdown projects
• Correct relay selection for the safety circuit
• Support for repeat or bulk orders

Request a Quote for Pilz 774130 PNOZ e1p Safety Relay

Indus Megamart supplies and distributes Pilz safety relays across India for industrial automation and machine safety requirements. Reach out for pricing, availability, and procurement support.
For pricing enquiries, technical discussion, or order placement, visit:
https://www.indusmegamart.com/contact-us

FAQs

What devices can Pilz 774130 PNOZ e1p Safety Relay monitor?
It is commonly used with emergency stop pushbuttons, safety gate switches, and interlock devices. The relay evaluates the status of these devices and ensures hazardous motion is stopped if an unsafe condition is detected.
Is this relay suitable for robotic cell safety?
Yes, it is frequently used to monitor interlocked doors and access points in robotic work cells where immediate shutdown is required when guards are opened.
Does the relay require programming?
No. This is a hard-wired safety relay designed for straightforward wiring without software configuration, making it easier for maintenance and panel teams.
Can it be used in retrofit safety panels?
It is well suited for retrofit projects where older safety relays are replaced with modern, compact, DIN-rail mounted units.
What is the typical reset method?
Depending on wiring, the relay can support manual or automatic reset, allowing flexibility based on safety circuit design.
How does it differ from a safety PLC?
A safety PLC handles complex logic through programming, whereas this relay provides a simpler, reliable solution for standard safety monitoring tasks.
Is it compatible with standard 24VDC panels?
Yes, it is designed for 24VDC control systems commonly found in industrial automation panels.
How can I confirm suitability for my application?
Share your safety circuit details with Indus Megamart through the Contact page for guidance on correct selection.
