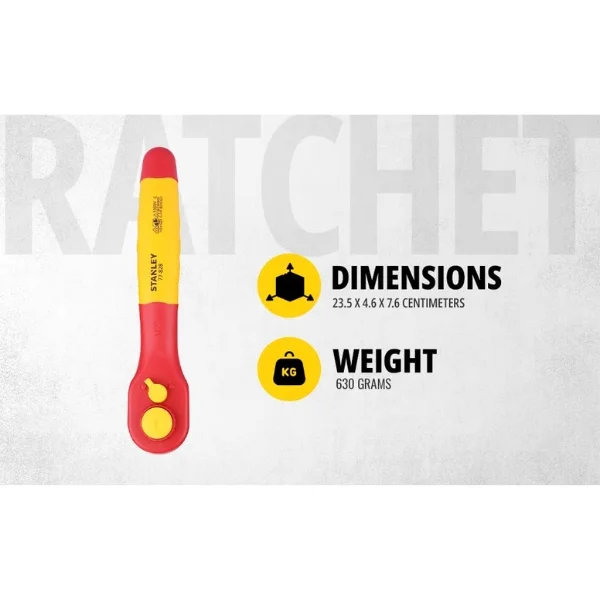

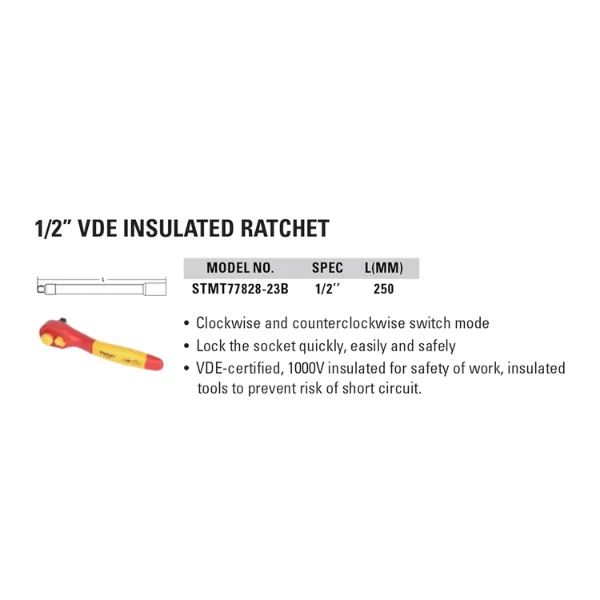

STANLEY STMT77828-23B 1/2" VDE Ratchet (250mm)

This is a model-specific, compliance-sensitive industrial tool supplied with GST documentation and traceable commercial invoicing for institutional procurement.

STANLEY VDE Ratchet 250mm Application & Use

Typical Deployment Environments
LV panel assembly and termination
Switchgear installation and maintenance
Busbar connection tightening
Power distribution board servicing
Industrial plant shutdown maintenance
Utility substation auxiliary work
Why VDE Compliance Matters in These Environments
Electrical Risk Exposure
In energized or potentially energized systems up to 1000V AC, tool insulation is not optional. IEC 60900 compliance ensures:
Dielectric strength testing
Insulation integrity validation
Controlled manufacturing process
Routine batch testing
Non-insulated ratchets introduce arc flash and shock risk. This model is intended only where insulated tooling is required under internal safety policy or tender specification.

Selection Guidance – Choosing Correctly

Before selecting this model, confirm:
Required drive size (1/2” vs 3/8”)
Voltage exposure risk (up to 1000V AC)
Socket compatibility (insulated sockets required)
Torque requirement range
Working clearance space (250mm length suitability)
When 250mm Length Is Appropriate
Standard panel depth applications
Moderate torque fastening
Controlled mechanical access
If extended reach is required, a different length model should be evaluated.

Capacity / Real-World Application Logic

Torque Application Context
This ratchet is used with 1/2" insulated sockets for tightening:
Busbar bolts
Terminal studs
Cable lug connections
Mounting bolts within panel boards
Practical Example
If tightening an M10 electrical terminal bolt:
Typical tightening torque range: 35–50 Nm (application dependent)
A 250mm ratchet provides adequate leverage without overextension
Controlled ratcheting prevents sudden slip
This is not a torque wrench. Final calibrated torque validation must be done separately where specification demands.

Failure Conditions & Misuse Risks

This tool is insulated for electrical protection, not mechanical abuse.
Do Not Use For:
Hammering
Striking
Use with impact drivers
Exposure to open flame
Use with non-insulated extensions in live circuits
Cutting operations
Insulation Failure Risk Factors
Storage near heat sources
Chemical exposure
Surface cuts or abrasion
Unauthorized grinding or modification
Damaged insulation invalidates compliance and introduces liability risk.

Material & Compatibility Table

Only insulated accessories should be used during energized operations.

Operational Handling & Installation Considerations

Handling Protocol
Inspect insulation before use
Clean surface contamination
Store separately from cutting tools
Avoid tool box abrasion against sharp metal edges
Installation Context
During panel installation:
Ensure no exposed metal contacts insulation surface
Avoid twisting beyond rated mechanical limit
Do not extend using pipe for added leverage
Insulated tools require controlled usage discipline.

Commercial Clarity

Lead Time
Standard dispatch: 2–5 working days (subject to stock confirmation)
Dispatch Capability
Centralized dispatch model
PAN India shipping via insured logistics partners
MOQ
No fixed MOQ
Bulk procurement pricing available on quantity discussion
Customization
No modification permitted (factory specification only)
Compliance & Certification
Supplied as genuine branded product
IEC 60900 compliant
GST-compliant invoice
Model-specific documentation available upon request
Tender Compatibility
This product is suitable for tenders specifying:
Branded VDE tools
IEC 60900 compliance
1000V insulated hand tools
Brand and model reference can be quoted in tender documentation where allowed.

Procurement Process

• To issue a formal quotation, provide:
• Required quantity
• Delivery location (city/state)
• GST number
• Required delivery timeline
• Whether documentation copies are needed
• Process Flow
• Enquiry submission
• Quantity and commercial validation
• Formal quotation
• Purchase order confirmation
• Dispatch commitment with tracking

Institutional buyers may request proforma invoice prior to order release.

Comparison Table – Decision Validation

This model is selected where compliance documentation matters.

Selection Checklist

Before confirming purchase, validate:

• 1/2" drive required
• 1000V insulation mandatory
• IEC 60900 compliance required
• Live or near-live working environment
• Insulated sockets available
• Not intended for impact use
• Torque wrench available if calibrated torque required

If all are confirmed, this model is technically aligned.

High-Intent FAQs

1. Is this ratchet individually tested for 1000V?
It is manufactured and tested as per IEC 60900 standards for insulated tools. Certification compliance follows brand manufacturing process.
2. Can it be used with normal 1/2" sockets?
Only insulated sockets should be used for live applications. Using non-insulated sockets compromises safety.
3. Is this suitable for 11kV systems?
It is rated for 1000V AC insulated work. It is not designed for high-voltage transmission exposure.
4. Does it replace a torque wrench?
No. It is a ratcheting tool. Calibrated torque validation requires a torque wrench.
5. Can insulation be repaired if damaged?
No. Damaged insulation invalidates compliance. Tool should be replaced.
6. Is batch verification available?
Model and branding traceability are available. Documentation can be shared upon commercial confirmation.
7. Can bulk quantities be supplied?
Yes, subject to availability and confirmation at time of enquiry.
