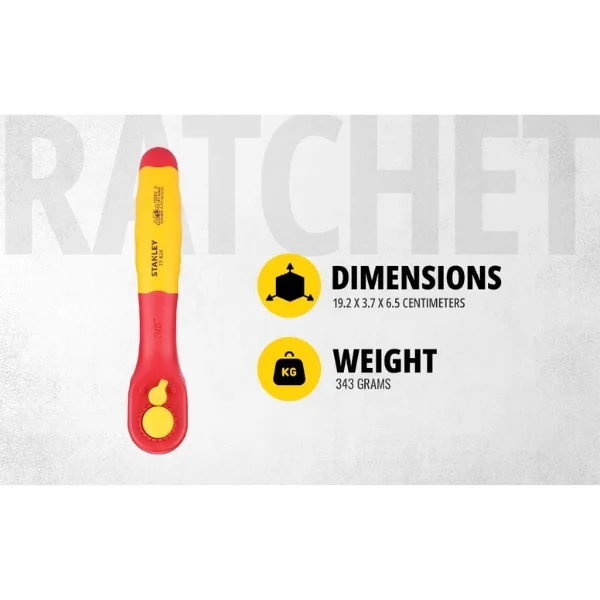

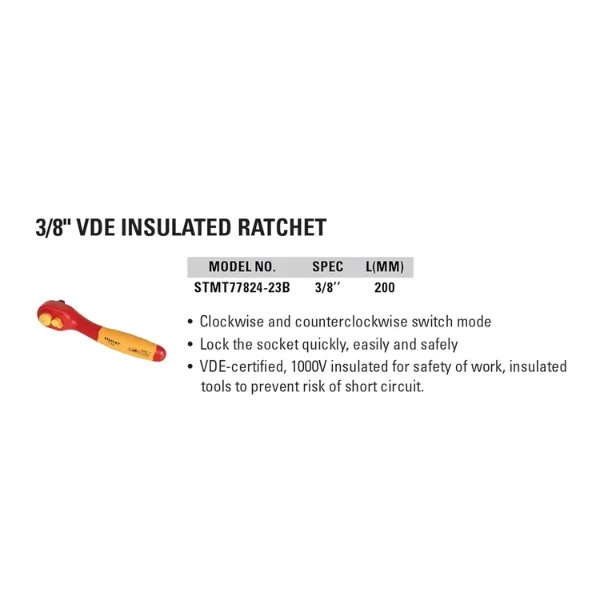

STANLEY STMT77824-23B 3/8" VDE Ratchet (200mm)

It is specified for controlled electrical maintenance environments where operator safety, certified insulation, and traceable branded supply are mandatory.

STANLEY STMT77824-23B 3/8" Application Context & Use Cases

This model is used where torque application is required on hex fasteners within energized or potentially energized electrical systems.
Typical Deployment Environments
LT/HT electrical panels
MCC and PCC panels
Switchgear maintenance
Utility distribution boards
Industrial automation cabinets
Data center electrical infrastructure
Rail and metro electrical installations
Functional Role in Electrical Maintenance

Why an Insulated Ratchet Is Required

Standard chrome ratchets are not acceptable in controlled electrical environments. A VDE-certified ratchet:
Prevents accidental short-circuit bridging
Reduces operator shock risk
Supports compliance under internal EHS protocols
Aligns with IEC 60900 insulation requirements
Where electrical panels are live-tested or partially energized during maintenance, this tool becomes a compliance requirement—not a convenience.

Insulation & Compliance Characteristics

All supplied units are delivered in manufacturer packaging with model traceability.

Selection Guidance – Choosing Correctly

Before procurement, validate the following:
Drive Compatibility
This ratchet accepts 3/8" drive insulated sockets only.
Using non-insulated sockets defeats insulation protection.
Access Clearance
At 200mm length, this model provides balanced reach and torque leverage.
For confined cabinets, verify clearance depth before ordering.
Torque Application Range
3/8" drive is suitable for:
M6–M12 fasteners (typical panel hardware range)
Terminal busbar connections
Cable gland locking nuts
For heavy structural bolts, 1/2" drive insulated systems are more appropriate.

Capacity & Real-World Application Logic

Practical Torque Application Scenario

Example:
An MCC panel maintenance operation requires tightening of M10 terminal bolts.
Recommended tightening torque: ~40–50 Nm (depending on spec)
3/8" drive ratchet provides adequate mechanical leverage
200mm length ensures torque without excessive force
Using a smaller 1/4" drive risks mechanical strain.
Using a 1/2" drive reduces control in confined spaces.
This model balances torque capacity and access precision for standard electrical infrastructure work.

Failure Conditions & Misuse Risks

When Insulation Can Be Compromised
Use with damaged insulation surface
Exposure to solvents degrading outer layer
Mechanical cuts or abrasion
Using non-insulated accessories
Improper Usage Risks
Applying torque beyond mechanical limits
Hammering or impact use
Exposure to open flame
Grinding or modification of tool body
Insulation integrity must be visually inspected before each use.

Material & Compatibility Table

Compatible Components

Working Material Context

Operational Handling & Installation Considerations

Inspect insulation before each use
Do not exceed mechanical torque design limits
Store away from heat sources
Avoid contact with cutting tools
Use only within rated voltage category
Do not use in explosive atmospheres unless separately certified
For EHS compliance, insulated tools should be logged under periodic inspection systems.

Commercial Clarity

Lead Time
Ready stock subject to batch availability
Bulk orders confirmed upon enquiry
Dispatch Capability
Pan-India dispatch
Courier and transport-supported delivery
Suitable for project and shutdown timelines
Minimum Order Quantity (MOQ)
No mandatory MOQ for standard supply
Bulk pricing available for project requirements
Customization
No modification permitted (VDE tools cannot be altered)
Compliance / Certification
Supplied as per manufacturer’s IEC 60900 compliance
Model traceable by part number
GST-compliant invoicing
Tender Compatibility
Can be supplied against BOQ referencing STMT77824-23B
Suitable for PSU and EPC procurement subject to approval norms

Procurement Process – How to Enquire?

To process efficiently, provide:
Required quantity
Delivery location
Project or shutdown timeline
Company name
GST number (if applicable)
Whether required for tender submission
RFQs are acknowledged with commercial quotation and stock confirmation.

Comparison Table – Decision Validation

Insulated vs Non-Insulated Ratchet

3/8" vs 1/4" Drive (Insulated)

Selection Checklist (Decision Validation)

Before confirming purchase, verify:

• Live electrical work involved
• 3/8" insulated sockets available
• Torque requirement within 3/8" range
• Compliance with IEC 60900 required
• Insulated tools mandated by EHS
• Genuine STANLEY model specified in BOQ

If all apply, this model is appropriate.

High-Intent FAQs

1. Is this ratchet individually tested for 1000V?
Yes. It is manufactured and tested in accordance with IEC 60900 standards for insulated hand tools.
2. Can I use standard sockets with this ratchet?
For live electrical work, only insulated sockets should be used. Using non-insulated accessories compromises safety.
3. Is this suitable for high-torque structural bolting?
No. This is designed for electrical maintenance applications within moderate torque ranges.
4. Can this be supplied for government tenders?
Yes, when the BOQ references the specific model number.
5. Is batch traceability available?
Yes, supply is model-traceable through manufacturer packaging and documentation.
6. What inspection is required before use?
Visual inspection of insulation for cracks, cuts, or abrasion is mandatory before each operation.
7. Is there warranty coverage?

Warranty is as per manufacturer policy and applicable commercial terms.
