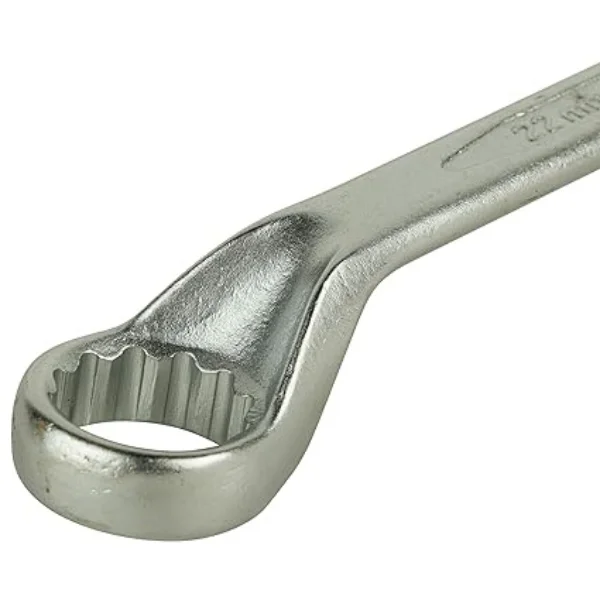

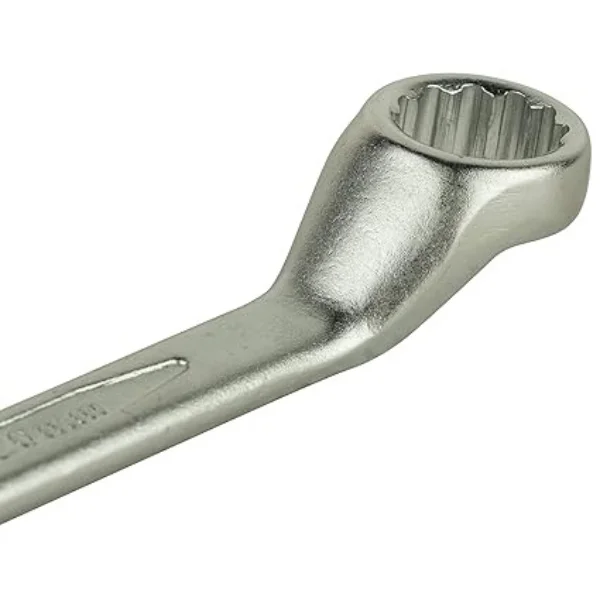

STANLEY 70-388E SHAL Offset Bi-Hex Ring CRV Spanner 20x22mm - Pan India Supply

STANLEY 70-388E Application Context & Use Cases

This model is typically specified in industrial tool lists for:

• Heavy equipment maintenance
• Automotive workshop service bays
• Fabrication and structural assembly
• EPC mechanical erection works
• Plant shutdown and preventive maintenance
• Railway and transport fleet servicing

Where Offset Ring Geometry Is Required
The SHAL offset profile is selected when:

• Nut/bolt head is recessed below surface plane
• Adjacent structure restricts flat spanner access
• Higher torque stability than open-end spanner is required
• Fastener rounding risk must be minimized

The 20x22mm combination is common in:

• Commercial vehicle chassis fasteners
• Industrial machinery frame bolts
• Structural steel joint assemblies
• Gearbox and axle housing connections

This is not a general-purpose domestic tool. It is typically procured for institutional and industrial use.



---

Selection Guidance – How to Choose Correctly

Before confirming procurement, verify:

1. Fastener head size is metric 20mm and/or 22mm.
2. Clearance limitation requires offset geometry.
3. Bi-hex profile is acceptable for torque requirement.
4. Fastener condition is not severely rounded.
5. Tool list mandates STANLEY brand specification.

When to Prefer Bi-Hex

• Faster engagement in tight rotational arc spaces.
• Frequent repositioning required.
• Maintenance environment with limited swing angle.

When Not to Prefer Bi-Hex

• Severely corroded fasteners.
• High-torque structural disassembly where 6-point ring may provide stronger grip.

Capacity / Practical Torque Consideration

Torque application depends on handle length and applied force.
Example Calculation (Illustrative):
If:

• Applied force = 300N
• Effective lever arm ≈ 0.25m

Estimated torque = Force × Lever Arm
= 300 × 0.25
= 75 Nm
This torque range is suitable for typical M12–M14 fasteners depending on grade and lubrication.
Always verify torque requirement against fastener grade and manufacturer torque chart before application.

Failure Conditions & Misuse Risks

Failure risk increases if:

• Used with extension pipes (“cheater bar”).
• Hammered under impact.
• Applied on rounded fastener heads.
• Used as a striking tool.
• Exposed to corrosive storage without maintenance.

Bi-hex rings distribute load across more contact points but are more sensitive to rounded edges compared to 6-point rings.
Improper use can result in:

• Ring distortion
• Chrome flaking
• Fastener rounding
• Operator hand injury due to slip

Who Should NOT Buy This

This model may not be suitable for:

• Domestic DIY usage
• Impact wrench application
• Heavy structural torque beyond manual specification
• Non-metric fasteners
• Applications requiring insulated tools

If torque requirement exceeds manual design capacity, consider impact-rated sockets instead.

Material & Compatibility Table

Operational Handling & Usage Considerations

• Ensure full ring engagement before applying torque.
• Maintain alignment with fastener axis.
• Avoid angular side loading.
• Store in dry environment to protect plating.
• Clean debris from ring teeth before engagement.
• Do not apply hammer impact.

Offset design improves access but must be seated fully to prevent slippage.

Commercial Clarity

Lead Time

• Ready stock: Immediate dispatch (subject to stock confirmation)
• Non-stock / bulk volume: 3–7 working days (subject to availability)

Dispatch Capability

• Pan India shipping through verified logistics partners
• Institutional freight coordination available

Minimum Order Quantity (MOQ)

• No MOQ for standard procurement
• Bulk pricing applicable for higher quantities

Customization

• No customization on branded SKU
• Tool kits and bulk packaging options possible

Compliance & Certification

• GST-compliant invoicing
• Genuine branded product supply
• Supplied in original manufacturer packaging
• Suitable for institutional and tender submission (where brand is specified)

Tender Compatibility
This model is compatible with tenders specifying:

• STANLEY brand
• 20x22mm offset ring spanner
• CRV material
• Bi-hex ring profile

Procurement Process – How to Enquire

To receive an accurate quotation, provide:

• Company Name
• GST Number
• Required Quantity
• Delivery Location (City/State)
• Required Delivery Timeline
• Tender Reference (if applicable)

Quotation includes:

• Unit rate
• Applicable GST
• Freight terms
• Dispatch timeline

Bulk and institutional enquiries are prioritized.

Comparison Table – Common Alternatives

Selection depends on torque demand and access constraints.

Selection Checklist

Before confirming order, verify:

• Fastener size confirmed 20mm / 22mm
• Metric specification required
• Offset clearance required
• Bi-hex profile acceptable
• Manual torque application only
• Institutional GST billing required
• Brand specification STANLEY confirmed
• Delivery timeline aligned with requirement

High-Intent FAQs

1. Is STANLEY 70-388E genuine branded supply?

Yes. Supplied in original branded packaging with GST-compliant invoice.

2. Is this suitable for impact application?

No. It is designed for manual torque application only.

3. Can it be used for automotive chassis bolts?

Yes, where bolt head size matches 20mm or 22mm and torque is within manual range.

4. Is bulk pricing available?

Yes. Pricing is quantity-dependent. Provide required quantity for accurate quote.

5. Is it suitable for tender submission?

Yes, where STANLEY brand is specified and equivalent is not permitted.

6. What is the difference between Bi-Hex and 6-point?

Bi-Hex allows faster engagement at tighter indexing angles but provides slightly lower contact strength than 6-point under extreme torque.

7. Is Pan India dispatch available?

Yes. Dispatch is arranged across India through structured logistics support.
