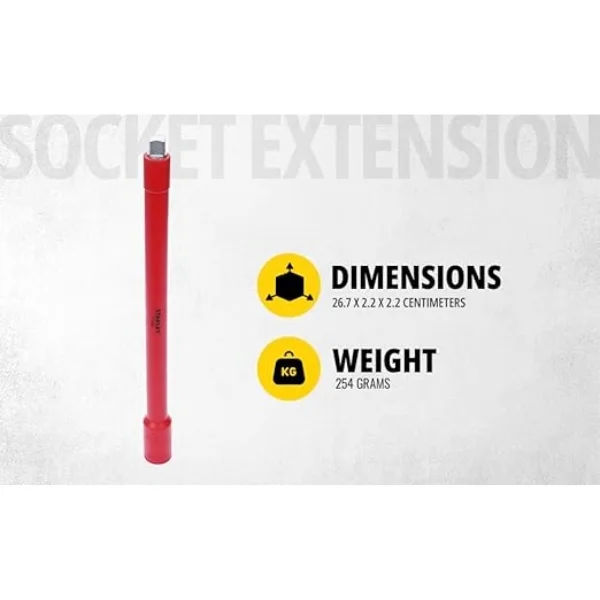

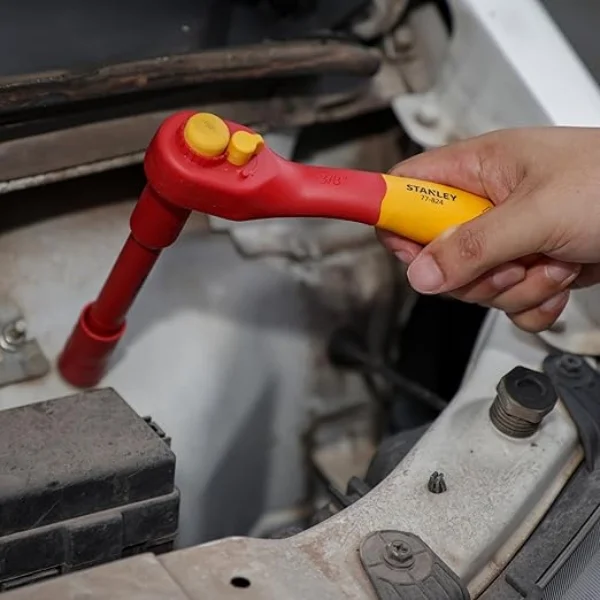

STANLEY STMT77826-23B 3/8" VDE Insulated Extension Bar 250mm - 1000V

It is used to extend insulated socket access inside electrical panels, switchgear assemblies, and industrial control systems where operator safety and compliance with VDE standards are mandatory.

STANLEY STMT77826-23B Application & Use

This extension bar is deployed in controlled electrical environments where standard chrome extensions are non-compliant.
Typical Industrial Applications
Low-voltage electrical panel maintenance
MCC and PCC board servicing
Switchgear assembly tightening
Substation auxiliary systems
Industrial machine control cabinets
Power distribution maintenance contracts
Why Extension Length Matters
A 250mm insulated extension is typically selected when:
Fasteners are recessed behind barriers
Clearance between live busbars is limited
Direct ratchet access is obstructed
Insulated torque transmission is required beyond panel depth
In live-maintenance environments, insulation continuity from handle to socket interface is critical. This product maintains that protection envelope.

Insulation Construction

The tool features:
Hardened chrome vanadium steel core
Fully encapsulated VDE-rated insulation
Dual-colour safety insulation (inner contrast layer for wear detection)
If the outer layer is damaged and inner colour becomes visible, the tool must be withdrawn from service.

Selection Guidance

Choosing the correct insulated extension depends on four technical factors:
1. Drive Compatibility
Confirm that the ratchet and insulated sockets are 3/8" drive. Mixing drive systems compromises torque transfer.
2. Required Reach
Measure panel depth. A 250mm extension is typically used when:
Fasteners are positioned 180–230mm from entry point
Direct ratchet swing is restricted
3. Voltage Environment
This tool is rated for 1000V AC. Verify that the application environment does not exceed this limit.
4. Compliance Requirement
For audited environments (industrial plants, EPC, utilities), VDE certification is mandatory. Non-certified insulated tools do not qualify.

Capacity / Practical Use Logic

An extension bar does not increase torque capacity. It transfers torque from the ratchet to the socket.
Practical Example
If a 3/8" insulated ratchet is rated for a maximum safe torque of 80 Nm:
The extension must not be subjected to torque beyond the ratchet’s limit.
The insulation does not enhance mechanical strength.
Excess torque application can result in:
Core twisting
Insulation cracking
Loss of compliance
Always align torque tool capacity with fastener specification.

Failure Conditions & Misuse Risks

This product should be removed from service if:
Insulation shows cuts, abrasions, or exposed inner layer
Tool has been dropped from height onto hard surface
Exposure to extreme heat has deformed insulation
Used on non-compatible impact tools
Critical Misuse
Do not use with impact wrenches
Do not grind or modify insulation
Do not use beyond rated voltage
Compromised insulation eliminates VDE protection.

Material & Compatibility Table

Operational Handling & Installation Considerations

Inspect insulation before each use
Store separately from sharp-edged tools
Avoid chemical exposure
Clean with dry cloth only
Do not immerse in solvents
Maintain separation between insulated and non-insulated tool inventory to prevent accidental misuse.

Commercial Clarity

Lead Time
Stock-dependent. Standard dispatch within 24–72 hours for available inventory.
Dispatch Capability
Pan-India dispatch through industrial logistics networks.
MOQ
No strict MOQ. Bulk procurement supported.
Customization
No modification permitted on insulated tools due to certification constraints.
Compliance / Certification
Supplied product conforms to VDE certification requirements under manufacturer specification.
Tender Compatibility
Suitable for inclusion in industrial and EPC tenders requiring VDE-certified insulated tools. Supporting documentation can be provided upon request.

Procurement Process

To process an enquiry efficiently, provide:
Required quantity
Delivery location (city & state)
Application type (maintenance / project / resale)
Required delivery timeline
GST details
Process Flow:
RFQ Submission
Stock Confirmation
Commercial Offer
Order Confirmation
Dispatch & Tracking

Comparison Table – Common Alternatives

Selection Checklist

Before finalizing procurement, confirm:

• 3/8" drive compatibility
• Required extension length is 250mm
• Application voltage ≤ 1000V
• Insulated socket system in use
• Compliance documentation required
• No impact tool usage

If all conditions are satisfied, this model is suitable.

FAQs

1. Is this extension bar genuinely VDE certified?
Yes. The model STMT77826-23B is manufactured and rated in accordance with VDE insulated tool standards for live working up to 1000V AC.
2. Can it be used with impact tools?
No. It is designed for manual torque tools only.
3. Does insulation wear over time?
Yes. Regular inspection is required. If inner insulation layer is exposed, replace immediately.
4. Is it suitable for torque wrench applications?
Yes, provided the torque wrench is compatible 3/8" drive and within safe torque limits.
5. Is bulk industrial supply available?
Yes. Bulk dispatch can be arranged depending on stock availability.
6. Can documentation be provided for audit purposes?
Yes. Compliance references and commercial documentation can be shared during procurement.
7. Is it compatible with non-insulated sockets?
Not recommended for live environments. Insulation continuity must be maintained.
