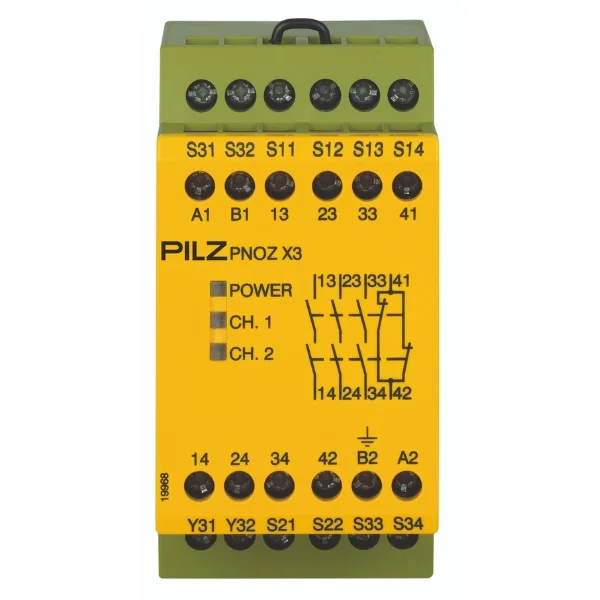

Pilz PNOZ X3 Safety Relay 230V AC / 24V DC 3NO 1NC (774318) Supplier

As a supplier and distributor with pan-India reach, Indus Megamart supports procurement teams with reliable sourcing, availability, and dispatch coordination for safety-critical components.

What is Pilz PNOZ X3 Safety Relay 230V AC / 24V DC 3NO 1NC (774318)

Pilz PNOZ X3 Safety Relay 230V AC / 24V DC 3NO 1NC (774318) is an electromechanical safety relay designed to monitor emergency stop circuits and safety interlocks. It provides controlled switching outputs to safely stop machinery when faults or unsafe conditions are detected in industrial automation systems.

This relay belongs to the established PNOZ X series, commonly deployed in conventional safety architectures. It operates with either 230V AC or 24V DC supply configurations, offering flexibility in integration with existing control panels.

The 3NO (normally open) and 1NC (normally closed) contact arrangement allows it to control multiple outputs, such as motor contactors or safety PLC inputs. It is typically used in applications where redundancy and reliable disconnection are required rather than programmable safety logic.

Unlike modular safety controllers, this relay is preferred in fixed-function safety circuits where simplicity, deterministic behavior, and ease of troubleshooting are priorities.

Applications of Pilz PNOZ X3 Safety Relay 230V AC / 24V DC 3NO 1NC (774318)

• Emergency stop circuits in standalone machines
Used in equipment like hydraulic presses or cutting machines where immediate power isolation is required.
• Safety gate monitoring in packaging lines
Ensures machinery halts when access doors or guards are opened during operation.
• Conveyor belt safety systems
Prevents unsafe restart during maintenance or fault conditions in material handling systems.
• Woodworking and metalworking machinery
Supports safety circuits in equipment with rotating tools or moving parts.
• Process plant control panels
Integrated into control panels where fail-safe shutdown is required during abnormal process conditions.
• Assembly line safety interlocks
Maintains safety compliance in semi-automated assembly operations.
Each application benefits from the relay’s deterministic switching behavior and ease of integration into hardwired safety circuits.

Industries Using Pilz PNOZ X3 Safety Relay 230V AC / 24V DC 3NO 1NC (774318)

This relay is commonly specified across industries where machinery safety compliance is essential:
• Industrial machinery manufacturing
• Food and beverage processing lines
• Automotive component assembly units
• Warehousing and logistics automation
• Printing and packaging facilities
• Textile processing plants
In contrast to programmable safety systems, these industries often rely on relays like PNOZ X3 for localized safety loops where complexity is minimal but reliability is critical.

Operational Considerations

When integrating the Pilz PNOZ X3 Safety Relay, attention should be given to:
• Control panel voltage availability (AC vs DC supply)
• Compatibility with existing contactors and feedback loops
• Wiring logic for reset and monitoring circuits
• Environmental conditions such as temperature and vibration
• Required safety category or performance level (based on system design)
In many installations, this relay operates alongside safety contactors and emergency stop push buttons, forming a closed-loop safety system.
For deeper system-level planning, buyers often refer to internal engineering standards or external safety design guides.

Customization Options

Since Indus Megamart operates as a supplier and distributor, product-level customization is not offered.
However, configuration flexibility exists in:
• Wiring architecture (manual vs auto reset)
• Integration with different safety devices
• Panel-level arrangement with other safety components
Selection of the right variant depends on system design rather than physical product modification.

Product Supply & Distribution Capability

Indus Megamart supports industrial buyers through structured sourcing and distribution of safety relays and automation components.
Capabilities include:
• Reliable sourcing of Pilz safety relays
• Batch supply for OEMs and EPC contractors
• Support for repeat procurement cycles
• Coordination for urgent requirements
As a distributor, the focus remains on availability, authenticity, and timely dispatch rather than manufacturing.

Supply Across India

With a pan-India supply network, Indus Megamart serves procurement teams across:
• NCR region including Ghaziabad
• Maharashtra and Gujarat industrial belts
• Southern manufacturing hubs like Tamil Nadu and Karnataka
• Eastern regions including West Bengal and Odisha
Logistics coordination ensures timely delivery aligned with project schedules and shutdown windows.

How to Choose the Right Pilz PNOZ X3 Safety Relay

Selecting the correct safety relay involves evaluating system-specific factors:
• Input voltage compatibility (230V AC vs 24V DC)
• Number of required safety outputs
• Type of safety device (E-stop, guard switch, light curtain)
• Reset logic requirements
• Integration with existing safety architecture
• Compliance requirements of the machine
For broader comparison with other relays such as PNOZ S-series, buyers often review differences in response time, modularity, and application scope.

Comparison Table

Below is a general comparison to help procurement teams evaluate positioning within the Pilz relay range:

This comparison helps identify whether a conventional relay like X3 is suitable or if a more modular system is required.

Typical Use Case Scenarios

• Retrofit of older machinery
Replacing outdated relays in legacy machines without redesigning the entire control system.
• Small OEM machine panels
Used where cost-effective, non-programmable safety solutions are sufficient.
• Independent safety zones
Applied in sections of larger plants where localized safety control is needed.
• Maintenance shutdown circuits
Ensures safe isolation during service operations.

Procurement Process

To procure the Pilz PNOZ X3 Safety Relay 230V AC / 24V DC 3NO 1NC (774318):

1. Share application or part requirement
2. Confirm availability and quantity
3. Receive commercial quotation
4. Dispatch coordination and delivery

For enquiries, refer to the official contact page:
https://www.indusmegamart.com/contact-us
Buyers can also learn more about the company’s supply capabilities on the About page:
https://www.indusmegamart.com/about-us

Common Buyer Concerns Before Ordering

• Compatibility with existing control panels
• Availability of genuine product supply
• Lead time for bulk requirements
• Wiring and integration complexity
• After-sales support for replacement cycles
These concerns are typically addressed during pre-procurement discussions with the supplier.

FAQs

What is the primary use of Pilz PNOZ X3 safety relay?
It is mainly used to monitor emergency stop circuits and safety interlocks. The relay ensures that machinery shuts down safely when a fault or unsafe condition is detected, making it suitable for fixed safety applications.
Can the Pilz PNOZ X3 operate on both AC and DC supply?
Yes, this model supports both 230V AC and 24V DC supply inputs. This flexibility allows integration into different control panel configurations without requiring additional power conversion components.
How is PNOZ X3 different from PNOZ S series relays?
PNOZ X3 is a conventional relay designed for fixed-function safety circuits, while PNOZ S series offers more compact and flexible configurations. The choice depends on panel space, application complexity, and integration requirements.
Is the relay suitable for safety PLC systems?
It can be used alongside safety PLC systems but is typically deployed in standalone safety loops. It acts as a hardwired safety component rather than a programmable safety controller.
What maintenance is required for safety relays like PNOZ X3?
Maintenance involves periodic inspection of wiring, contact wear, and functional testing. Since it is an electromechanical device, lifecycle monitoring is important in high-cycle applications.
Can this relay be used in harsh industrial environments?
It can operate in standard industrial environments when installed in proper enclosures. Factors such as temperature, dust, and vibration should be considered during panel design.
Does Indus Megamart provide technical selection support?
Yes, Indus Megamart assists buyers with product identification, availability checks, and general application alignment to ensure the correct relay is sourced.

Request a Quote for Pilz PNOZ X3 Safety Relay 230V AC / 24V DC 3NO 1NC (774318)

For pricing, availability, or technical discussion, reach out to Indus Megamart, a trusted supplier and distributor of industrial automation components across India.
Visit: https://www.indusmegamart.com/contact-us
