Pilz 777314 PNOZ X3.10P Safety Relay 24VAC/DC Supplier

With a large product catalog and pan-India supply capability, Indus Megamart ensures timely availability for both maintenance and project-based requirements.

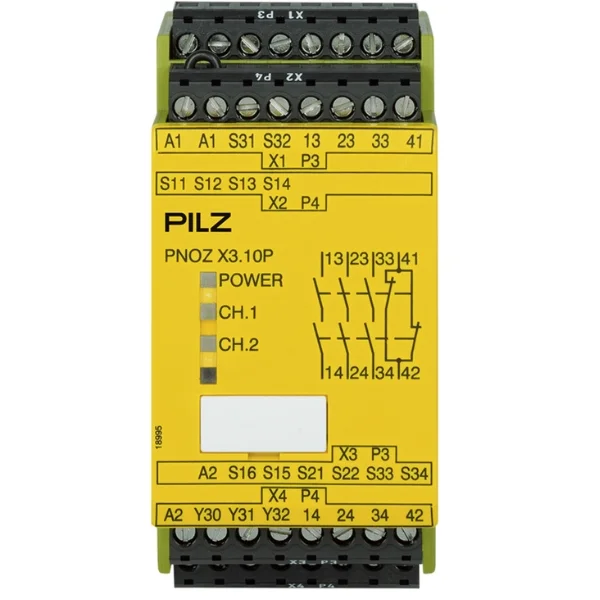

What is Pilz 777314 PNOZ X3.10P Safety Relay 24VAC/DC

Pilz 777314 PNOZ X3.10P Safety Relay 24VAC/DC is a safety control device used to monitor emergency stop circuits, safety gates, and protective equipment. It ensures that machinery operates only under safe conditions by interrupting control circuits when faults or unsafe states are detected.

This relay belongs to the PNOZ X series, typically used in conventional safety architectures where hardwired safety logic is required. It monitors input signals from safety devices such as emergency stop buttons or interlock switches and controls output contacts accordingly.

The relay operates by evaluating input conditions continuously. If a fault, inconsistency, or unsafe signal is detected, it transitions outputs into a safe state, typically cutting off power to hazardous machinery.

In practical deployment, this model is often selected where:

• Safety circuits need reliable redundancy
• Simple safety logic is preferred over programmable systems
• Retrofit or replacement of legacy safety relays is required

Applications of Pilz 777314 PNOZ X3.10P Safety Relay 24VAC/DC

• Emergency Stop Circuits in Assembly Lines
Used to immediately shut down conveyor-driven or robotic systems when emergency stop buttons are activated.
• Safety Gate Monitoring in Packaging Systems
Ensures machines stop when operator access doors are opened, preventing accidental exposure to moving parts.
• Press Machine Protection
Monitors safety inputs in mechanical or hydraulic presses where operator safety depends on reliable shutdown.
• Material Handling Systems
Installed in automated warehouses and lifting systems to ensure safe interruption during abnormal conditions.
• Textile Machinery Safety Circuits
Supports safe operation of high-speed looms and spinning equipment where operator proximity is frequent.
• Food Processing Equipment Isolation
Ensures machines stop safely during cleaning or maintenance access.
• Standalone Safety Control Panels
Used in decentralized safety panels where programmable controllers are not required.

Industries Using Pilz 777314 PNOZ X3.10P Safety Relay 24VAC/DC

This relay is deployed across industries where safety compliance and operational reliability are essential:

• Automotive component manufacturing
• FMCG and packaging plants
• Warehousing and logistics automation
• Textile and spinning mills
• Food and beverage processing units
• Machinery OEM panels
• Pharmaceutical equipment systems

Different industries adopt this relay based on their safety circuit complexity and need for dependable switching.

Operational Considerations

When integrating the Pilz 777314 PNOZ X3.10P Safety Relay 24VAC/DC, consider the following:

• Input Device Compatibility
  Ensure compatibility with emergency stop switches, light curtains, or safety interlocks.
• Control Panel Integration
  Suitable for DIN rail mounting in standard industrial control panels.
• Environmental Conditions
  Should be installed in controlled environments, protected from excessive dust, vibration, and moisture.
• Circuit Design Logic
  Proper wiring and redundancy planning are essential for achieving intended safety levels.
• Maintenance Accessibility
  Positioning within panels should allow easy inspection and replacement.

Customization Options

As a supplier and distributor, Indus Megamart does not modify the product but supports selection flexibility through:

• Alternate compatible models within the PNOZ X series
• Guidance on selecting relays based on application logic
• Assistance in identifying replacement equivalents
• Integration advice with existing safety systems

Product Supply & Distribution Capability

Indus Megamart supplies the Pilz 777314 PNOZ X3.10P Safety Relay 24VAC/DC through a structured sourcing and distribution network.

• Sourcing from authorized and reliable channels
• Stock support for recurring industrial requirements
• Batch supply for project procurement
• Coordination with plant maintenance schedules

Their experience in handling a large industrial catalog enables efficient procurement handling.

Supply Across India

Indus Megamart supports pan-India supply with logistics coverage across:

• Industrial clusters
• Manufacturing hubs
• EPC project sites
• Maintenance depots

Dispatch planning is aligned with urgency levels, ensuring minimal downtime impact for operational facilities.

Export Capability

For international buyers and project contractors, Indus Megamart can support export-oriented supply based on:

• Order volume
• Destination requirements
• Documentation and logistics coordination

Export timelines and documentation are handled case-by-case.

How to Choose the Right Pilz 777314 PNOZ X3.10P Safety Relay 24VAC/DC

When evaluating this relay, consider:

• Type of safety circuit (E-stop, gate monitoring, dual-channel)
• Required number of output contacts
• Voltage compatibility with existing systems
• Reset logic requirements
• Integration with existing safety architecture
• Panel space and mounting constraints

For deeper selection understanding, refer to internal guides such as:

• Safety relay selection principles
• Safety circuit design practices

 Comparison Table
When comparing safety relays, buyers often evaluate compatibility, logic complexity, and expansion capability.

Typical Use Case Scenarios

• Retrofit in Existing Machinery
Replacing older relays without redesigning the entire safety system.
• Standalone Safety Panels
Used where PLC-based safety systems are not required.
• OEM Machine Builds
Integrated into control panels for new machines.
• Distributed Safety Nodes
Used in decentralized safety zones within large plants.

Procurement Process

To procure the Pilz 777314 PNOZ X3.10P Safety Relay 24VAC/DC:

1. Identify application requirement
2. Share technical details with supplier
3. Confirm compatibility and availability
4. Request quotation
5. Finalize delivery timeline

You can initiate enquiries via the official contact page:
https://www.indusmegamart.com/contact-us
To understand company background and capabilities, refer to:
https://www.indusmegamart.com/about-us

Common Buyer Concerns Before Ordering

• Compatibility with existing safety systems
• Lead time and availability
• Authenticity of supplied product
• Replacement support for legacy systems
• Technical clarification before installation
• After-sales coordination for urgent needs

Indus Megamart addresses these through structured procurement support.

FAQ Section

What does the Pilz 777314 PNOZ X3.10P Safety Relay do?
It monitors safety inputs such as emergency stop buttons and safety gates. When unsafe conditions are detected, it interrupts the control circuit, ensuring machinery stops safely and prevents operator exposure to hazards.

Is Pilz 777314 PNOZ X3.10P suitable for retrofit projects?
Yes, it is commonly used in retrofit applications where older safety relays need replacement without redesigning the entire control system. Compatibility should be verified before installation.

What type of systems use this safety relay?
It is used in conventional hardwired safety systems, especially where programmable safety controllers are not required. Typical systems include machine tools, conveyors, and packaging lines.
Can this relay be used with safety PLCs?
It is generally used in standalone safety circuits. However, it can complement safety PLC systems in hybrid setups depending on system architecture.
What should be checked before selecting this relay?
Check voltage compatibility, input device type, output contact requirements, reset configuration, and overall safety circuit design to ensure proper integration.
Does Indus Megamart provide technical support?
Indus Megamart supports product selection, sourcing, and procurement coordination. Technical application discussions can be facilitated based on project requirements.
Is this relay suitable for high-speed automation lines?
Yes, it is often used in automation lines where quick and reliable safety shutdown is required, provided it matches system design requirements.
How is this relay installed?
It is typically DIN rail mounted inside control panels and wired into safety circuits according to system design and safety standards.
