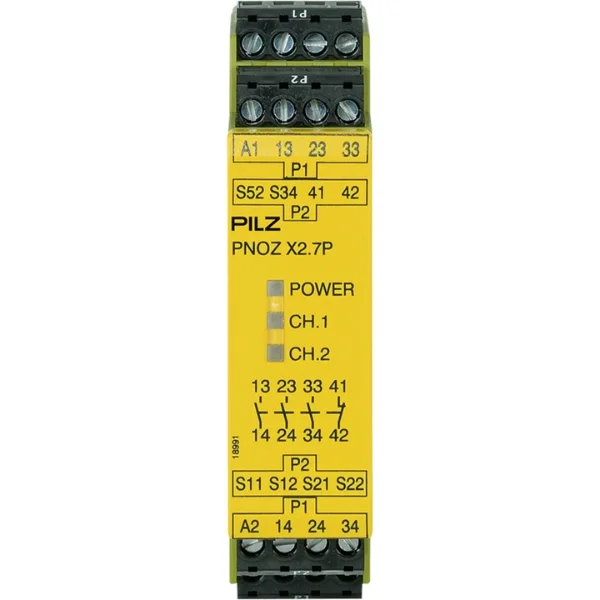

What is Pilz 777306 PNOZ X2.7P Safety Relay 24–240VAC/DC 3NO 1NC

Pilz 777306 PNOZ X2.7P Safety Relay 24–240VAC/DC 3NO 1NC is an industrial safety relay designed to monitor safety circuits such as emergency stops and guard switches. It processes input signals and ensures safe switching of output contacts to stop machinery when unsafe conditions are detected.

The Pilz 777306 PNOZ X2.7P Safety Relay belongs to the PNOZ X series, widely used in conventional relay-based safety systems. It operates across a wide voltage range (AC/DC), making it adaptable for varied control panels.

This relay is typically integrated into safety loops involving:

• Emergency stop push buttons
• Safety gate switches
• Light curtains or protective barriers

Its output configuration (3NO + 1NC) allows it to interface with machine control circuits, enabling safe shutdown or interruption when a fault or unsafe condition occurs. It is commonly selected where programmable safety controllers are not required, and a fixed-function safety solution is sufficient.

Applications of Pilz 777306 PNOZ X2.7P Safety Relay

• Packaging machinery safety circuits
  Used to monitor emergency stops on high-speed packaging lines where immediate machine halt is critical.
• Material handling conveyors
  Ensures safe shutdown of conveyor sections when access gates are opened or safety switches are triggered.
• Metal fabrication equipment
  Applied in press machines or cutting systems to prevent unintended operation during maintenance or operator access.
• Textile processing lines
  Supports safety interlocking in continuous production lines where operator proximity is frequent.
• Automated assembly stations
  Used in workstation-level safety where localized emergency stop circuits are required.
• Food processing machinery
  Ensures compliance with safety requirements in hygienic environments where operator intervention is common.

Industries Using Pilz 777306 PNOZ X2.7P Safety Relay

The Pilz 777306 PNOZ X2.7P Safety Relay is used across industries where machine-level safety is mandatory but system complexity remains moderate.
Typical industries include:

• Industrial automation and OEM panel building
• Automotive component manufacturing
• FMCG production plants
• Logistics and warehousing automation
• Process industries with semi-automated machinery

Unlike programmable safety systems, this relay is often preferred in applications where fixed safety logic is sufficient and easier to validate.

Operational Considerations

When integrating the Pilz 777306 PNOZ X2.7P Safety Relay, several operational aspects must be evaluated:

• Control panel voltage compatibility
  Ensure alignment with available control voltage (AC or DC).
• Safety circuit design
  The relay should be wired according to required safety categories and risk assessments.
• Environmental conditions
  Suitable for standard industrial panels; excessive vibration or moisture may require enclosure considerations.
• Interfacing with PLC systems
  Typically used alongside standard PLCs, not as a replacement for safety PLCs.
• Response requirements
  Appropriate for applications requiring reliable but non-programmable safety logic.

Customization Options

As a standard industrial safety relay, the Pilz 777306 PNOZ X2.7P does not offer internal customization. However, system-level configuration flexibility exists through:

• Wiring logic design
• External contact expansion modules
• Integration with auxiliary relays
• Panel-level layout adjustments

Indus Megamart supports selection guidance based on application requirements but does not modify the product itself.

Product Supply & Distribution Capability

Indus Megamart operates as a supplier and distributor of Pilz safety relays, including the Pilz 777306 PNOZ X2.7P Safety Relay.
Key supply capabilities include:

• Sourcing from authorized and verified channels
• Bulk and project-based supply support
• Coordination for urgent industrial requirements
• Support for repeat procurement cycles

The focus remains on reliable availability rather than manufacturing.

Supply Across India

Indus Megamart supplies the Pilz 777306 PNOZ X2.7P Safety Relay across India.

• Dispatch from operational base with logistics coordination
• Supply coverage for metro cities and industrial clusters
• Support for OEMs, contractors, and plant maintenance teams
• Handling of both single-unit and bulk requirements

Delivery timelines depend on stock availability and project urgency.

Export Capability

For international requirements, Indus Megamart can support export-oriented supply on request.

• Documentation support for international shipments
• Coordination with logistics partners
• Suitable for project exports or OEM supply chains

Export feasibility depends on order volume and destination compliance requirements.

How to Choose the Right Pilz 777306 PNOZ X2.7P Safety Relay

When evaluating this relay, procurement teams should consider:

• Required number of safety outputs (3NO + 1NC suitability)
• Control voltage compatibility across panels
• Type of safety devices connected (E-stop, gate switch, etc.)
• Need for fixed vs programmable safety logic
• Panel space and mounting constraints
• Integration with existing safety architecture

For deeper evaluation, refer to broader guides on safety relay selection and system design.

Comparison Table

For buyers comparing similar safety relays, the key differences usually lie in configuration and application suitability.

Selection depends more on system design compatibility than specification differences alone.

Typical Use Case Scenarios

• Standalone machine safety retrofit
  Older machinery upgraded with modern safety relays without redesigning the entire control system.
• OEM control panel integration
  Used in machine panels where standardized safety logic is deployed across multiple units.
• Conveyor zone isolation
  Allows selective shutdown of sections without affecting entire production lines.
• Access-controlled equipment
  Integrated with guard switches to prevent machine operation during operator access.

Procurement Process

To procure the Pilz 777306 PNOZ X2.7P Safety Relay:

1. Share application details and required quantity
2. Confirm compatibility with existing systems
3. Request quotation and delivery timeline
4. Finalize order and dispatch coordination

For enquiries, visit:
https://www.indusmegamart.com/contact-us
You can also learn more about the company’s supply approach here:
https://www.indusmegamart.com/about-us

Common Buyer Concerns Before Ordering

• Whether the relay matches existing panel voltage
• Compatibility with existing safety wiring
• Availability for urgent breakdown replacement
• Differences between PNOZ X and PNOZ Sigma series
• Long-term availability for repeat orders

Addressing these early helps avoid delays during installation or commissioning.

FAQs

What is the primary function of Pilz 777306 PNOZ X2.7P Safety Relay?
It monitors safety input devices such as emergency stops and safety switches. When a fault or unsafe condition is detected, it interrupts the control circuit, ensuring the connected machine stops safely. It is commonly used in fixed-function safety circuits.

Can the Pilz 777306 PNOZ X2.7P Safety Relay be used with both AC and DC supply?
Yes, it is designed to operate across a wide voltage range (24–240 VAC/DC). This flexibility makes it suitable for different panel configurations without requiring separate relay variants for each voltage type.
Is this relay suitable for safety PLC replacement?
No, it is not a replacement for safety PLCs. It is used in applications where fixed safety logic is sufficient. For complex or programmable safety requirements, a safety controller would be more appropriate.
How is this relay typically installed?
It is mounted on a DIN rail inside a control panel. Wiring is done according to safety circuit requirements, including input devices and output connections to machine control systems.
What industries commonly use this relay?
It is widely used in manufacturing, packaging, material handling, and automation systems where machine-level safety circuits are required without complex programming.
What should be checked before purchasing?
Buyers should verify voltage compatibility, output contact requirements, application type, and integration with existing systems. Consulting with a supplier helps ensure correct selection.
Does Indus Megamart provide technical support?
Indus Megamart supports product selection and procurement coordination. For detailed system design or engineering validation, buyers typically consult system integrators or safety engineers.
