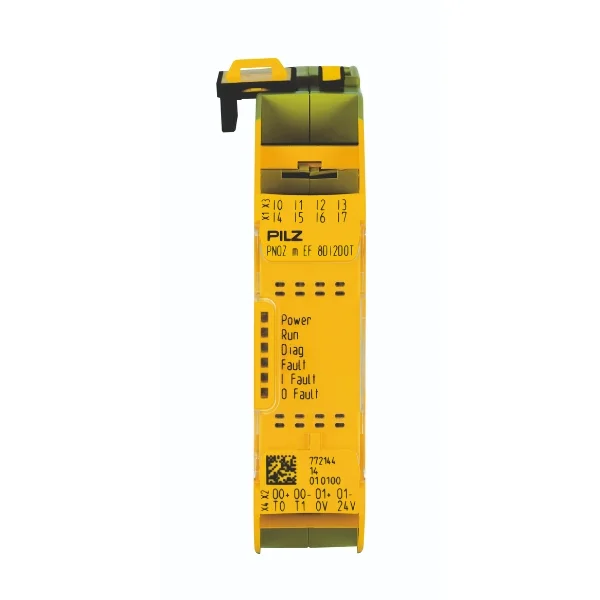

Pilz PNOZ m EF 8DI2DOT I/O Module - 772144 Supplier

As a supplier and distributor, Indus Megamart focuses on availability, sourcing reliability, and procurement support for projects requiring safety controller expansion modules. The module is typically deployed where additional safe input and output channels are required within a scalable safety architecture.

What is Pilz PNOZ m EF 8DI2DOT I/O Module – 772144

Pilz PNOZ m EF 8DI2DOT I/O Module – 772144 is a modular expansion unit designed for use with configurable safety controllers, providing additional digital input and safe output channels. It enables system designers to extend safety logic capability in machinery and automation systems without redesigning the base controller.

In modular safety systems, base controllers often have limited I/O capacity. As machine complexity increases, additional sensing points and output control elements become necessary.

The Pilz PNOZ m EF 8DI2DOT I/O Module – 772144 addresses this by extending the system with multiple digital inputs and safe transistor outputs. These channels are typically used to interface with field devices such as safety switches, sensors, and actuators.

Unlike standalone safety relays, this module operates as part of a configurable safety controller platform. It allows centralized logic processing while distributing I/O across machine sections. This approach improves wiring efficiency and simplifies system expansion without significant redesign.

Applications of Pilz PNOZ m EF 8DI2DOT I/O Module – 772144

• Multi-zone machine safety monitoring
In large automated systems, multiple safety zones must be monitored independently. This module enables additional input channels for zone-based interlocks and emergency stop circuits.
• Conveyor line segmentation
In material handling systems, segmented conveyors require localized safety inputs and outputs. The module allows integration of sensors and safe outputs at distributed points.
• Robotic cell interface expansion
Robotic cells often require additional safety inputs for light curtains, gate switches, and enabling devices. The module expands connectivity without altering the base safety controller.
• Packaging line synchronization
High-speed packaging systems involve multiple interlocked safety points. Additional I/O ensures coordinated shutdown across filling, sealing, and labeling stations.
• Machine retrofits and upgrades
When upgrading older machinery to meet updated safety requirements, additional I/O capacity is required. This module allows expansion without replacing the entire control system.
• Automated storage systems (AS/RS)
Warehouse automation systems require multiple safety feedback loops across aisles and lifts. The module supports scalable integration of these safety signals.
For deeper system design considerations, refer to internal resources such as the Safety Controller Applications Guide available within the product knowledge section.

Industries Using Pilz PNOZ m EF 8DI2DOT I/O Module – 772144

The Pilz PNOZ m EF 8DI2DOT I/O Module – 772144 is used in industries where scalable safety control architectures are essential:
• Automotive manufacturing and assembly lines
• Food and beverage processing plants
• Pharmaceutical production facilities
• Logistics and warehouse automation
• Heavy engineering and machine building
• Packaging and printing industries
These sectors often operate complex machinery where safety systems must evolve alongside production changes. Modular expansion allows flexibility without full system replacement.

Operational Considerations

When integrating the Pilz PNOZ m EF 8DI2DOT I/O Module – 772144, several practical aspects must be reviewed:
• System architecture compatibility
Ensure the module aligns with the selected safety controller platform and firmware configuration.
• Signal integrity and wiring layout
Distributed I/O modules require careful cable routing to maintain signal reliability, especially in electrically noisy environments.
• Load characteristics of outputs
Safe outputs must be matched with the load type (relay coils, contactors, or interface modules).
• Environmental conditions
Industrial environments with vibration, temperature variation, or dust may require appropriate enclosure protection.
• Redundancy and safety category requirements
The module should be configured within the safety architecture to meet the required performance level (PL) or SIL target.

Customization Options

The Pilz PNOZ m EF 8DI2DOT I/O Module – 772144 itself is a standardized product and is not customized at the component level.
However, system-level configuration is flexible:
• Input mapping can be adjusted based on machine requirements
• Output logic can be defined through safety software
• Modules can be combined with other expansion units for tailored configurations
Indus Megamart supports procurement teams in selecting compatible modules for specific system layouts.

Product Supply & Distribution Capability

Indus Megamart operates as a supplier and distributor of industrial automation components, including the Pilz PNOZ m EF 8DI2DOT I/O Module – 772144.
The focus is on:
• Sourcing genuine products through established channels
• Supporting project-based procurement requirements
• Managing supply continuity for maintenance and expansion needs
Buyers can review company credentials and sourcing approach via the About page:
https://www.indusmegamart.com/about-us

Supply Across India

Indus Megamart supplies the Pilz PNOZ m EF 8DI2DOT I/O Module – 772144 across major industrial regions in India.
Typical supply flow includes:
• Dispatch from stocked or sourced inventory
• Coordination with logistics partners for industrial delivery
• Support for urgent replacement requirements in operational plants
This nationwide availability is particularly relevant for maintenance teams requiring quick turnaround for safety system components.

Export Capability

In addition to domestic supply, Indus Megamart supports export enquiries for the Pilz PNOZ m EF 8DI2DOT I/O Module – 772144.
Export support includes:
• Coordination of documentation for international shipments
• Packaging suitable for transit
• Alignment with buyer-specified logistics partners
Export timelines typically depend on sourcing and destination requirements.

How to Choose the Right Pilz PNOZ m EF 8DI2DOT I/O Module – 772144

Procurement and engineering teams should evaluate the following:
• Required number of input and output channels
• Compatibility with existing PNOZmulti controller
• Type of field devices (sensors, switches, actuators)
• Output load requirements
• Expansion capacity for future system scaling
• Integration with existing safety architecture
For detailed selection logic, refer to the Safety Controller Selection Guide within the product knowledge section.

Comparison Table

When evaluating safety I/O expansion modules, buyers often compare channel capacity and integration flexibility.

The Pilz PNOZ m EF 8DI2DOT I/O Module – 772144 is typically selected where modular scalability is required rather than fixed relay-based safety logic.

Typical Use Case Scenarios

• Automotive body shop expansion
Additional safety inputs are required when new robotic welding cells are added.
• Food processing line upgrade
Existing safety system is extended to include new packaging stations.
• Warehouse automation retrofit
New safety sensors are integrated into an AS/RS system without replacing the controller.
• Machine OEM design standardization
OEMs standardize on modular safety platforms for different machine variants.

Procurement Process

To procure the Pilz PNOZ m EF 8DI2DOT I/O Module – 772144:

1. Share application or part number requirements
2. Confirm compatibility with your safety system
3. Receive quotation and delivery timeline
4. Place order and schedule dispatch

For enquiries, use the official contact page:
https://www.indusmegamart.com/contact-us

Common Buyer Concerns Before Ordering

• Compatibility with existing safety controller
• Availability of replacement units for maintenance
• Lead time for urgent breakdown scenarios
• Correct configuration within safety software
• Integration with existing wiring and control panels
Addressing these early helps avoid commissioning delays.

Frequently Asked Questions

What does the Pilz PNOZ m EF 8DI2DOT I/O Module – 772144 do in a safety system?
It expands the number of available safety inputs and outputs within a modular safety controller system. This allows additional sensors and actuators to be integrated without changing the base controller, supporting scalable machine safety architecture.
Is the Pilz PNOZ m EF 8DI2DOT I/O Module – 772144 compatible with all safety controllers?
No. It is designed for specific configurable safety controller platforms. Buyers should verify compatibility with their existing controller model and system configuration before procurement.
Can this module replace a traditional safety relay?
Not directly. It functions as part of a modular safety system rather than as a standalone device. It complements a safety controller rather than replacing independent relay-based safety circuits.
How is the module configured in an automation system?
Configuration is typically done through dedicated safety software associated with the controller. Inputs and outputs are mapped within the safety logic program based on machine requirements.
What type of outputs does this module provide?
The module typically includes safe digital transistor outputs. These outputs are used to control actuators such as contactors or interface relays within a safety circuit.
Is the module suitable for retrofit projects?
Yes. It is commonly used in retrofit scenarios where additional safety inputs and outputs are required without replacing the existing controller infrastructure.
What should be checked before ordering this module?
Key checks include controller compatibility, required I/O count, load requirements, and installation space within the control panel. Procurement teams should align these factors with project specifications.

Request a Quote for Pilz PNOZ m EF 8DI2DOT I/O Module – 772144

Indus Megamart supplies and distributes genuine industrial automation components for project and maintenance requirements.
For pricing, availability, or technical clarification, contact the team with your application details.
