Balluff BNS029N BNS 819-B04-D12-61-12-10-FD Distributor

Indus Megamart supports procurement teams, plant engineers, contractors, OEM maintenance teams, and industrial buyers with sourcing and distribution support for standard catalog requirements.

What is Balluff BNS029N BNS 819-B04-D12-61-12-10-FD?

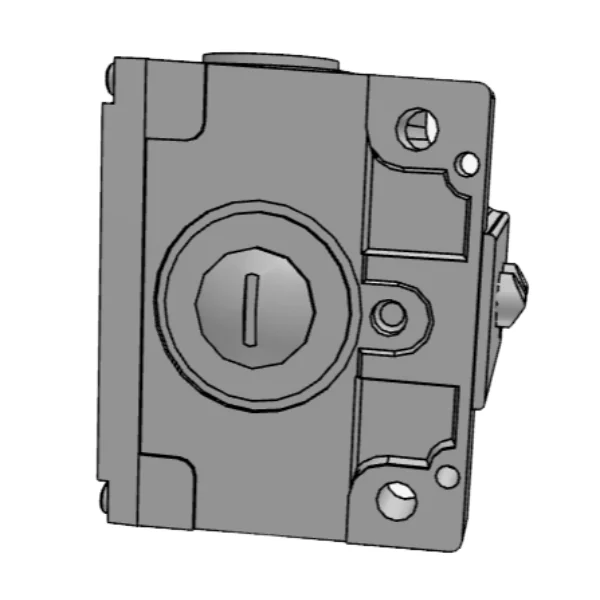

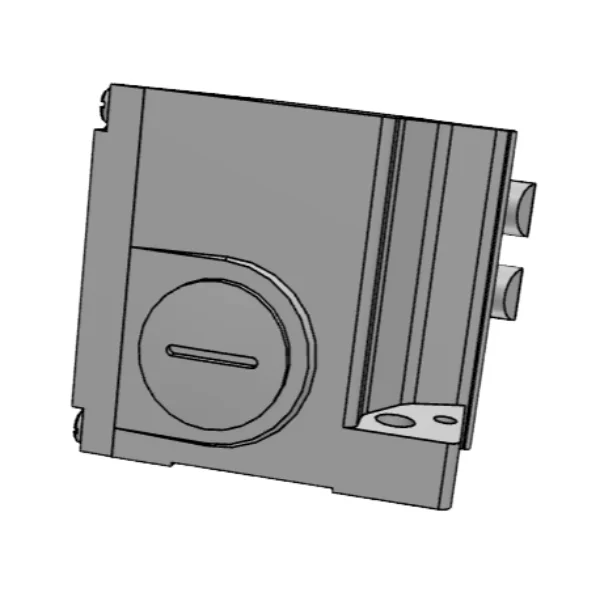

Balluff BNS029N BNS 819-B04-D12-61-12-10-FD is a mechanical multiple position limit switch with four chisel-type switching positions, snap contact operation, screw terminal connection, vertical installation, anodized aluminium housing, IP67 protection, and FD function indicators. It is used where four physical machine positions require direct contact-based confirmation.
This model belongs to the Balluff BNS family of mechanical multiple position limit switches. It is suitable for machines where a cam, carriage, slide, or moving mechanical element must trigger four defined switching points. The chisel-style actuator arrangement makes it relevant for controlled linear or cam-based engagement.
The “FD” suffix is important. It indicates a function-indicator version and should not be ignored during replacement. A non-FD model from the same family may look similar but may differ in depth, visual indication, and replacement suitability. For accurate procurement, buyers should match the full code BNS 819-B04-D12-61-12-10-FD.

Applications of Balluff BNS029N BNS 819-B04-D12-61-12-10-FD

• Four-position cam-based sequencing
  Used where a moving cam must trigger four separate contact points during a controlled machine cycle.
• Machine changeover position confirmation
  Useful in machines where adjustable guides, clamps, heads, or format sections must return to defined mechanical positions.
• Conveyor indexing and transfer systems
  Applied in conveyor stations where pushers, diverters, lifts, or transfer units require reliable mechanical confirmation.
• Packaging and filling equipment
  Suitable for equipment where sealing jaws, forming stations, or indexing mechanisms need direct position feedback.
• Special purpose machine automation
  Used in machines where PLC logic depends on physical confirmation from multiple mechanically actuated positions.
• Maintenance replacement for installed FD versions
  Suitable where the existing machine already uses BNS029N and replacement must retain the FD indicator configuration.

Industries Using Balluff BNS029N BNS 819-B04-D12-61-12-10-FD

Balluff BNS029N is used in industrial automation environments where mechanical position confirmation is part of the original machine design. Relevant industries include automotive component lines, packaging machinery, machine tools, food processing equipment, conveyor automation, assembly systems, and special purpose machine maintenance.
This product is especially relevant where visual function indication helps maintenance teams identify switch actuation during troubleshooting. In high-activity plants, this can reduce confusion during wiring checks, cam adjustment, and machine reset procedures.

Operational Considerations

The main operational consideration is matching the exact FD version. BNS029N is closely related to BNS029M, but the FD version has a different housing depth and function indicator arrangement. A buyer should not select only by switching position count.
Before ordering, verify:

• Full model code on the existing unit
• BNS029N short code
• B04-D12 configuration
• FD suffix requirement
• Four chisel switching positions
• 12 mm switch position spacing
• 79 x 60 x 85.5 mm dimension
• Vertical installation
• Screw terminal connection
• Mechanical cam approach direction
• Control circuit voltage and current compatibility

For replacement jobs, a product label photo and mounted-unit image are strongly recommended.

Customization Options

Indus Megamart supplies and distributes standard catalog products. Custom modification is not offered for this model. If a buyer needs a non-FD version, different actuator type, different number of switch positions, or different dimensional format, the correct standard BNS variant should be selected.
This approach avoids field-level modification and reduces mismatch risk during machine maintenance.

Product Supply & Distribution Capability

Indus Megamart supports industrial buyers with supply and distribution assistance for automation products, electrical components, mechanical switches, and spare requirements. For Balluff BNS029N, buyers can request quotation support for one-time replacement, maintenance stock, or project procurement.
For enquiry, provide:

• Balluff BNS029N
• BNS 819-B04-D12-61-12-10-FD
• Required quantity
• Delivery city and state
• Urgency level
• Product label photo if available
• Existing machine application if compatibility review is required

Supply Across India

Indus Megamart supplies industrial products across India, supporting buyers in Delhi NCR, Pune, Mumbai, Ahmedabad, Bengaluru, Chennai, Hyderabad, Kolkata, and other industrial regions.
For urgent breakdown cases, mention the required dispatch timeline clearly. For planned maintenance, buyers may share shutdown dates so procurement can be aligned with plant activity.

How to Choose the Right Balluff BNS029N BNS 819-B04-D12-61-12-10-FD

Use this checklist before purchase:

• Match the full model number, not only BNS series name
• Confirm the FD suffix
• Check four-position chisel actuator requirement
• Compare dimension with the existing switch
• Confirm B04-D12 configuration
• Verify vertical mounting position
• Confirm screw terminal wiring
• Check approach direction
• Compare cam path and plunger engagement
• Avoid replacing with roller-type variants without review

Supporting cluster pages such as “Mechanical Limit Switch Selection Guide” and “BNS Series Comparison Guide” should link to this product page when explaining FD versus non-FD variants, chisel versus roller actuators, and four-position mechanical sequencing.

Comparison Table

The table below helps buyers compare similar BNS variants before procurement.

Typical Use Case Scenarios

Scenario 1: Four-point motion confirmation with visual indication
A machine needs four mechanical position confirmations and maintenance teams benefit from FD indication during troubleshooting.
Scenario 2: Existing BNS029N replacement
A plant engineer identifies BNS029N on the installed unit and needs the same FD version to avoid wiring, dimension, or indication mismatch.
Scenario 3: Conveyor transfer mechanism feedback
A conveyor system uses mechanical engagement to confirm multiple transfer positions before the PLC allows the next movement.
Scenario 4: Packaging line changeover control
A packaging line uses direct mechanical position feedback to confirm that a format-change mechanism has reached the correct setting.

Procurement Process

For pricing and availability, contact Indus Megamart
For company information, visit:
When submitting an enquiry, mention the complete model code, quantity, delivery location, and urgency. For replacement, attach a product label photo to reduce wrong-part selection risk.

Common Buyer Concerns Before Ordering

A frequent concern is whether BNS029N and BNS029M can be interchanged. They should not be treated as identical. Both are four-position chisel variants, but BNS029N includes the FD suffix and has a different housing depth.
Another concern is whether this product is an inductive sensor. It is a mechanical multiple position limit switch. It requires direct mechanical contact and should be selected based on actuator style, number of switching positions, FD requirement, mounting, and wiring.

FAQ Section

What is Balluff BNS029N used for?

Balluff BNS029N is used for mechanical position feedback where four machine positions must be confirmed through direct contact. Common uses include cam sequencing, packaging machinery, conveyor transfer units, indexing systems, and special purpose machines.

Is BNS029N an inductive sensor?

No. BNS029N is a mechanical multiple position limit switch. It does not detect metal without contact like an inductive sensor. It works when a cam, slide, rail, or moving machine element physically actuates the switch.

What does FD mean in BNS029N?

In this product context, FD refers to the function-indicator version. Buyers should not ignore the FD suffix because it can affect housing depth, visual indication, and replacement suitability compared with non-FD versions.

Can BNS029N replace BNS029M?

Not automatically. BNS029N is the FD version and has a different dimension from BNS029M. Replacement should be based on the full model code, machine mounting space, wiring, and whether FD indication is required.

What should I check before ordering BNS029N?

Check the complete model number, FD suffix, switching positions, actuator type, dimension, screw terminal connection, approach direction, and installed machine layout. A label photo from the existing switch helps confirm the correct variant.

Does Indus Megamart supply BNS029N across India?

Yes. Indus Megamart supplies and distributes industrial automation products across India. Buyers can submit enquiries for project purchases, maintenance replacement, and spare stock requirements.

Is customization available for this product?

No. Indus Megamart supplies standard catalog products. If another actuator type, size, suffix, or switching configuration is needed, the correct standard product variant should be selected instead of modifying BNS029N.

Request a Quote for Balluff BNS029N BNS 819-B04-D12-61-12-10-FD

Indus Megamart supplies and distributes Balluff BNS029N BNS 819-B04-D12-61-12-10-FD for industrial buyers across India. For pricing, availability, and dispatch support, submit your enquiry through contact us with the full model code, quantity, and delivery location.
