Balluff BNS028R BNS 819-B03-D16-61-16-10 Distributor

This page is structured for procurement teams and engineers who need exact-code replacement, application suitability, and supply clarity before enquiry.

What is Balluff BNS028R BNS 819-B03-D16-61-16-10?

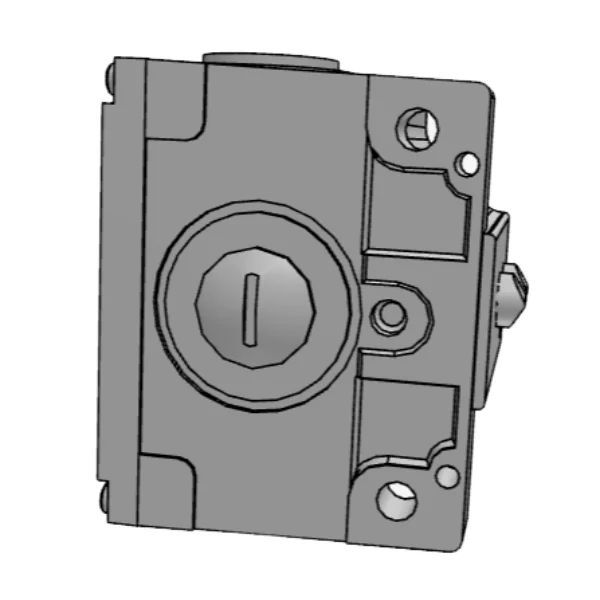

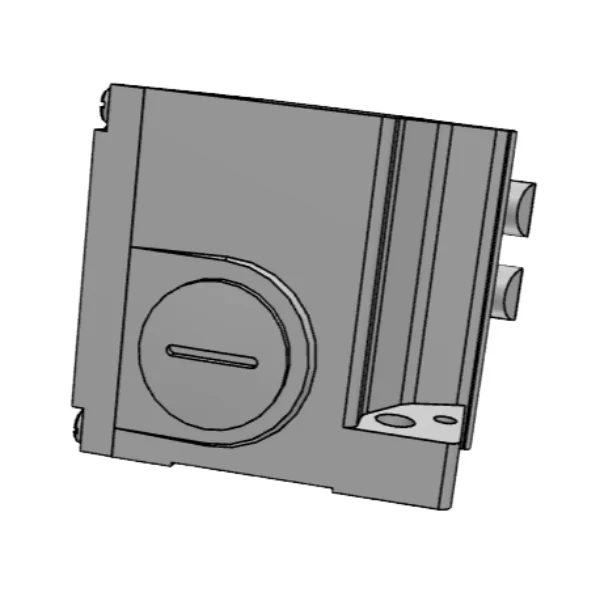

Balluff BNS028R BNS 819-B03-D16-61-16-10 is a mechanical multiple position limit switch with three chisel switching positions, snap contact operation, vertical installation, screw terminal connection, 16 mm switch position spacing, and IP67 protection. It is used for direct cam-actuated position confirmation in industrial machines.
Although the project category mentions inductive sensor, this specific product is a mechanical multiple position limit switch. It does not detect metal without contact like an inductive proximity sensor. It confirms position when a moving machine element, cam, rail, stopper, or slide physically actuates the chisel switching positions.
This model is relevant where the machine has already been designed around direct mechanical position feedback. The 16 mm switch position spacing and 72 mm housing width are important selection points because nearby BNS models may look similar but may not fit the same mounting layout.

Applications of Balluff BNS028R BNS 819-B03-D16-61-16-10

• Cam-operated position confirmation
  Used where a moving cam must trigger three separate switching points during a controlled motion sequence.
• Conveyor indexing systems
  Suitable for confirming stopper, diverter, or guide positions before the conveyor control system allows the next movement.
• Packaging machine adjustment feedback
  Used in machines where mechanical guides, format parts, or positioning plates must reach defined settings before production resumes.
• Machine tool auxiliary movement
  Useful for confirming the position of covers, slides, guards, clamps, or auxiliary units in machine tool environments.
• Assembly fixture sequencing
  Can support multi-step fixture confirmation where clamps, locating pins, or support blocks move through defined mechanical stages.
• Replacement in existing BNS installations
  Best suited where the installed switch label matches BNS 819-B03-D16-61-16-10 and the machine design uses 16 mm switching position spacing.

Industries Using Balluff BNS028R BNS 819-B03-D16-61-16-10

This product is used in industrial environments where direct mechanical feedback is part of the machine design. Typical users include automotive component plants, conveyor integrators, packaging machine users, assembly automation contractors, machine tool maintenance teams, material handling system operators, and industrial plant service departments.
For maintenance teams, exact model identification is important. A similar BNS switch with 12 mm spacing, FD suffix, different housing width, or different actuator arrangement may not work as a direct replacement.

Operational Considerations

The most important operational factor is whether the existing machine uses 16 mm switch position spacing. A wrong spacing value can shift the switching point and create signal mismatch in the control sequence. This may cause unexpected machine stops, delayed actuation, incorrect PLC feedback, or repeated adjustment work during installation.
Before ordering, verify:

• Complete model code on the installed switch
• 3-position chisel actuator requirement
• 16 mm switch position spacing
• 79 x 72 x 63 mm housing clearance
• Vertical mounting arrangement
• Longitudinal approach direction
• Screw terminal wiring requirement
• Mechanical cam alignment
• Electrical load compatibility
• Exposure to oil, coolant, dust, moisture, vibration, or heat

Mechanical switches are dependable when the actuator and cam path are aligned correctly. Misalignment can cause contact stress, irregular switching, actuator wear, or repeat maintenance complaints.

Customization Options

Indus Megamart supplies and distributes standard catalog products and does not customize this model. If the application needs a different spacing, housing width, FD suffix, actuator format, or number of switch positions, the correct standard catalog variant should be selected instead of altering the product.

Product Supply & Distribution Capability

Indus Megamart supports industrial buyers with procurement assistance for automation spares, replacement requirements, and project-based sourcing. The company can support enquiries for single-unit replacement, planned shutdown inventory, or repeat plant procurement across India.
For faster response, share:

• Full product code
• Quantity required
• Delivery location
• Existing product photograph
• Machine or panel application
• Urgency or shutdown timeline

Supply Across India

Indus Megamart supplies industrial products across India, including major procurement regions such as Delhi NCR, Pune, Mumbai, Ahmedabad, Chennai, Bengaluru, Hyderabad, Kolkata, and other industrial clusters.
For multi-location plants, the exact model code should be used in purchase documentation. This avoids confusion between BNS028R, BNS0283, BNS0284, BNS0287, BNS0288, and other visually similar BNS series switches.

How to Choose the Right Balluff BNS028R BNS 819-B03-D16-61-16-10

Use this buyer checklist:

• Confirm the full model code: BNS 819-B03-D16-61-16-10
• Verify the short code: BNS028R
• Confirm three chisel switching positions
• Check 16 mm switch position spacing
• Confirm dimension: 79 x 72 x 63 mm
• Verify vertical installation
• Confirm screw terminal connection
• Check cam approach direction
• Match the housing width with the installed switch
• Confirm the machine does not require an FD variant
• Share product images before ordering replacement stock

Supporting cluster pages such as “Mechanical Limit Switch Selection Guide” and “Mechanical Limit Switch Installation Guide” should link to this product page where buyers compare chisel, roller, FD, non-FD, 12 mm, and 16 mm spacing variants.

Comparison Table

Typical Use Case Scenarios

Scenario 1: Three-position cam sequence
A machine cam actuates three switching points during one movement cycle. The switch confirms the sequence before the controller allows the next operation.
Scenario 2: Conveyor gate feedback
A conveyor system uses mechanical feedback to confirm diverter or gate positions. The switch helps prevent incorrect downstream movement.
Scenario 3: Machine tool auxiliary confirmation
A slide, guard, or clamping element must be confirmed mechanically because the original machine design uses direct-contact feedback.
Scenario 4: Planned shutdown replacement
A maintenance team orders the exact BNS028R code before shutdown so the replacement fits the existing bracket, cam path, and wiring arrangement.

Procurement Process

For pricing and availability, contact Indus Megamart
For company information, visit:
To avoid delays, include the complete model code, quantity, delivery city, and a photo of the existing product label when sending an enquiry.

Common Buyer Concerns Before Ordering

A frequent concern is whether another BNS series product can be used in place of BNS028R. Replacement should not be based only on appearance. The full model code, switching position spacing, actuator style, suffix, body dimension, and mounting direction must match the machine requirement.
Another concern is product classification. This product is not an inductive sensor. It is a mechanical multiple position limit switch used where the machine physically actuates the switch.

FAQ Section

What is Balluff BNS028R used for?

Balluff BNS028R is used for mechanical position confirmation in industrial machines. It helps detect three defined positions in cam-operated systems such as conveyors, packaging machines, machine tool auxiliaries, assembly fixtures, and material handling equipment.

Is BNS028R an inductive sensor?

No. BNS028R is a mechanical multiple position limit switch. It requires physical actuation by a cam, rail, slide, or moving machine element, unlike an inductive sensor that detects metallic targets without contact.

What does 3x chisel mean in BNS028R?

3x chisel means the switch has three chisel-style mechanical switching positions. This is useful where one machine movement needs three separate position signals along a defined travel path.

Why is 16 mm switch position spacing important?

The 16 mm spacing defines the distance between switching positions. If the replacement switch has a different spacing, the machine cam may actuate the wrong point, causing signal timing errors or installation difficulty.

Can BNS028R replace BNS0287 or BNS0288?

Only after technical verification. BNS028R has a 16 mm spacing and a specific model code, while BNS0287 and BNS0288 are different variants. Always compare the complete code and machine mounting requirements.

What details should I share for quotation?

Share the full model code, required quantity, delivery location, and urgency. For replacement enquiries, include a clear image of the existing switch label and installation area.

Does Indus Megamart customize this product?

No. Indus Megamart supplies and distributes standard catalog products. If your machine requires another actuator style, spacing, suffix, or housing arrangement, the correct standard variant should be selected.

Request a Quote for Balluff BNS028R BNS 819-B03-D16-61-16-10

Indus Megamart supplies and distributes Balluff BNS028R BNS 819-B03-D16-61-16-10 for industrial buyers across India. For pricing, availability, and dispatch support, submit your enquiry through contact us with the complete product code.
