Balluff BNS028N BNS 819-B03-D12-61-24-10 Distributor

This page helps procurement teams and engineers evaluate suitability before raising a quotation enquiry.

What is Balluff BNS028N BNS 819-B03-D12-61-24-10?

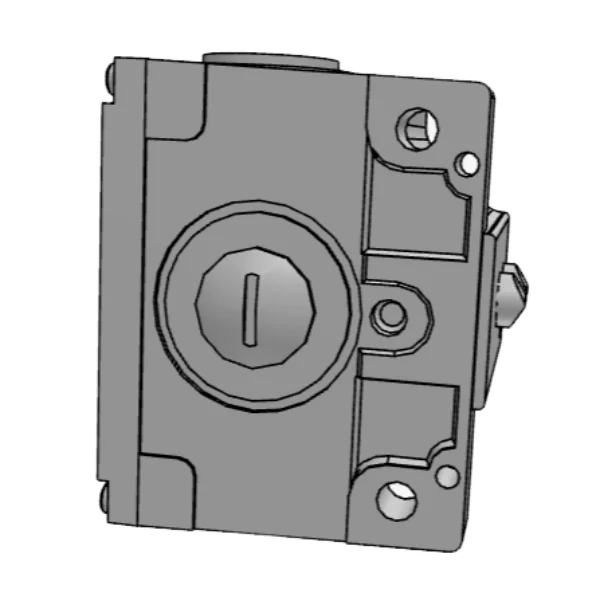

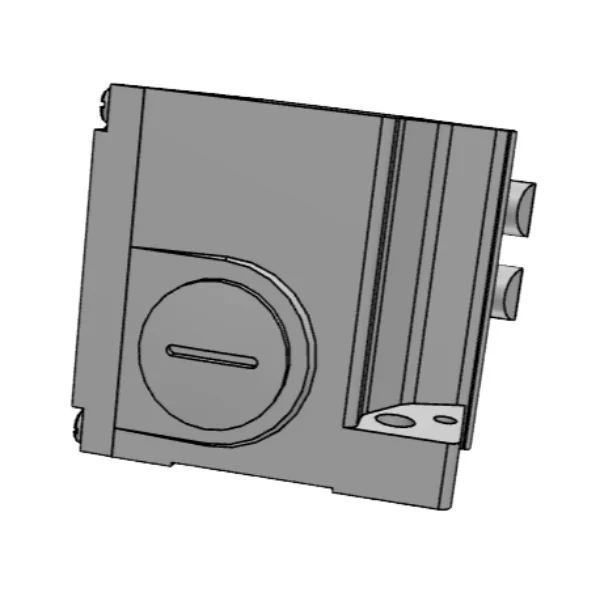

Balluff BNS028N BNS 819-B03-D12-61-24-10 is a mechanical multiple position limit switch with three chisel switching positions, snap contact operation, vertical installation, screw terminal connection, 12 mm switch position spacing, and IP67 protection. It is used for physical position confirmation in cam-operated industrial machines.
Although the input category mentions inductive sensor, this specific model is a mechanical position switch, not a non-contact inductive sensor. It works when a moving cam, rail, slide, stopper, or machine element physically actuates the switch.
The 24 code segment makes this model different from the nearby BNS0287 and BNS0288 variants. BNS028N has a 79 x 60 x 63 mm body size, while similar three-position BNS models may have a different housing width or suffix. That difference matters during replacement because mounting clearance and machine layout may be affected.

Applications of Balluff BNS028N BNS 819-B03-D12-61-24-10

• Three-step machine position confirmation
  Used where a guided mechanism must confirm three physical positions during one operating sequence. This may include slides, stops, locating plates, or transfer units.
• Packaging machine changeover feedback
  Format-change systems often use mechanical stops and guide adjustment. This switch can confirm whether the machine element has reached the required indexed position.
• Conveyor stopper and diverter sequencing
  In material handling lines, mechanical position switches help verify stopper, gate, or pusher movement before the next control signal is released.
• Machine tool auxiliary mechanisms
  Doors, slides, covers, auxiliary arms, and clamping mechanisms may require direct mechanical confirmation where the original machine design uses cam actuation.
• Assembly fixture control
  Fixtures may use multiple position checks for clamp movement, locating pins, or support plates before inspection, pressing, welding, or assembly starts.
• Maintenance replacement in existing BNS installations
  Where the existing label reads BNS 819-B03-D12-61-24-10, exact-code replacement helps avoid mounting mismatch, wiring confusion, and PLC troubleshooting.

Industries Using Balluff BNS028N BNS 819-B03-D12-61-24-10

This product is suitable for industrial environments where physical position feedback is already part of the machine design. Typical users include automotive component plants, packaging machinery users, conveyor system operators, machine tool maintenance teams, assembly automation contractors, material handling integrators, and industrial plant service teams.
It is especially relevant in machines where a non-contact sensor cannot be substituted without redesigning the cam path, bracket position, control sequence, or wiring logic.

Operational Considerations

The main operational check is whether the machine needs three chisel switching positions with 12 mm spacing and a 60 mm body width. If an older switch has a narrower housing or a different suffix, the replacement may not fit cleanly in the same space.
Before ordering, verify:

• Complete model code on the installed switch
• Three-position switching requirement
• Chisel actuator compatibility
• 12 mm switch position spacing
• 79 x 60 x 63 mm mounting clearance
• Vertical installation layout
• Longitudinal approach direction
• Screw terminal wiring access
• Electrical load compatibility
• Exposure to oil, coolant, dust, moisture, vibration, or heat

A mechanical limit switch is reliable when the cam path is aligned correctly. Poor alignment may cause late switching, contact stress, inconsistent machine signals, or premature actuator wear.

Customization Options

Indus Megamart supplies and distributes standard catalog products and does not customize this model. If the machine requires a roller actuator, fewer switching positions, a different housing width, an FD variant, or another spacing arrangement, buyers should select the correct catalog variant rather than modifying the switch.

Product Supply & Distribution Capability

Indus Megamart supports procurement enquiries for industrial automation spares, replacement parts, and project requirements. Buyers can raise enquiries for single-unit replacement, maintenance stock, or planned shutdown procurement.
For faster processing, share:

• Full model code
• Required quantity
• Delivery location
• Existing product image
• Machine or application type
• Urgency or shutdown timeline

Supply Across India

Indus Megamart supplies industrial products across India, supporting buyers in Delhi NCR, Pune, Mumbai, Ahmedabad, Chennai, Bengaluru, Hyderabad, Kolkata, and other industrial regions.
For multi-plant procurement, exact code matching is important because nearby BNS variants can look similar but differ in housing size, suffix, actuator layout, or spacing.

How to Choose the Right Balluff BNS028N BNS 819-B03-D12-61-24-10

Use this checklist before ordering:

• Confirm the full model: BNS 819-B03-D12-61-24-10
• Verify BNS028N on the label
• Confirm three chisel switching positions
• Check 12 mm switch position spacing
• Confirm body dimension of 79 x 60 x 63 mm
• Verify vertical mounting
• Confirm screw terminal connection
• Check cam approach direction
• Compare with the existing switch suffix
• Confirm the machine does not require an FD variant
• Share a product photo for replacement validation

Supporting cluster pages such as “Mechanical Limit Switch Selection Guide” and “Mechanical Limit Switch Installation Guide” should link to this product page for buyers comparing chisel, roller, FD, non-FD, two-position, and three-position BNS models.

Comparison Table

Typical Use Case Scenarios

Scenario 1: Wider replacement envelope
A plant has a machine using BNS 819-B03-D12-61-24-10. The 60 mm housing width must match the original installation space.
Scenario 2: Three-position cam rail
A cam rail actuates three switch positions during a short travel cycle. The switch confirms each mechanical stage for the control system.
Scenario 3: Packaging line adjustment
A packaging machine uses mechanical feedback to verify format setting. The switch confirms the adjustment position before production restarts.
Scenario 4: Shutdown spare procurement
Maintenance teams source the exact model before planned shutdown to avoid last-minute fitment issues.

Procurement Process

For pricing and availability, contact Indus Megamart
For company information, visit:
Include the complete model code, quantity, delivery city, and application details when submitting an enquiry.

Common Buyer Concerns Before Ordering

A common concern is whether BNS028N can be replaced by BNS0287 or BNS0288. The answer depends on housing width, suffix, mounting clearance, and the original machine arrangement. Even if the switching positions and spacing appear similar, the product code should be matched carefully.
Another concern is product classification. This item is a mechanical multiple position limit switch, not an inductive proximity sensor. It should be selected for physical cam-actuated position confirmation.

FAQ Section

What is Balluff BNS028N used for?

Balluff BNS028N is used for mechanical position confirmation in industrial machines. It helps detect three defined positions in cam-operated systems such as conveyor stoppers, packaging adjustments, assembly fixtures, machine slides, and auxiliary machine movements.

Is BNS028N an inductive sensor?

No. BNS028N is not an inductive sensor. It is a mechanical multiple position limit switch that operates through physical contact with a cam or moving machine part.
What does 3x chisel mean in this product?
3x chisel means the product has three chisel-style mechanical switching positions. This is useful where a machine requires three separate position confirmations along a controlled travel path.

Can BNS028N replace BNS0287?

Only after verification. Both are related three-position chisel switches, but the product codes and dimensions differ. Buyers should match the full model code, housing size, suffix, mounting space, and machine cam path before replacement.

Why is the 61-24-10 code important?

The 61-24-10 code helps identify the exact product variant. In BNS series switches, small code differences can indicate changes in body size, configuration, or application fit. Exact-code ordering reduces replacement errors.

What details should I share for quotation?

Share the full model code, required quantity, delivery location, and application. For replacement enquiries, also share a clear photo of the existing label and installation area.

Does Indus Megamart customize this product?

No. Indus Megamart supplies and distributes standard catalog products. If another actuator style, housing size, switching position count, or suffix is required, the correct standard variant should be selected.

Request a Quote for Balluff BNS028N BNS 819-B03-D12-61-24-10

Indus Megamart supplies and distributes Balluff BNS028N BNS 819-B03-D12-61-24-10 for industrial buyers across India. For pricing, availability, and dispatch support, submit your enquiry through https://www.indusmegamart.com/contact-us with the complete product code.
