Balluff BNS0287 BNS 819-B03-D12-61-12-10 Distributor

This page is written for procurement teams, plant engineers, contractors, and maintenance buyers who need to verify model suitability before raising a quotation enquiry.

What is Balluff BNS0287 BNS 819-B03-D12-61-12-10?

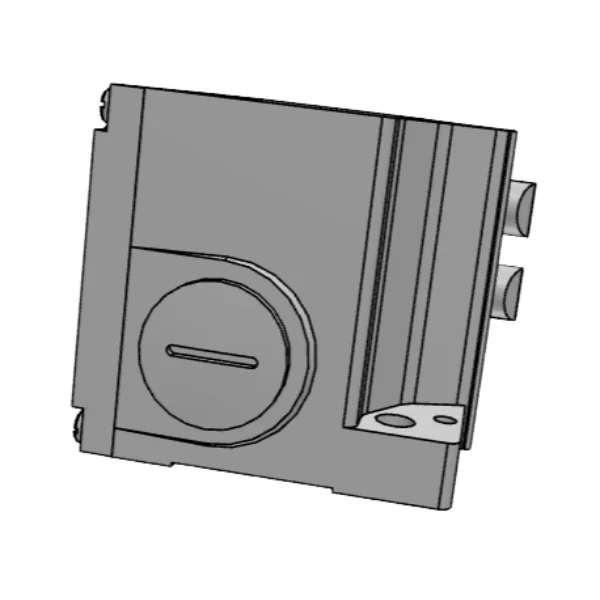

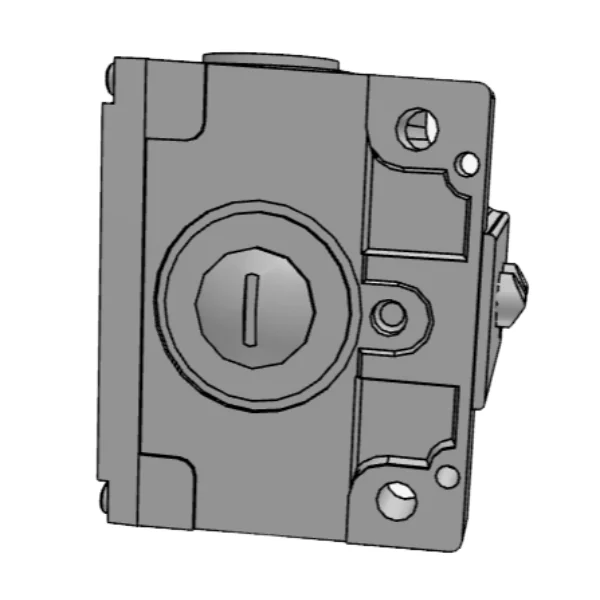

Balluff BNS0287 BNS 819-B03-D12-61-12-10 is a mechanical multiple position limit switch with three chisel switching positions, snap contact operation, vertical mounting, screw terminal connection, and 12 mm switch position spacing. It is used for physical position confirmation in industrial machines where cam-actuated feedback is required.
This product is not a non-contact inductive sensor. It belongs to the mechanical position switch category, where a moving machine part, cam, guide, slide, or actuator physically engages the switch mechanism. The three chisel positions make it useful in machines that need staged feedback across a short mechanical travel path.
For maintenance buyers, the complete product code matters. Similar BNS models may differ in actuator shape, number of switching positions, approach speed, spacing, connection type, or housing height. Ordering by partial code can lead to incorrect fitment even when the switch appears visually similar.

Applications of Balluff BNS0287 BNS 819-B03-D12-61-12-10

• Multi-stage machine travel confirmation
  Used where a moving component must confirm three defined positions during one travel cycle. This may apply to indexed movement, sliding mechanisms, or guided mechanical assemblies.
• Packaging format adjustment systems
  Packaging machines often use adjustable stops, guide rails, and format-change mechanisms. BNS0287 helps confirm whether the mechanism has reached the required mechanical step.
• Conveyor indexing and stopper control
  In conveyor systems, the switch can confirm sequential stopper, gate, or pusher positions before the next control action is released.
• Machine tool auxiliary motion
  Covers, auxiliary slides, transfer arms, and positioning stops may need physical position feedback. A mechanical multiple position limit switch is suitable where the original design depends on direct cam contact.
• Assembly fixture sequencing
  Fixtures may need confirmation of clamp, locator, or support positions before machining, pressing, inspection, or assembly starts.
• Spare replacement for existing BNS installations
  Where the installed code is BNS 819-B03-D12-61-12-10, exact-code replacement helps reduce wiring changes, mounting uncertainty, and commissioning delay.

Industries Using Balluff BNS0287 BNS 819-B03-D12-61-12-10

This product is used in industrial environments where direct mechanical confirmation is preferred or already built into the machine. Common users include automotive component plants, machine tool users, packaging lines, conveyor equipment operators, industrial automation contractors, material handling systems, fixture builders, and plant maintenance teams.
It is especially relevant for older or proven machines where cam-based feedback remains part of the control architecture. In such machines, replacing a mechanical switch with another sensing principle may require redesign. Exact product-code matching is usually the safer route.

Operational Considerations

The key selection point for this model is the combination of three chisel switching positions and 12 mm spacing. The machine cam or actuating surface must match this geometry. If the switch is installed where a roller model was originally used, the actuation behavior may not match. Similarly, a two-position model cannot replace a three-position model without affecting the machine sequence.
Buyers should verify:

• Exact product code on the existing unit
• Three-position switching requirement
• Chisel actuator compatibility
• 12 mm switch position spacing
• Vertical installation space
• Approach direction and cam path
• Screw terminal wiring access
• Electrical load and control voltage
• Environmental exposure such as oil mist, coolant, dust, heat, and vibration
• Clearance around moving parts

Mechanical switches are practical and proven, but they depend on correct alignment. Excessive cam force, poor mounting, or misaligned actuation can lead to unreliable switching and premature wear.

Customization Options

Indus Megamart supplies and distributes standard catalog products and does not customize this model. Buyers requiring another actuator type, wider spacing, roller plunger, different number of switching positions, or different connection arrangement should select the correct catalog variant instead of modifying the switch.
For replacement enquiries, share the full code BNS 819-B03-D12-61-12-10 along with a photo of the existing switch label.

Product Supply & Distribution Capability

Indus Megamart supports supply and distribution of industrial automation products for maintenance teams, OEM buyers, project contractors, and procurement departments. The company can support enquiry-based sourcing for single-unit replacement, spare planning, or project quantity requirements.
For faster response, provide:

• Complete model code
• Required quantity
• Delivery location
• Application or machine type
• Urgency
• Existing product image, if available

Supply Across India

Indus Megamart supplies industrial products across India, including major industrial locations such as Delhi NCR, Pune, Mumbai, Ahmedabad, Chennai, Bengaluru, Hyderabad, Kolkata, and other manufacturing regions.
For multi-location plants, correct model identification is important because BNS series variants can appear similar but differ in actuation layout and switch spacing.

How to Choose the Right Balluff BNS0287 BNS 819-B03-D12-61-12-10

Use this checklist before ordering:

• Confirm full code: BNS 819-B03-D12-61-12-10
• Verify BNS0287 marking
• Confirm three chisel switching positions
• Match 12 mm switch position spacing
• Check vertical installation requirement
• Confirm screw terminal connection
• Verify approach direction
• Compare dimensions with existing mounting space
• Check electrical rating against control panel requirement
• Confirm that a roller variant is not required
• Share the installed label if buying for replacement

Supporting cluster pages such as “Mechanical Limit Switch Selection Guide” and “Mechanical Limit Switch Installation Guide” should link to this page where buyers compare chisel, roller, two-position, and three-position BNS variants.

Comparison Table

Typical Use Case Scenarios

Scenario 1: Three-step slide movement
A guided slide has three feedback points in a short travel distance. BNS0287 can support position confirmation where the cam path matches the 12 mm spacing.
Scenario 2: Packaging adjustment rail
A format rail has several mechanical stops. The switch confirms step-by-step movement before the next machine action.
Scenario 3: Indexing fixture
An assembly fixture requires confirmation at three mechanical points before clamping or inspection begins.
Scenario 4: Maintenance replacement
A plant technician identifies the installed switch as BNS0287. Ordering the same model helps avoid bracket changes and PLC sequence troubleshooting.

Procurement Process

For pricing and availability, contact Indus Megamart through:
For company information, visit:
When raising an enquiry, include the full model code, quantity, delivery city, and application details.

Common Buyer Concerns Before Ordering

A frequent concern is whether BNS0287 can be replaced by a visually similar BNS model. The answer depends on switching positions, actuator shape, spacing, and connection. A three-position chisel model should not be replaced with a two-position or roller model unless the machine design allows it.
Another concern is terminology. Although the input category mentions inductive sensor, this specific Balluff item is a mechanical multiple position limit switch. The product should be selected for cam-actuated physical feedback.

FAQ Section

What is Balluff BNS0287 used for?

Balluff BNS0287 is used for mechanical position feedback in industrial machines. It confirms three defined positions through chisel-style actuation and is suitable for machine slides, indexing units, packaging adjustment mechanisms, conveyor controls, and assembly fixtures.

Is BNS0287 an inductive sensor?

No. BNS0287 is a mechanical multiple position limit switch. It works through physical contact, not non-contact inductive detection. It should be used where the machine design requires cam-actuated feedback.

What does 3x chisel mean in this product?

3x chisel means the switch has three chisel-style mechanical switching positions. This makes it suitable for applications where three separate positions must be detected along a controlled mechanical path.

Can BNS0287 replace a roller-type BNS switch?

Not usually without verification. Chisel and roller actuators respond differently to the machine cam. Buyers should confirm the original switch code, actuator shape, mounting position, and cam approach before replacement.

What details are required for quotation?

Share the full product code, quantity, delivery location, and application. For replacement orders, include a photo of the existing switch label and the machine area where it is installed.

Does Indus Megamart customize this product?

No. Indus Megamart supplies and distributes standard catalog products. If a different actuator, switching position count, or spacing is required, the correct catalog variant should be selected.

Why is switch position spacing important?

Switch position spacing determines where each switching point occurs along the machine travel path. If spacing does not match the cam movement, the control system may receive signals too early, too late, or not at all.

Request a Quote for Balluff BNS0287 BNS 819-B03-D12-61-12-10

Indus Megamart supplies and distributes Balluff BNS0287 BNS 819-B03-D12-61-12-10 for industrial buyers across India. For pricing, availability, and dispatch support, submit your enquiry through https://www.indusmegamart.com/contact-us with the complete product code.
