Balluff BNS0284 BNS 819-B02-R16-61-16-10-FD Distributor

This page helps procurement and engineering buyers evaluate fitment, wiring, switch spacing, and replacement suitability before raising an enquiry.

What is Balluff BNS0284 BNS 819-B02-R16-61-16-10-FD?

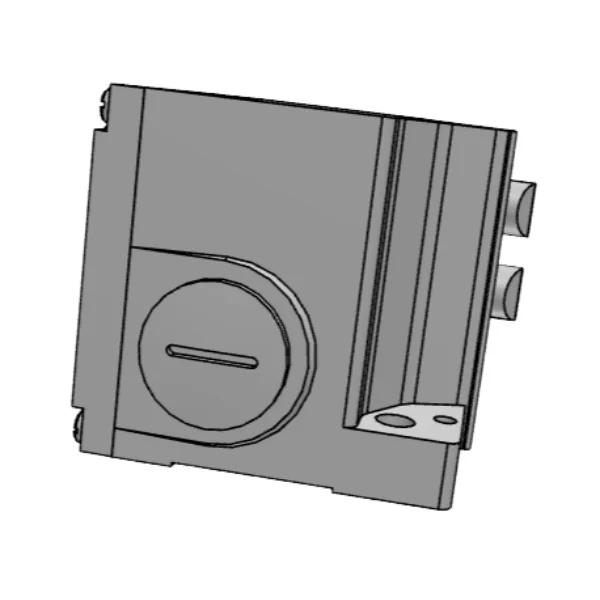

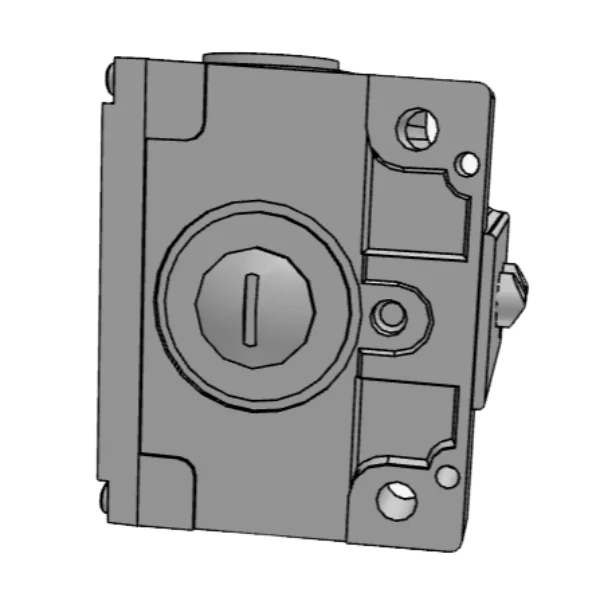

Balluff BNS0284 BNS 819-B02-R16-61-16-10-FD is a mechanical multiple position limit switch with two roller switching positions, snap contact operation, vertical installation, screw terminal connection, and 16 mm switch position spacing. It is used to verify machine movement where physical cam actuation is preferred over non-contact sensing.
This product belongs to the mechanical limit switch family rather than a non-contact inductive sensor category. The switch is selected when the machine already uses a cam, lever, slide, stop, or indexing mechanism that physically engages the roller. Its role is to convert a defined mechanical position into an electrical switching signal for control systems.
The “FD” suffix makes this model important in replacement situations because buyers must confirm the exact installed code, not only the visible housing style. Similar BNS models may look close but differ in connection execution, actuator arrangement, spacing, or installation geometry.

Applications of Balluff BNS0284 BNS 819-B02-R16-61-16-10-FD

• Cam-operated two-position feedback
  Used where a moving cam must trigger two switching points during a controlled travel path. The 16 mm spacing supports applications where the machine movement requires a wider distance between feedback points.
• Conveyor stop and pusher confirmation
  In conveyor automation, stops, pushers, and diverter arms need confirmation before the next sequence begins. This product helps verify whether the mechanism has reached the required position.
• Packaging machine motion control
  Packaging machines use guide plates, indexing arms, gates, and transfer stops. A mechanical multiple position limit switch can provide dependable feedback where the movement is repetitive and physically guided.
• Assembly fixture sequencing
  Fixtures often require confirmation of clamp, locator, or support arm position. BNS0284 can support sequencing where two mechanical positions must be detected in one compact switch arrangement.
• Machine tool auxiliary movement
  Covers, feed slides, indexing tables, and auxiliary units may require mechanical confirmation before operation continues. The switch is useful where physical contact feedback remains part of the machine design.
• Retrofit and spare replacement
  For machines already using BNS 819-B02-R16-61-16-10-FD, ordering the exact model helps reduce bracket changes, wiring uncertainty, and commissioning delays.

Industries Using Balluff BNS0284 BNS 819-B02-R16-61-16-10-FD

This product is used in automation environments where motion must be confirmed mechanically. Common user groups include automotive component plants, packaging lines, conveyor equipment users, machine tool service teams, assembly automation integrators, material handling contractors, and maintenance departments.
It is especially relevant in plants where existing machines use cam-based mechanical feedback. In such cases, changing to a different switch type may require machine modification. Exact product-code replacement is usually safer for maintenance procurement.

Operational Considerations

Selection should begin with the machine’s mechanical layout. The 16 mm switch position spacing must match the cam path and movement distance. If the machine was designed around 12 mm spacing or another actuator layout, switching may occur too early, too late, or not consistently.
Buyers should check:

• Cam approach direction
• Roller contact path
• Mounting surface and vertical installation requirement
• Screw terminal wiring access
• Existing switch code and label
• Cable routing space
• Control voltage and current requirement
• Exposure to coolant, oil mist, dust, vibration, and impact
• Available clearance around the moving mechanism

A mechanical switch can be very practical in existing machines, but it depends on correct alignment. Poor cam contact, excessive pressure, or off-angle actuation may shorten service life.

Customization Options

Indus Megamart supplies standard catalog products and does not customize this item. Buyers needing another actuator arrangement, spacing, contact configuration, or connection style should select the correct catalog variant instead of modifying the product.
Configuration should be finalized by checking the machine drawing, installed switch label, and control panel wiring. For replacement orders, the full model code BNS 819-B02-R16-61-16-10-FD should be shared.

Product Supply & Distribution Capability

Indus Megamart supplies and distributes this product for industrial buyers across India. The company supports enquiry-based sourcing for automation spares, plant maintenance requirements, and project procurement.
For accurate quotation, buyers should provide:

• Complete model code
• Required quantity
• Delivery city
• Application or machine type
• Urgency of requirement
• Existing switch image, if available

Supply Across India

Indus Megamart supports Pan India supply for industrial automation and control components. Enquiries can be raised from Delhi NCR, Pune, Mumbai, Ahmedabad, Chennai, Bengaluru, Hyderabad, Kolkata, and other industrial regions.
For multi-plant maintenance teams, exact part-code ordering helps standardize spares and avoid mismatches between similar BNS variants.

How to Choose the Right Balluff BNS0284 BNS 819-B02-R16-61-16-10-FD

Use this buyer checklist before ordering:

• Confirm the full code: BNS 819-B02-R16-61-16-10-FD
• Verify 2 roller switching positions
• Confirm 16 mm switch position spacing
• Match approach direction with the machine cam
• Check vertical mounting requirement
• Confirm screw terminal connection
• Verify voltage and current rating
• Compare dimensions with available mounting space
• Check whether the FD variant matches the existing installation
• Share the existing switch label for replacement enquiries

Supporting pages such as “Mechanical Limit Switch Selection Guide” and “Limit Switch Installation Guide” should link to this product page for buyers comparing BNS variants.

Comparison Table

Typical Use Case Scenarios

Scenario 1: Packaging line changeover mechanism
A format change mechanism requires confirmation at two defined points. BNS0284 may be suitable where the existing cam path matches 16 mm spacing.
Scenario 2: Conveyor pusher assembly
A pusher moves between rest and active positions. The switch confirms movement before the next conveyor sequence begins.
Scenario 3: Fixture clamp movement
A fixture clamp or locator must be verified before the assembly cycle continues. Mechanical roller actuation provides direct feedback from the moving part.
Scenario 4: Maintenance replacement
A plant team finds the installed switch label showing BNS0284. Ordering the same product helps avoid changes to wiring, mounting, or PLC sequence logic.

Procurement Process

To request pricing and availability, contact Indus Megamart through:
For company information, visit:
Include product code, quantity, delivery location, and application details. For replacement, include the installed switch photo.

Common Buyer Concerns Before Ordering

A common concern is whether BNS0284 can be replaced with BNS0283. Since both are close variants, buyers may assume interchangeability. The safer approach is to match the complete product code, especially the FD suffix.
Another concern is whether this is an inductive sensor. It is not. It is a mechanical multiple position limit switch. It should be selected where physical roller actuation is required.

FAQ Section

What is Balluff BNS0284 used for?

Balluff BNS0284 is used for mechanical position feedback in industrial machines. It confirms two defined positions through roller actuation and is commonly used in conveyor stops, packaging equipment, machine slides, assembly fixtures, and replacement applications.

Is BNS0284 an inductive sensor?

No. BNS0284 is a mechanical multiple position limit switch. It works through physical contact between the machine cam and roller actuator. It should not be selected as a non-contact inductive sensing replacement.

What does 16 mm switch position spacing mean?

The 16 mm spacing refers to the distance between the two switching positions. This matters because the machine cam travel must match the switch geometry. If spacing is incorrect, switching timing may be affected.

Can BNS0284 replace BNS0283?

Not automatically. Both are close variants, but the full model code should be checked before replacement. The FD suffix can indicate a specific configuration requirement, so buyers should match the installed code.

What details are needed for quotation?

Share the complete product code, quantity, delivery city, application type, and required timeline. For replacement enquiries, a photo of the existing switch label helps confirm the correct variant.

Does Indus Megamart customize this product?

No. Indus Megamart supplies and distributes standard catalog products. If another actuator type, spacing, or connection style is required, buyers should choose a suitable catalog variant.

Is this product suitable for harsh industrial areas?

The product is designed for industrial use, but suitability depends on the actual environment. Check exposure to dust, coolant, oil, vibration, impact, and temperature before purchase.

Request a Quote for Balluff BNS0284 BNS 819-B02-R16-61-16-10-FD

Indus Megamart supplies and distributes Balluff BNS0284 BNS 819-B02-R16-61-16-10-FD for industrial buyers across India. For pricing, availability, and dispatch support, submit your enquiry through https://www.indusmegamart.com/contact-us with the complete product code.
